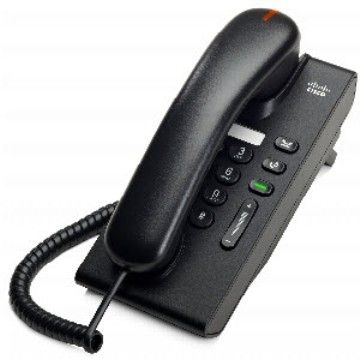

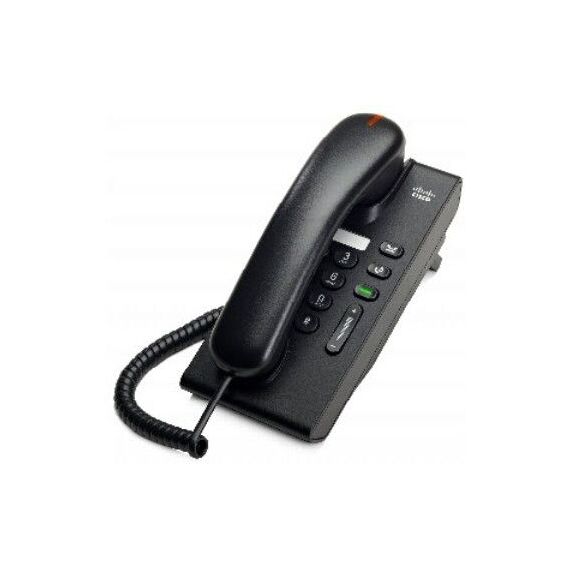

Cisco Unified IP Phone 6901 Slimline - SCCP - charcoal

Cisco CP-6901-CL-K9= Cisco Unified IP Phone 6901 Slimline - SCCP - charcoal

Cisco Unified IP Phone 6901 Slimline - SCCP - charcoal

Product Overview
The Cisco Unified IP Phone 6901 is a single-line endpoint delivering cost-effective access to Cisco Unified Communications. Designed with a trimline-like low profile, the Cisco Unified IP Phone 6901 is an ideal solution for lobbies, hallways, elevators, hotel bathrooms, or other settings that have an occasional need for voice communications services.
The Cisco Unified IP Phone 6901 supports two incoming calls with call-waiting service. Fixed feature keys provide one-touch access to Hold, Redial, and Call waiting. Transfer and Conference can be supported by using the hook-switch similar to that of traditional analog phones.
The Cisco Unified IP Phone 6901 offers personalization, with the choice of two colors (charcoal and arctic white) and two handset style options (slimline and standard).
The Cisco Unified IP Phone 6901 is an earth-friendly solution. As with the other Cisco Unified IP Phone 6900 Series endpoints, the Cisco Unified IP Phone 6901 takes advantage of reground and recyclable plastics for a more earth-responsible solution.

Technical details Keypad number of keys 12 Display Display No Phone features Call waiting Yes Distinctive ring No Speed dialing No Intercom No Call hold Yes Call forwarding No Conference call capability Yes Redialing Yes Hands-free speakerphone No Do not disturb function No Caller ID No On-hook dialing No Audio Voice codecs G.711a, G.711, G.729a, G.729b, G.729ab Networking Ethernet LAN connection Yes Supported network protocols SCCP, SRTP, TLS, LLDP-MED, DHCP, IVR, RTCP Quality of Service (QoS) support Yes DHCP client Yes Connectivity Ethernet LAN (RJ-45) ports quantity 2 Energy management Power over Ethernet (PoE) Support Yes Power consumption 2.77 W Input voltage 48 V Weight & dimensions Dimensions W x D x H 94 x 46 x 205 mm

Weight & dimensions Weight 621.2 g System requirements Minimum system requirements 8MB Flash 32MB RAM (SDRAM) Microphone Microphone mute Yes Certificates Safety (UL) 60950, (CSA) C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS60950, TS 001 Certification (FCC) 15 (CFR 47) B ICES-003 B EN55022 B CISPR22 B AS/NZS CISPR 22 B CISPR 24 VCCI B EN55024 EN 50082-1 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 FCC 68 (CFR47) HAC TIA 810A CE Compliance industry standards IEEE 802.3af Colour Colour of product Charcoal Environmental conditions Operating temperature range (T-T) 30 - 60 °C Operating relative humidity range 5 - 95 % Storage relative humidity range 5 - 95 % Storage temperature range (T-T) -25 - 70 °C
