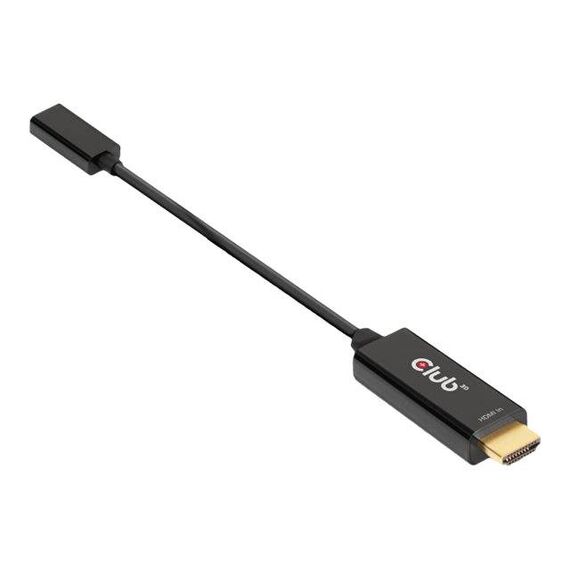

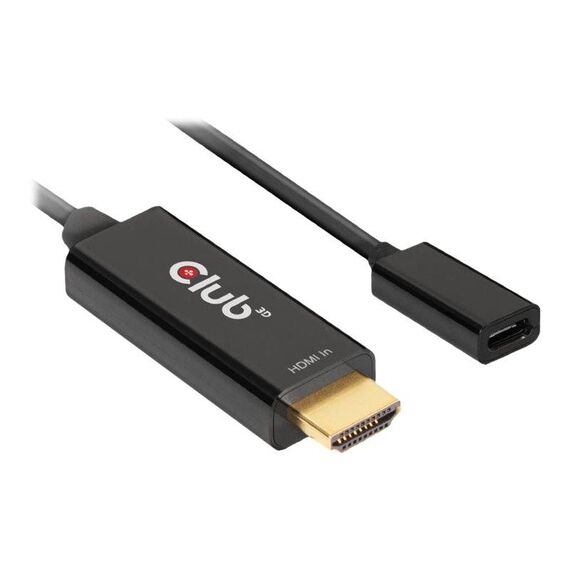

Club 3D / Adapter cable / HDMI male to 24 pin USB-C female / 22 cm / active, 4K60Hz support | CAC-1333
Club 3D / Adapter cable / HDMI male to 24 pin USB-C female / 22 cm / active, 4K60Hz support | CAC-1333
€47.96 inc. VAT
CAC-1333
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Support HDMI input, USB-C output with max 4K/60Hz
- Support 8/10/12-bit Deep color
- Support HDCP1.4/2.2
- Support Status and Control Data Channel (SCDC)
- Support Resolution up to 4Kx2K@60Hz for 4:4:4 format
- Support DP 1.2 specification
- Support Resolution up to 4Kx2K@60Hz
- Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane
- Support Resolution up to 4Kx2K@60Hz for 4:4:4 format
- Support 8/10/12-bit Deep Color
- Support Hot-Plug Detect
- Powered thru USB Type-C at 5V/ 500mA Max
Product Specification
| Cable Type | Adapter cable active, 4K60Hz support |
| Interface Supported | HDMI / USB |
| Rated Current | 500 mA |
| Length | 22 cm |
| Features | HBR audio support, HBR2 audio support, Status and Control Data Channel (SCDC), Reduced Bit Rate (RBR), 12 Bit Deep Colour, 8 bit deep colour, 10 bit deep colour, DisplayPort Alternate Mode support, charging via usb |
| Connectivity | Connectivity |
| Connector | 19 pin HDMI Type A - male (input) |
| Connector (Second End) | 24 pin USB-C - female (output) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS, EMI, HDCP 2.2, HDCP 1.4 |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 22 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 6 cm |
| Shipping Depth | 3.5 cm |
| Shipping Height | 24 cm |
| Shipping Weight | 58 g |
Features - Club 3D - CAC-1333
Length
0.25m
More Details
Product Code
04:387087
EAN Code
8719214472047
Manufacturer
Club 3D
