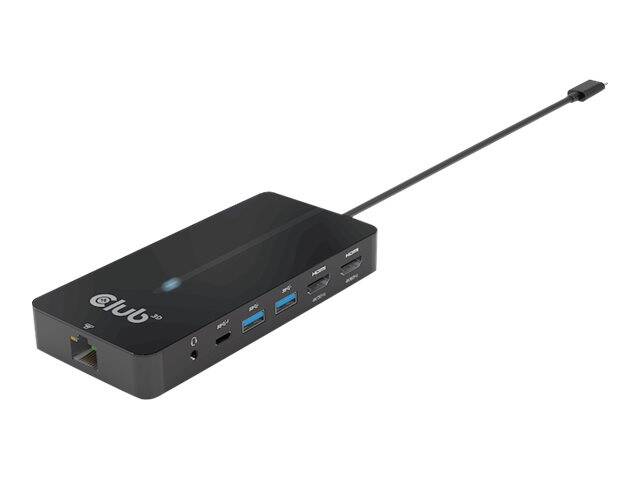

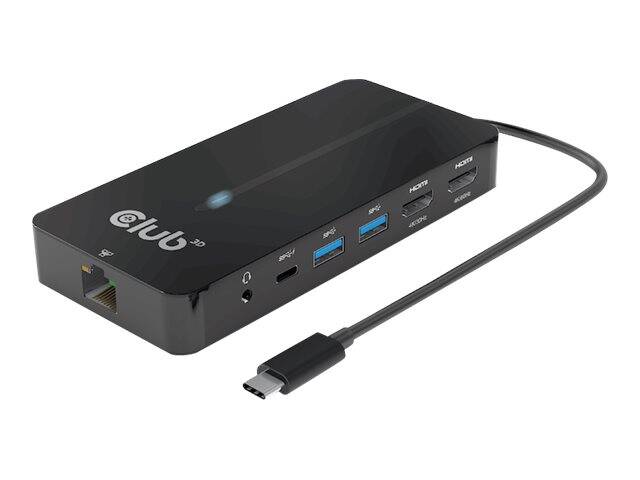

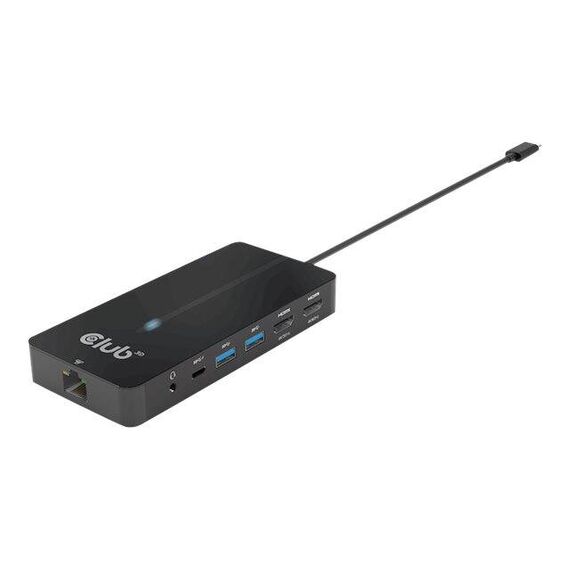

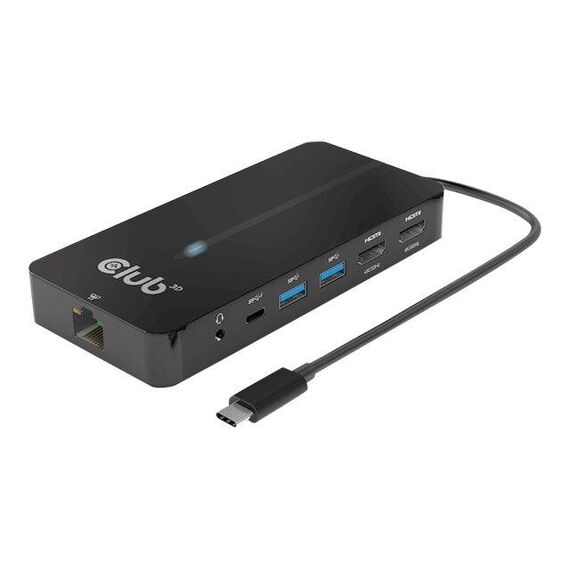

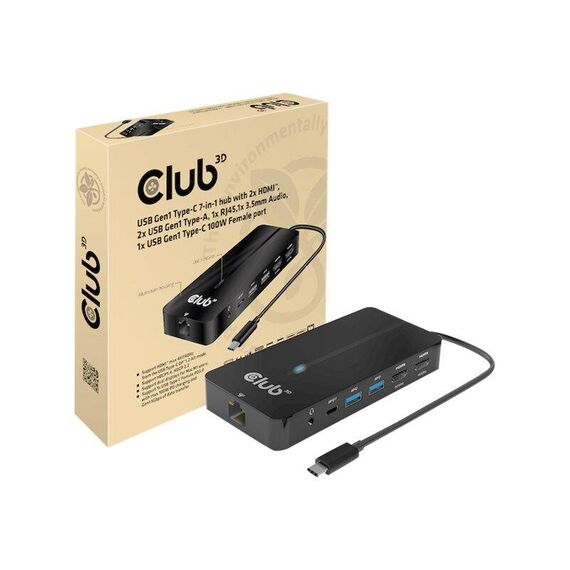

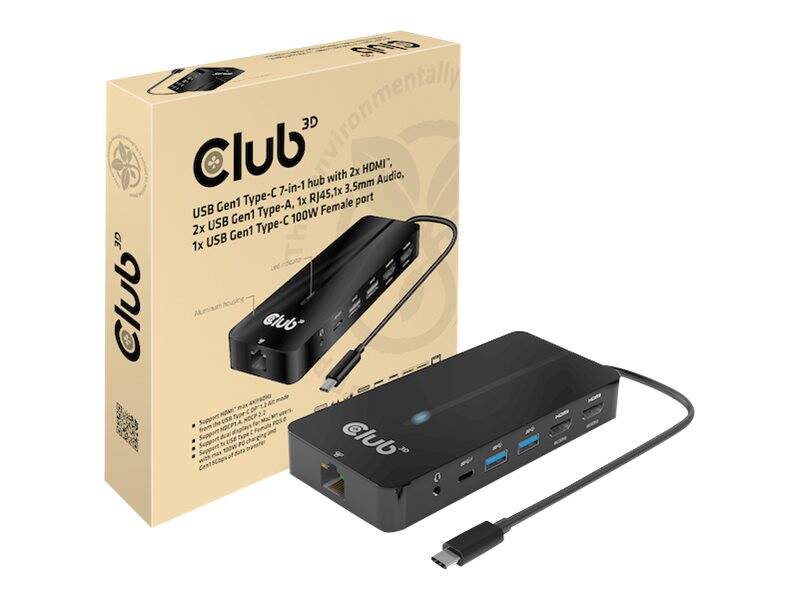

Club 3D CSV-1595 - Docking station - USB-C 3.2 Gen 1 - 2 x HDMI - GigE | CSV-1595
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 14 cm |
| Depth | 6.5 cm |
| Height | 1.9 cm |
| Weight | 210 g |
| Video | |
| Max Resolution Details | 3840 x 2160 - 60 Hz (HDMI1 only) ¦ 3840 x 2160 - 30 Hz (HDMI2 only) |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C 3.2 Gen 1 with Power Delivery (100 W) - 24 pin USB-C ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 25 cm |
| Features | Overcurrent protection, overvoltage protection, short circuit protection, DisplayPort Alt Mode |
| Compliant Standards | FCC, RoHS, EMI, USB Battery Charging Specification Rev. 1.2, HDCP 2.2, HDCP 1.4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21 cm |
| Shipping Depth | 3.5 cm |
| Shipping Height | 21 cm |
| Shipping Weight | 286 g |
Features - Club 3D - CSV-1595
More Details
Product Code
04:405444
EAN Code
8719214472269
Manufacturer
Club 3D
