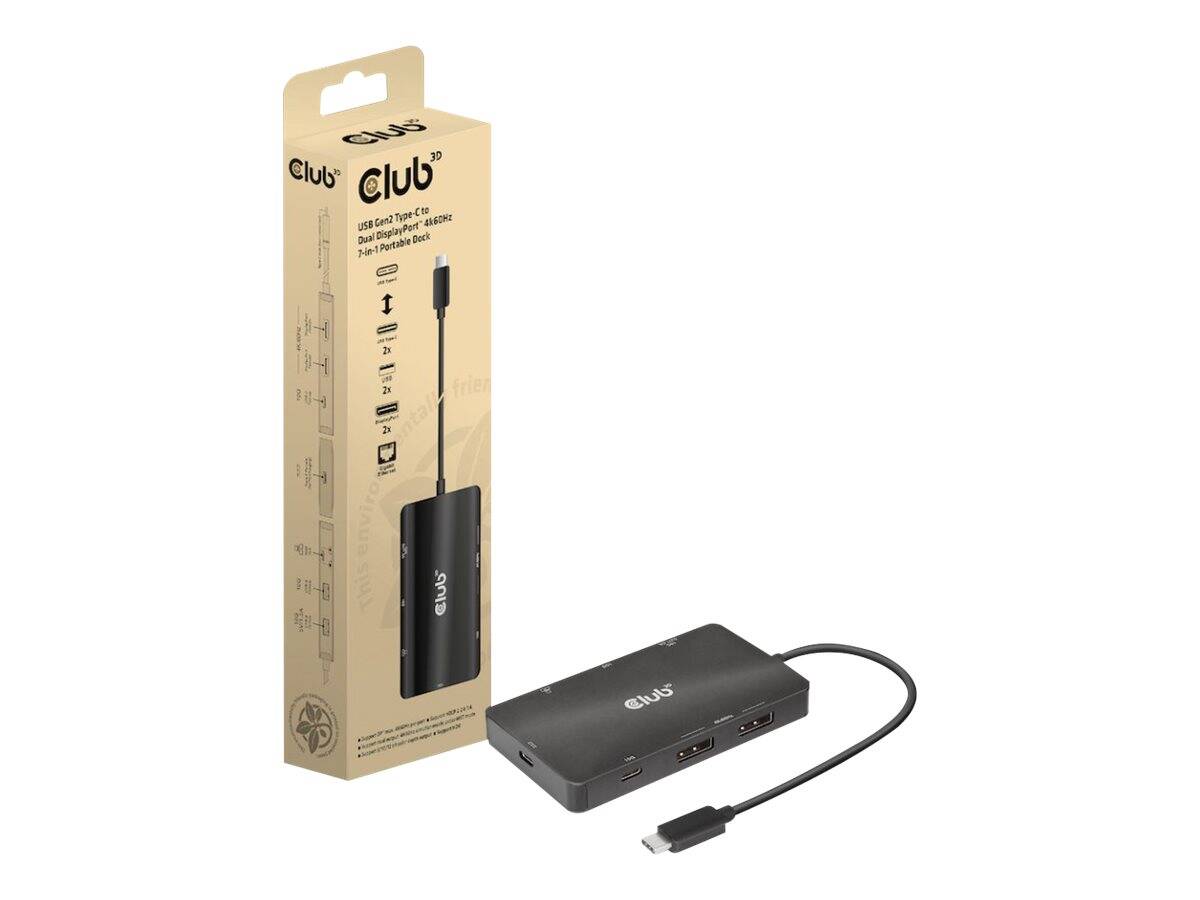

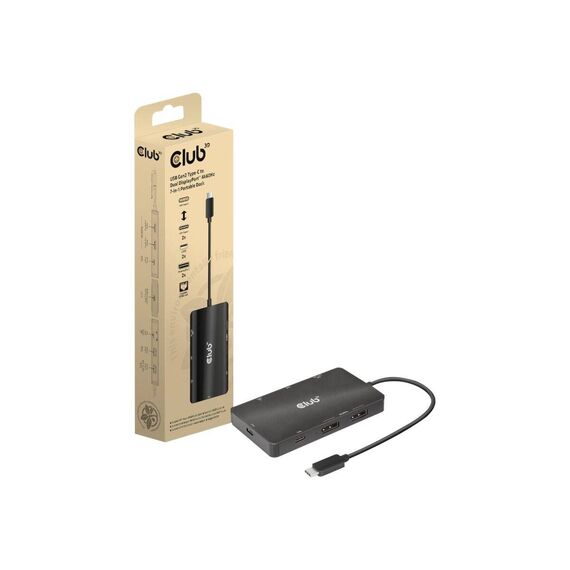

Club 3D - Docking station - USB-C 3.2 Gen 2 - 2 x DP - GigE | CSV-1598
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 10.5 cm |
| Depth | 5.9 cm |
| Height | 1.4 cm |
| Weight | 102 g |
| Video | |
| Max Resolution Details | 4K - 60 Hz |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C 3.2 Gen 2 with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort (1.4) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45 ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 17 cm |
| Features | Overcurrent protection, overvoltage protection, short circuit protection, MST (multi-stream transport), DisplayPort Alt Mode, HDR support |
| Compliant Standards | FCC, RoHS, EMI, DisplayPort 1.4, HDCP 2.2, HDCP 1.4, USB Power Delivery 3.0, DSC 1.2 |
| System Requirements | |
| OS Required | Apple MacOS, Microsoft Windows, Apple iOS |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 25 cm |
| Shipping Depth | 8 cm |
| Shipping Height | 3.5 cm |
| Shipping Weight | 156 g |
Features - Club 3D - CSV-1598
More Details
Product Code
04:412857
EAN Code
8719214472528
Manufacturer
Club 3D
