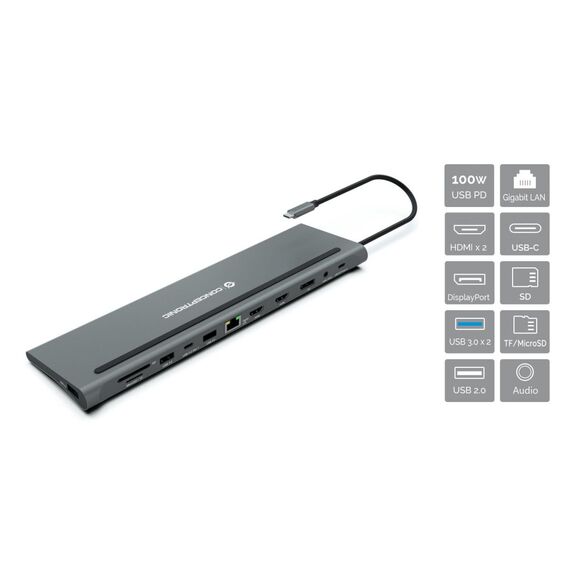

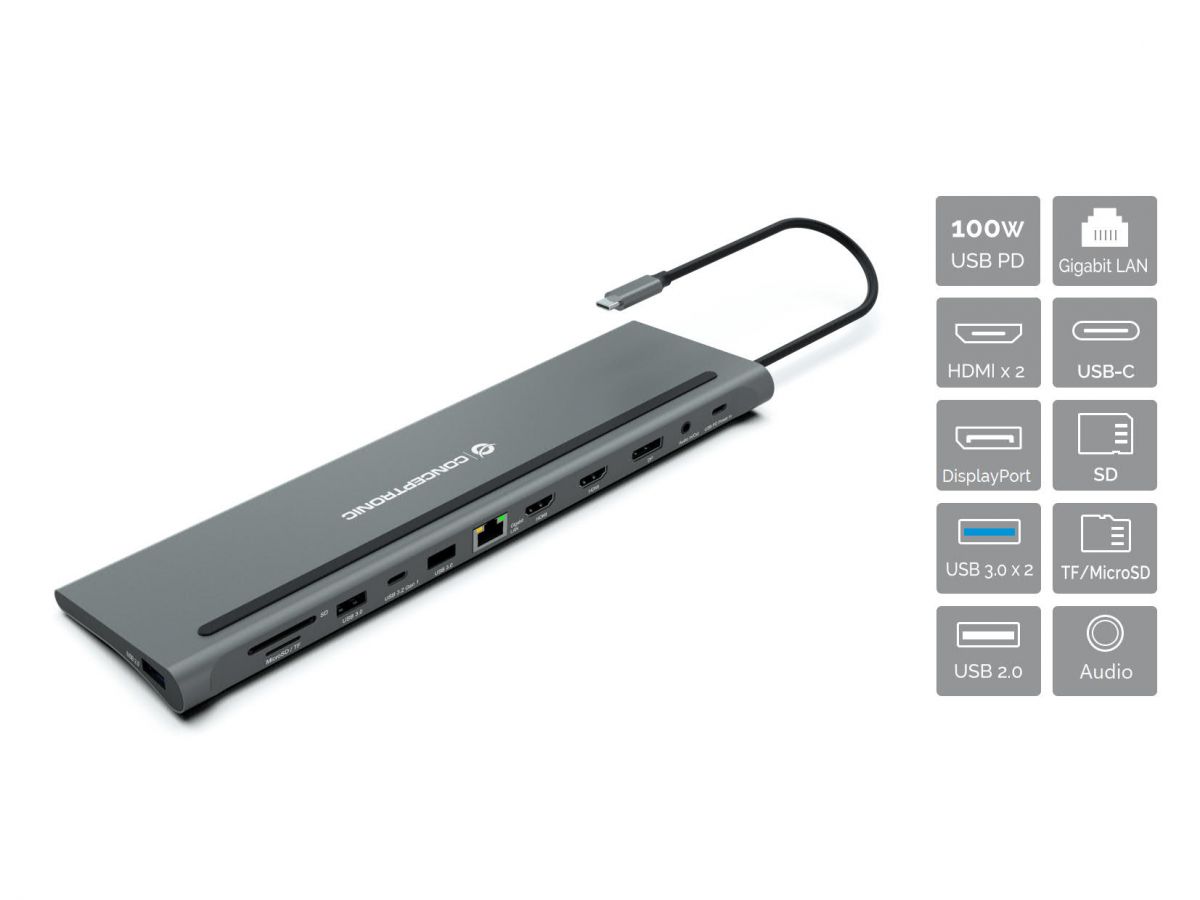

Conceptronic DONN17G 12-in-1 USB 3.2 Gen 1 Docking Station, Triple 4K Display, 100W USB PD, HDMI x 2, DisplayPort, Gigabit LAN, USB-A 3.0 x 2, USB-A 2.0, USB-C Data, SD, TF/MicroSD, Audio | DONN17G
Please sign in so that we can notify you about a reply
This 12-in-1 docking station makes it possible to expand your device’s USB Type-C capacity with HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX ports. The adapter provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on three additional monitors simultaneously (2 x HDMI, 1 x DisplayPort), creating a triple-screen workstation. Perfect for home entertainment, office presentations and classroom teaching.
- 12-in-1 USB-C to HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX multiport adapter
- Supports HDMI resolution up to 4K 60Hz
- Supports DisplayPort resolution up to 4K 60Hz
- Supports DisplayPort & HDMI simultaneously
- Supports USB Power Delivery (PD) up to 100W
- Provides a Gigabit Ethernet port with speeds up to 1000Mbps
- Built-in Wake-on-LAN feature to startup computers remotely
- Display modes : extended, mirror
- Supports MST mode (for Windows only)
- USB 3.2 Gen 1 SuperSpeed (5Gb/s)
- Multi-platform support: Windows, Mac OS, Chrome OS
- Simple Plug and Play installation
- Cable length: 18cm
Product Specification
| Product Type | Docking station |
| Width | 6 cm |
| Depth | 28 cm |
| Height | 1.7 cm |
| Weight | 232 g |
| Enclosure Colour | Grey |
| Video | Video |
| Max Resolution Details | 3840 x 2160, 4K - 60 Hz (Single Display) ¦ 3840 x 2160, 4K - 60 Hz (Dual Display) ¦ 3840 x 2160, 4K - 30 Hz (Triple Display) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Compliant Standards | USB 2.0, USB 3.0 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C 3.2 Gen 1 with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 (data only) - 24 pin USB-C ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 1 x audio / video - auxiliary - 3.5 mm stereo |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - integrated - 18 cm |
| Features | MST (multi-stream transport), 100W power delivery, Mirror Mode, triple display support, aluminium housing, Extend Mode |
| Compliant Standards | Plug and Play, RoHS, WEEE, Directive 2014/30/EU, Directive 2015/863, 2011/65/EU, USB Power Delivery, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, HDMI 2.0 |
| System Requirements | System Requirements |
| OS Required | Apple MacOS X 10.5 or later, Android 5.0 or later, Microsoft Windows XP / Vista / 7 / 8 / 10 or later |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
Features - Conceptronic - DONN17G
More Details
Product Code
04:420893
EAN Code
4015867229545
Manufacturer
Conceptronic
