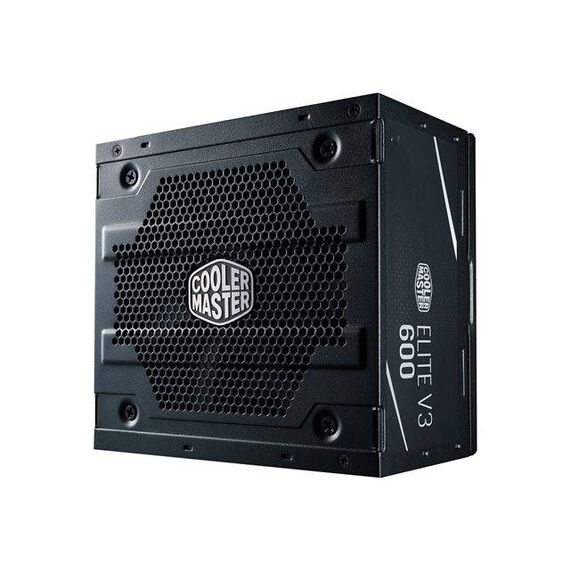

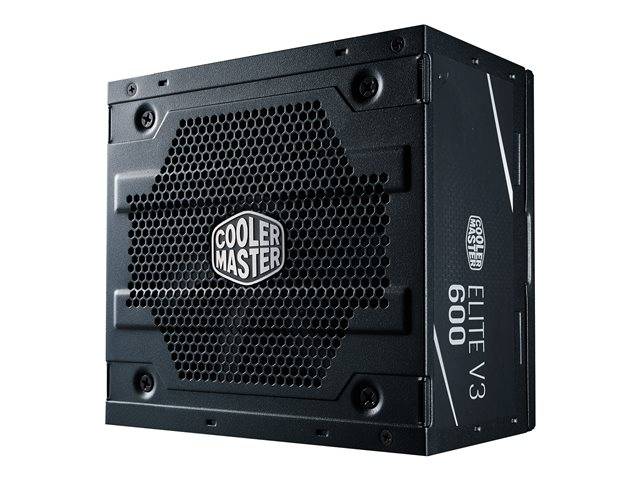

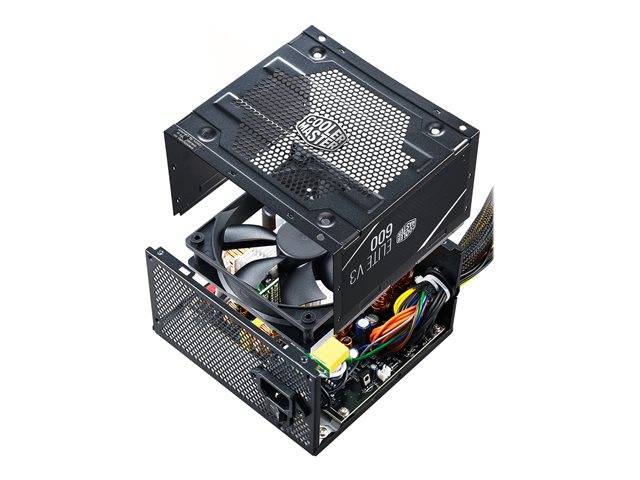

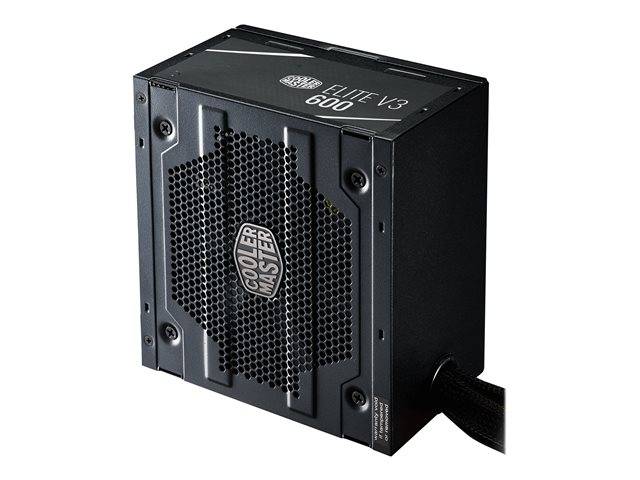

Cooler Master Elite MPW-6001-ACABN1 / V3 / power supply (internal) / ATX12V 2.31 / AC 200-240 V / 600 Watt / active PFC / Europe | MPW-6001-ACABN1-EU
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 200-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 3 x 15 pin Serial ATA power ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 8 pin +12V with detachable 4 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 46 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 82% |
| Power Factor (PF) | 0.9 |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, Intelligent Fan Control Technology, sleeve bearing cooling fan |
| Compliant Standards | TUV, BSMI, FCC, cTUVus, EAC |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 40 °C |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Cooler Master - MPW-6001-ACABN1-EU
More Details
Product Code
03:155190
EAN Code
4719512066331
Manufacturer
Cooler Master
