Cooler Master MasterBox TD500 MESH / Tower / extended ATX / no power supply (ATX) / white / USB/Audio | MCB-D500D-WGNN-S01

Cooler Master MasterBox TD500 MESH / Tower / extended ATX / no power supply (ATX) / white / USB/Audio | MCB-D500D-WGNN-S01
Description
The MasterBox TD500 Mesh embodies airflow performance in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the crystalline tempered glass. Each element of design is precision-engineered to maximize performance and quality alongside aesthetics, evolving beyond the current limits of lighting and cooling.
Cooler Master MasterBox TD500 MESH / Tower | MCB-D500D-WGNN-S01
Special Features
- Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration

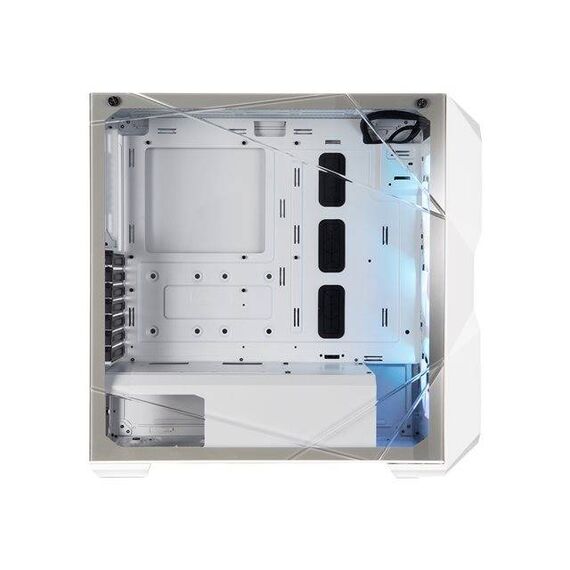

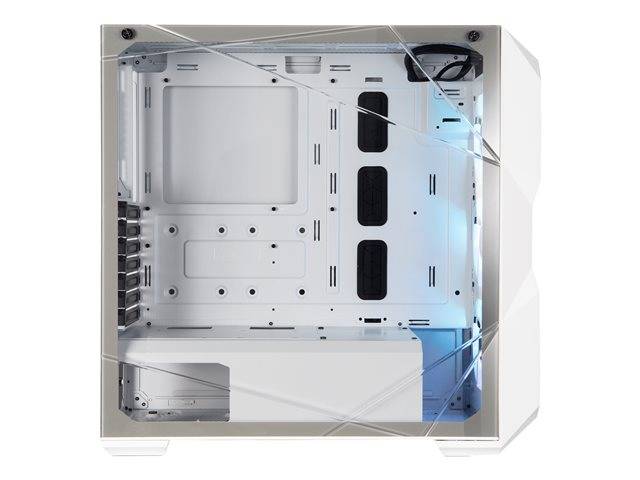

- Crystalline design spans the edges of the tempered glass side panel, elevating how builds and system lighting interact with the design
- Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system
- Two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool
Product features
- Polygonal Mesh
Crafted from Cooler Master's Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and simultaneously provides unobstructed airflow and dust filtration. - Crystalline tempered glass
A crystalline design spans the edges of the tempered glass side panel, precision-engineered for strength as well as aesthetics, elevating how builds and system lighting interact with the design. - Triple ARGB fans
Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system. - Dual radiator support
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.
Product Specification
Form Factor | Tower |
Max Mainboard Size | Extended ATX |
Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX, SSI CEB |
Specification Compliance | ATX |
Internal Bays Qty | 6 |
Product Material | Plastic, steel, tempered glass, mesh |
Colour | White |
Cooling System | Front: 120 mm fan x 3 / ARGB fan, 2 x 140 mm fan supported ¦ Rear: 120 mm fan mount x 1 ¦ Top: 120 mm fan mount x 3 / 2 x 140 mm fan supported |
CPU Cooler Max Height | 165 mm |
Video Card Max Length | 410 mm |
Power Supply Max Length | 180 mm |
System Cabinet Features | Top panel dust filter, front dust filter, tempered glass side panel, bottom dust filter, supports 120/140/240/280/360 mm radiator in front panel, supports 120/240/360 mm radiator in top, supports 120 mm radiator in rear panel, ARGB fans |
Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 4 (total) / 4 (free) x internal - 2.5" |
Expansion Slots | 7 |
Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack |
Included Accessories | ARGB controller, ARGB LED splitter cable (3-way) |
Power Device | No power supply |
Width | 21.7 cm |
Depth | 49.3 cm |
Height | 46.9 cm |
Weight | 6.95 kg |
Shipping Width | 29 cm |
Shipping Depth | 52.7 cm |
Shipping Height | 57 cm |
Shipping Weight | 8.3 kg |
Service & Support | Limited warranty - 2 years |
