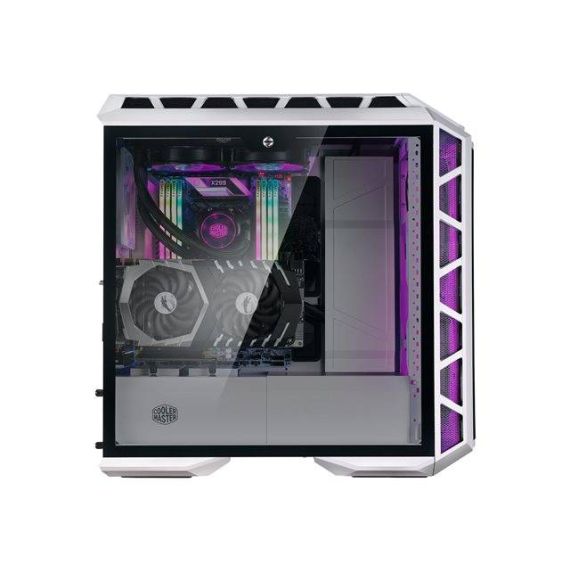

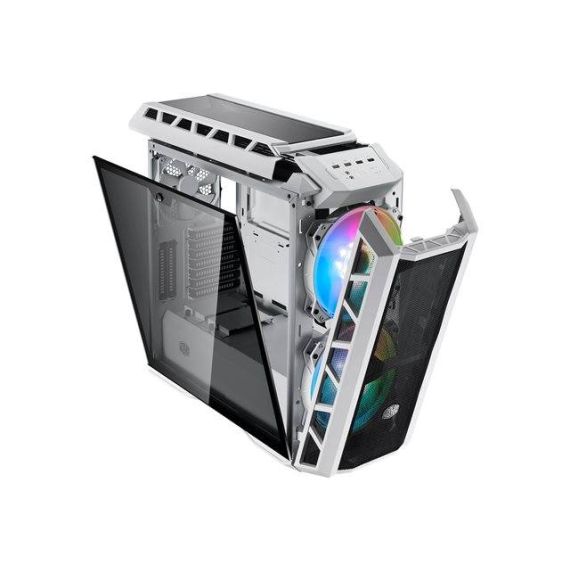

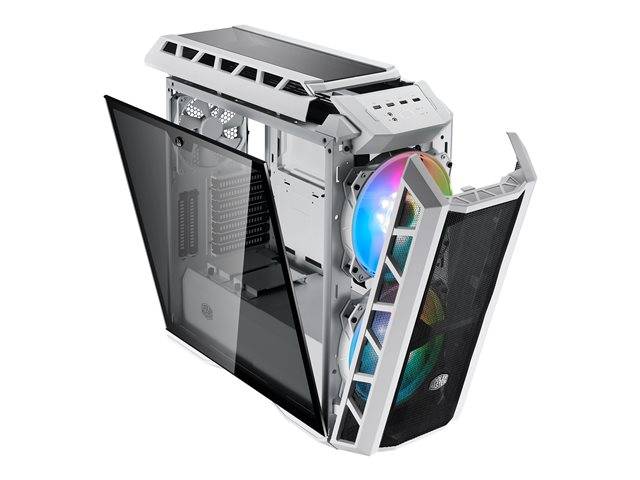

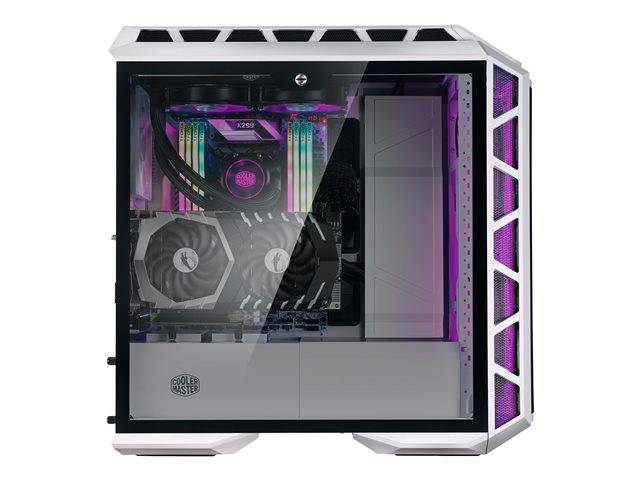

Cooler Master MasterCase H500P Mesh ARGB / Tower / extended ATX / no power supply (ATX) / white / USB/Audio | MCM-H500P-WGNN-S01
Cooler Master MasterCase H500P Mesh ARGB / Tower / extended ATX / no power supply (ATX) / white / USB/Audio | MCM-H500P-WGNN-S01
Description
Every serious gaming system requires a substantial amount of airflow. Not just for freshly built rigs, but also for upgrading hardware in the future. The MasterCase H500P Mesh ARGB was engineered for exactly that. With dual ARGB fans, premium addressable lighting comes pre-installed - one upgrade checked off. Mesh spans the entire front to provide an unrestricted pathway for air, fed to the two massive fans behind the panel. Whether extreme water-cooling or air-cooling is the preferred method, the MasterCase H500P Mesh ARGB delivers versatility, performance, and customizability with ARGB lighting to boot.
Cooler Master MasterCase H500P Mesh ARGB / Tower | MCM-H500P-WGNN-S01
Special Features
- Dual fans
- Mesh front panel
- Build by design
- Tempered glass side panel
Product features
- Dual fans

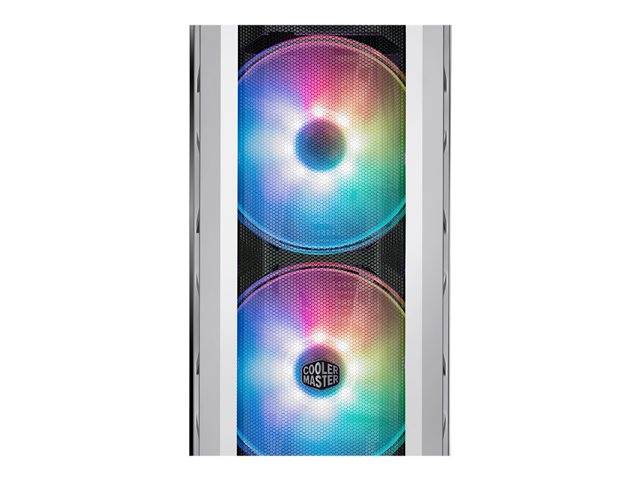

The iconic, addressable RGB fans are the core of the Cooler Master MasterCase in design and function, capable of operating quietly while moving high volumes of air due to their size. - Mesh front panel
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure. - Build by design
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter. - Tempered glass side panel
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
Product Specification
Form Factor | Tower |
Max Mainboard Size | Extended ATX |
Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX |
Specification Compliance | ATX |
Internal Bays Qty | 4 |
Product Material | Plastic, steel, tempered glass, steel mesh |
Colour | White |
Cooling System | Front: 200 mm fan x 2 / ARGB fan ¦ Rear: 140 mm fan x 1 / 1200 rpm / 1 x 120 mm fan supported ¦ Top: fan mount / 3 x 120/140 mm fan or 2 x 200 mm fan supported ¦ Front: fan mount / 3 x 120/140 mm fan supported |
CPU Cooler Max Height | 190 mm |
Video Card Max Length | 412 mm |
Power Supply Max Length | 220 mm |
System Cabinet Features | Meshed front panel, cable management system, tempered glass side panel, bottom magnetic dust filter, supports 120/140/240/280/360 mm radiator in front panel, supports 120/140/240/280/360 mm radiator in top, front magnetic dust filter, supports 120/140 mm radiator in rear, top magnetic dust filter, vertical/horizontal graphic card orientation, ASUS Aura Sync RGB illumination, ASRock Polychrome SYNC, MSI RGB Mystic Light Sync, Gigabyte RGB Fusion 2.0 Ready |
Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" |
Expansion Slots | 9 |
Interfaces | 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack |
Included Accessories | RGB controller |
Power Device | No power supply |
Max Supported Qty | 1 |
Width | 24.2 cm |
Depth | 54.4 cm |
Height | 54.2 cm |
Weight | 11.3 kg |
Shipping Width | 34.5 cm |
Shipping Depth | 64 cm |
Shipping Height | 65 cm |
Shipping Weight | 14.7 kg |
Service & Support | Limited warranty - 2 years |
