Cooler Master MWE Bronze V2 600 / Power supply (internal) / ATX12V 2.52/ EPS12V / 80 PLUS Bronze / AC 100-240 V / 600 Watt / active PFC / Europe | MPE-6001-ACAAB-EU
Cooler Master MWE Bronze V2 600 / Power supply (internal) / ATX12V 2.52/ EPS12V / 80 PLUS Bronze / AC 100-240 V / 600 Watt / active PFC / Europe | MPE-6001-ACAAB-EU
Description

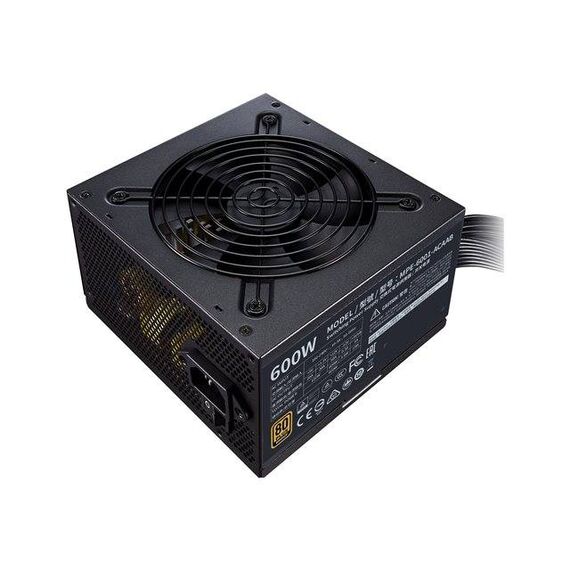

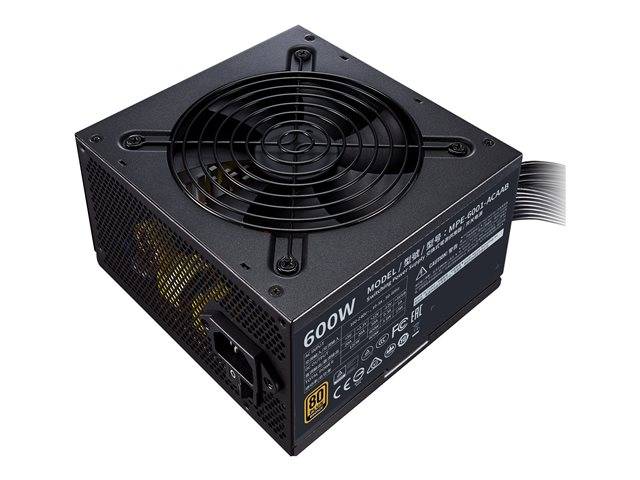

The MWE Bronze offers a simple, reliable way to power your mid-range system safely and efficiently. The DC-to-DC circuit design, discrete cables, silent mode, and 120 mm HDB fan offer a power supply unit that's solid in features and performance while remaining simple. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles.
Cooler Master MWE Bronze V2 600 / Power supply (internal) | MPE-6001-ACAAB-EU
Special Features
- DC-to-DC circuit design
- Active power factor correction
- HDB fan
Product features
- DC-to-DC circuit design
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your parts need requires special components to complete this process quickly, efficiently, and safely. The MWE Bronze's DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. - Active power factor correction
The many processes required by a power supply unit in order to take power directly from the wall or other fixed power source, convert it to the correct output required by the connected components, and then distribute that power to said components safely can be full of risks. This is why it's important for a PSU to have the right protections and regulations to ensure this process runs correctly. The MWE Bronze's active power factor correction uses a specialized circuit to correct power factor, leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output. - HDB fan
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE Bronze tackles this problem with a 120 mm HDB fan. The hydro dynamic fan bearing creates less friction, making it great for low RPM operations. This technology keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.52/ EPS12V |
PSU Form Factor | ATX |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 50 - 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x power 8 pin EPS12V |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 600 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Efficiency | 85% |
80 PLUS Certification | 80 PLUS Bronze |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Overheat protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, hydrodynamic bearing cooling fan, DC-DC technology, non-modular |
Compliant Standards | BSMI, CB, CCC, FCC, TUV Rh, cTUVus, KC, EAC, RCM, ErP Lot 3 2014 Ready |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Width | 15 cm |
Depth | 14 cm |
Height | 8.6 cm |
Weight | 1.613 kg |
Shipping Width | 26 cm |
Shipping Depth | 19 cm |
Shipping Height | 11 cm |
Shipping Weight | 2.031 kg |
