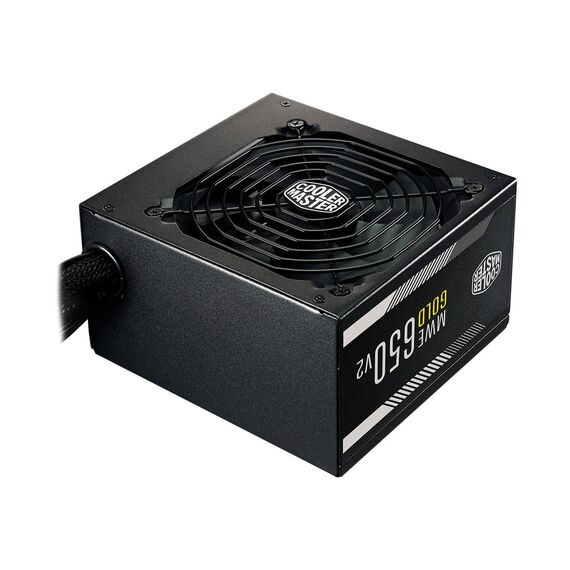

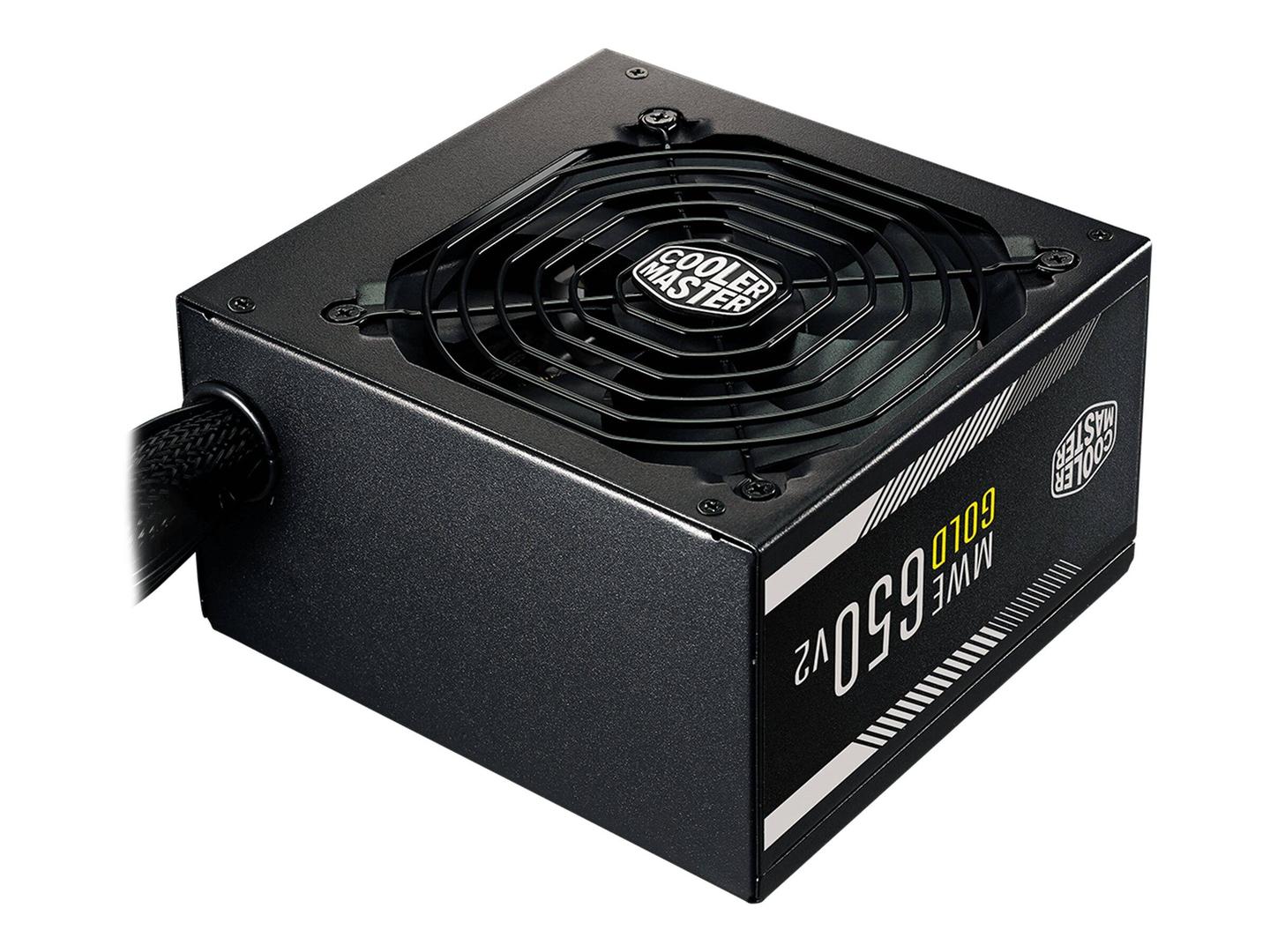

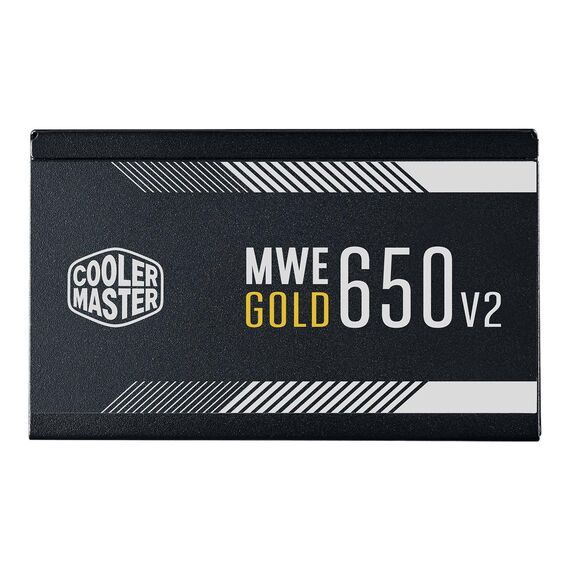

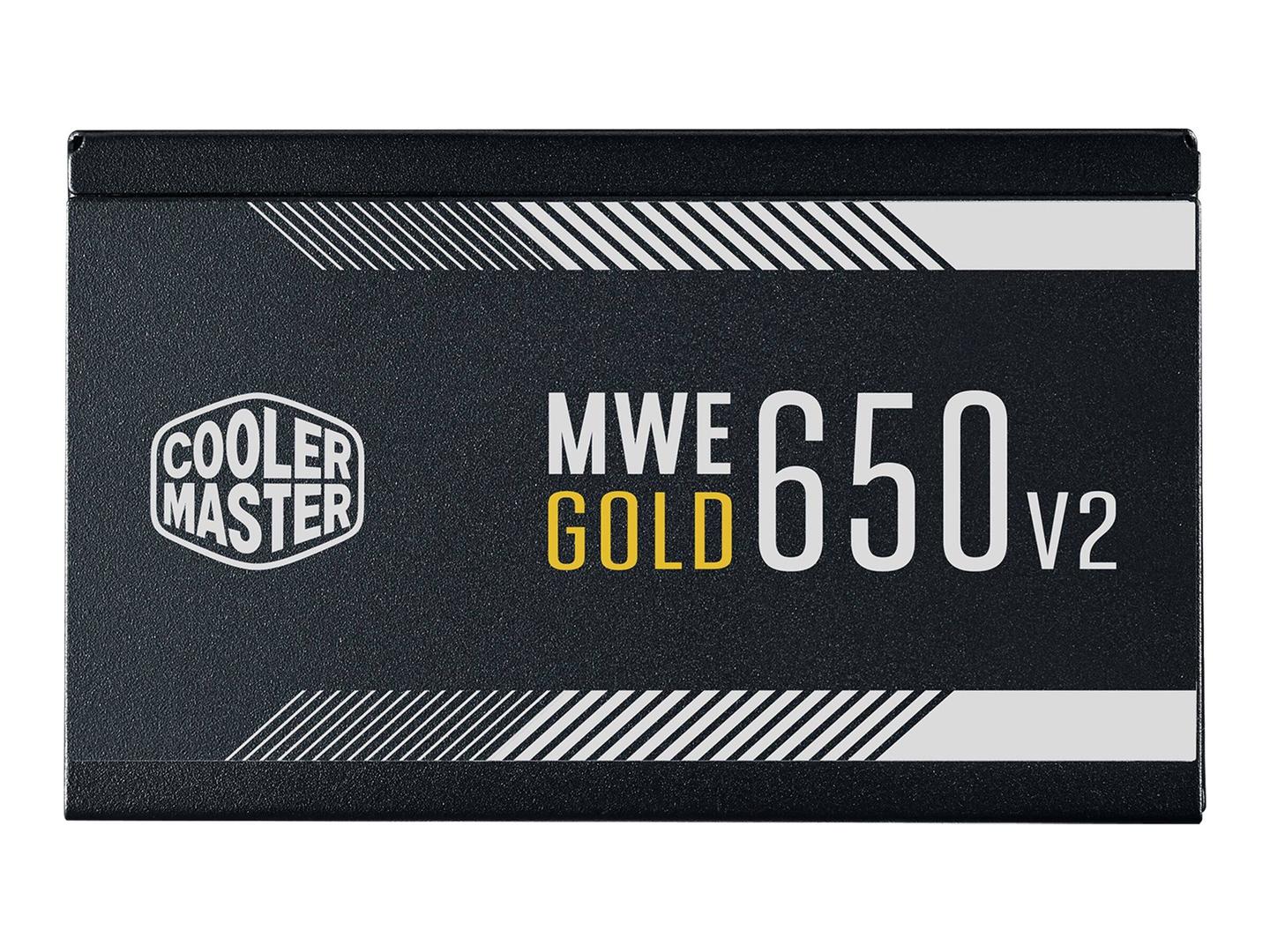

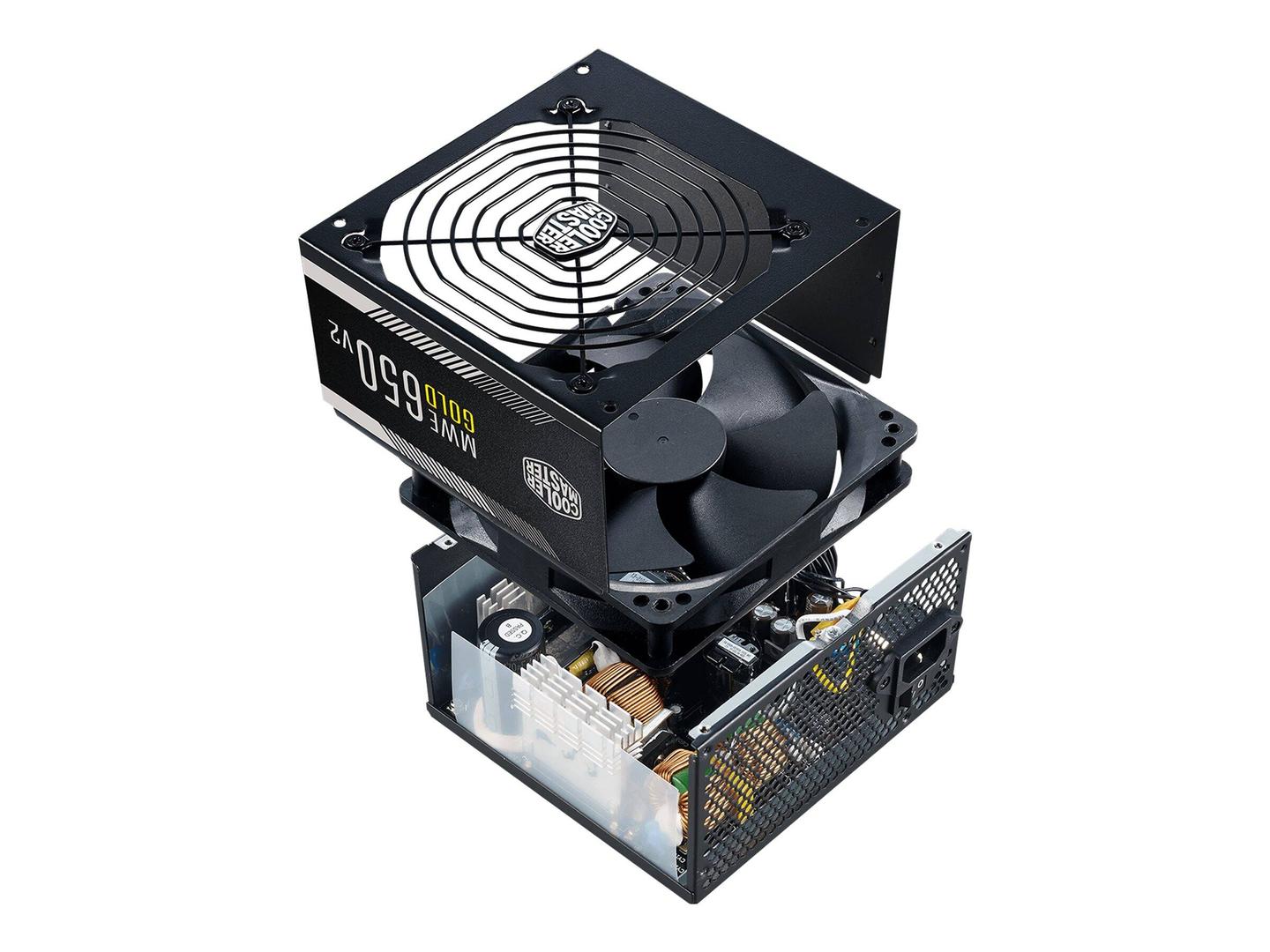

Cooler Master MWE Gold V2 650 - Power supply (internal) - ATX12V 2.41/ EPS12V - 80 PLUS Gold - AC 90-264 V - 650 Watt - active PFC - Europe | MPE-6501-ACAAG-EU

MPE-6501-ACAAG-EU
107.41
(127.82 inc. VAT)
Availability: 178 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Delivery
Payment options
Product Code04:444036 EAN Code4719512105955 ManufacturerCooler Master

Product Features

  • 2 EPS connectors
    All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. You never have to worry if you'll have enough connectors to use your ideal components.
  • Quiet cooling
    The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures has been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.
  • High temperature resilience
    While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.

Special Fetures

  • 80 PLUS Gold efficiency
  • 2 EPS connectors
  • 120mm HDB fan
  • High temperature resilience

Product Specification

Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.41/ EPS12V
PSU Form FactorATX
LocalisationEurope
Power Device
Input VoltageAC 90-264 V
Frequency Required47 - 63 Hz

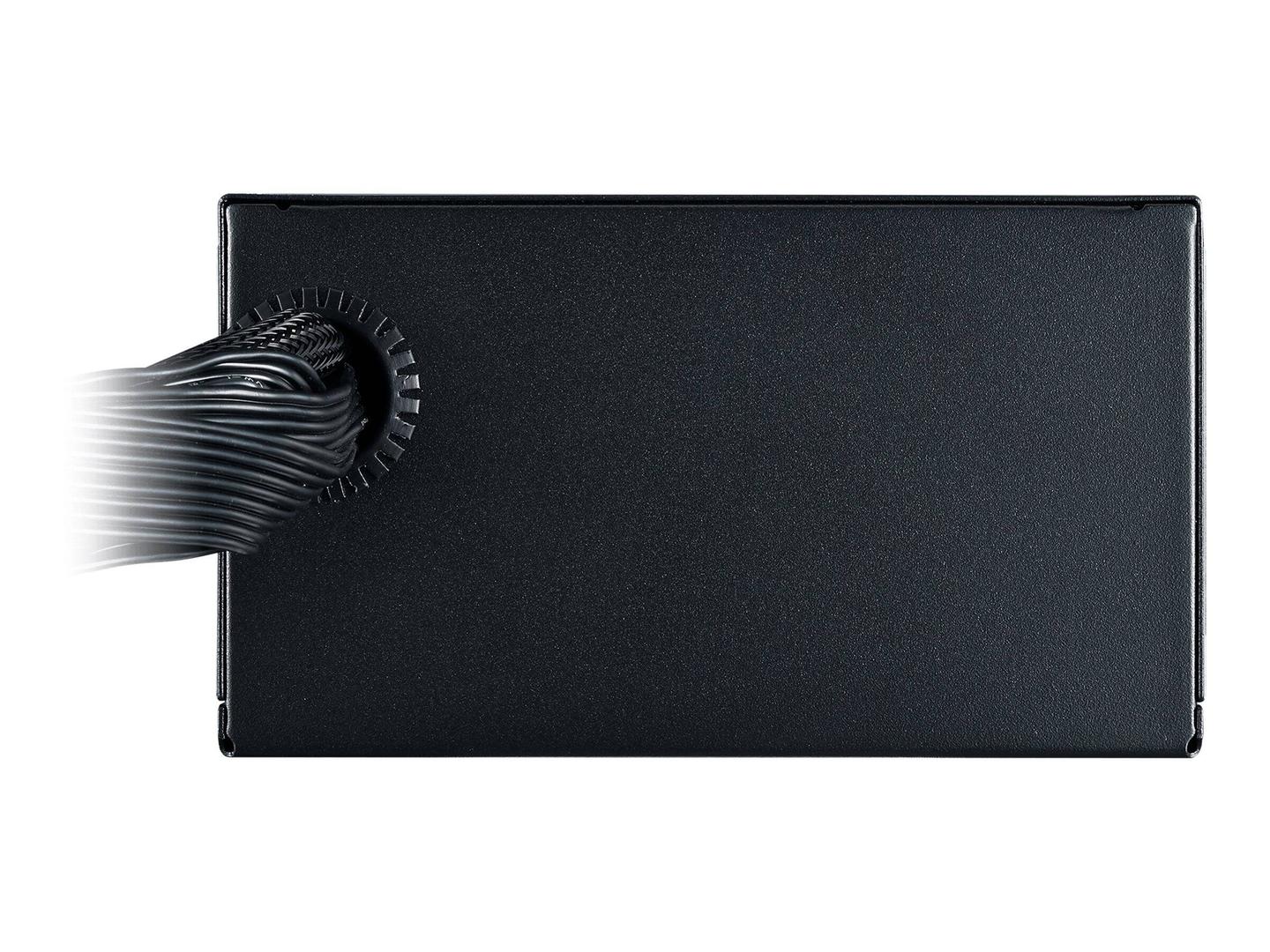

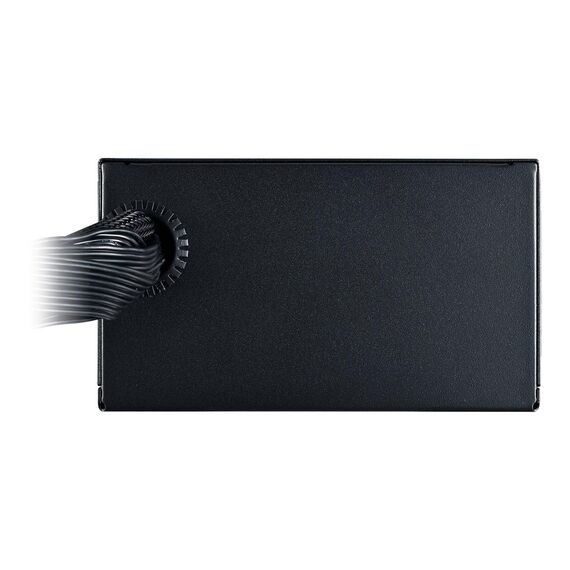

Power Output Connectors Details1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x power 8 pin EPS12V
Output Voltage+3.3, +5, ±12 V
Power Capacity650 Watt

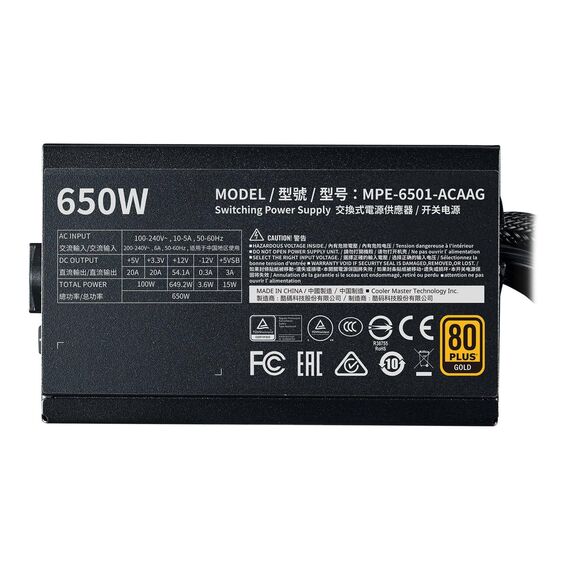

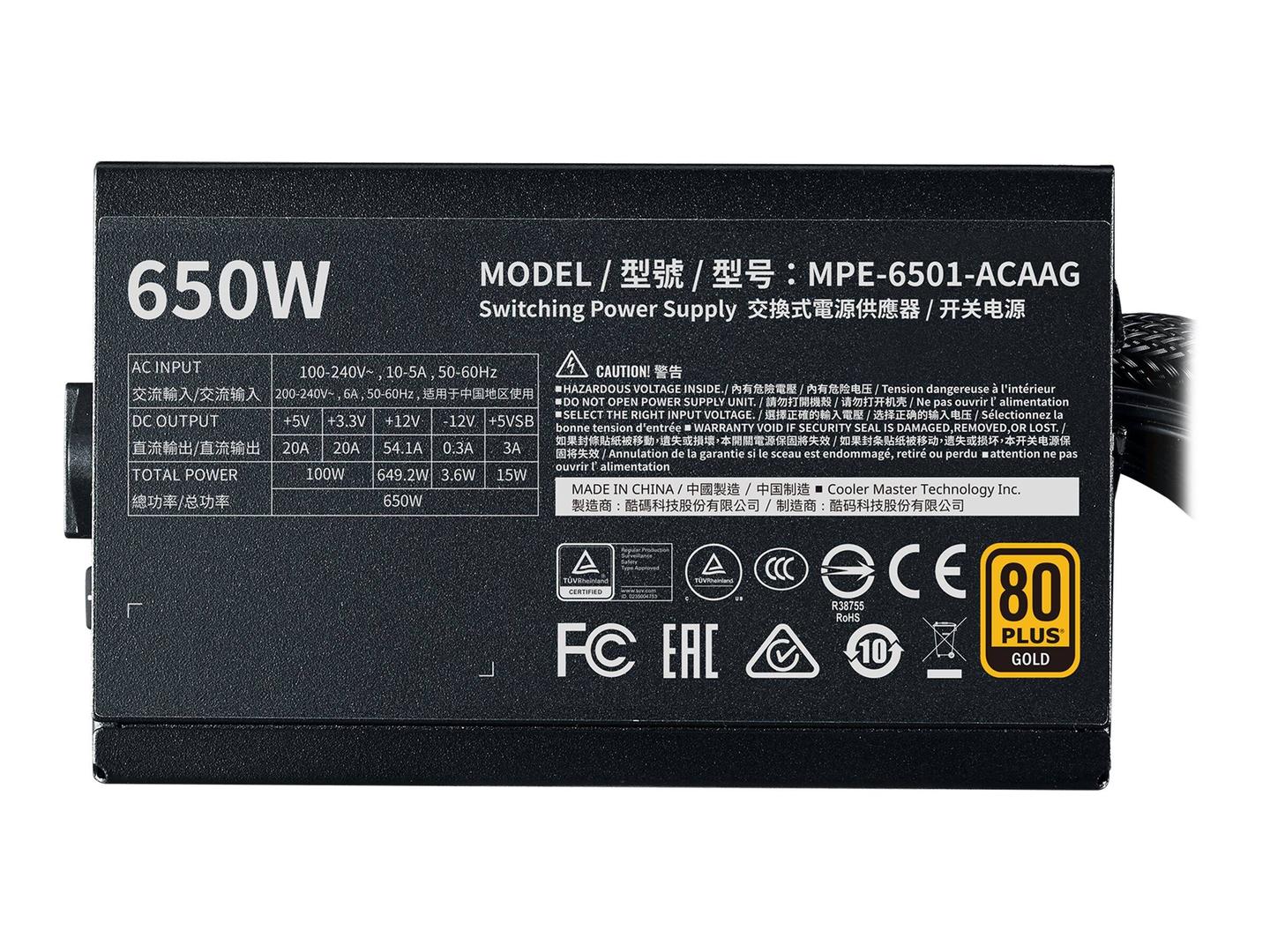

Output Current+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54.1 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency90%
80 PLUS Certification80 PLUS Gold
Miscellaneous
MTBF100,000 hours
Cooling System120 mm fan
FeaturesOverheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, hydrodynamic bearing cooling fan
Compliant StandardsTUV, BSMI, CCC, FCC, cTUVus, EAC, RCM, ErP Lot 3 2014 Ready
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Dimensions & Weight
Width15 cm
Depth14 cm
Height8.6 cm
Weight2.04 kg
Dimensions & Weight (Shipping)
Shipping Width27.6 cm
Shipping Depth19.4 cm
Shipping Height12 cm
Shipping Weight2.52 kg
