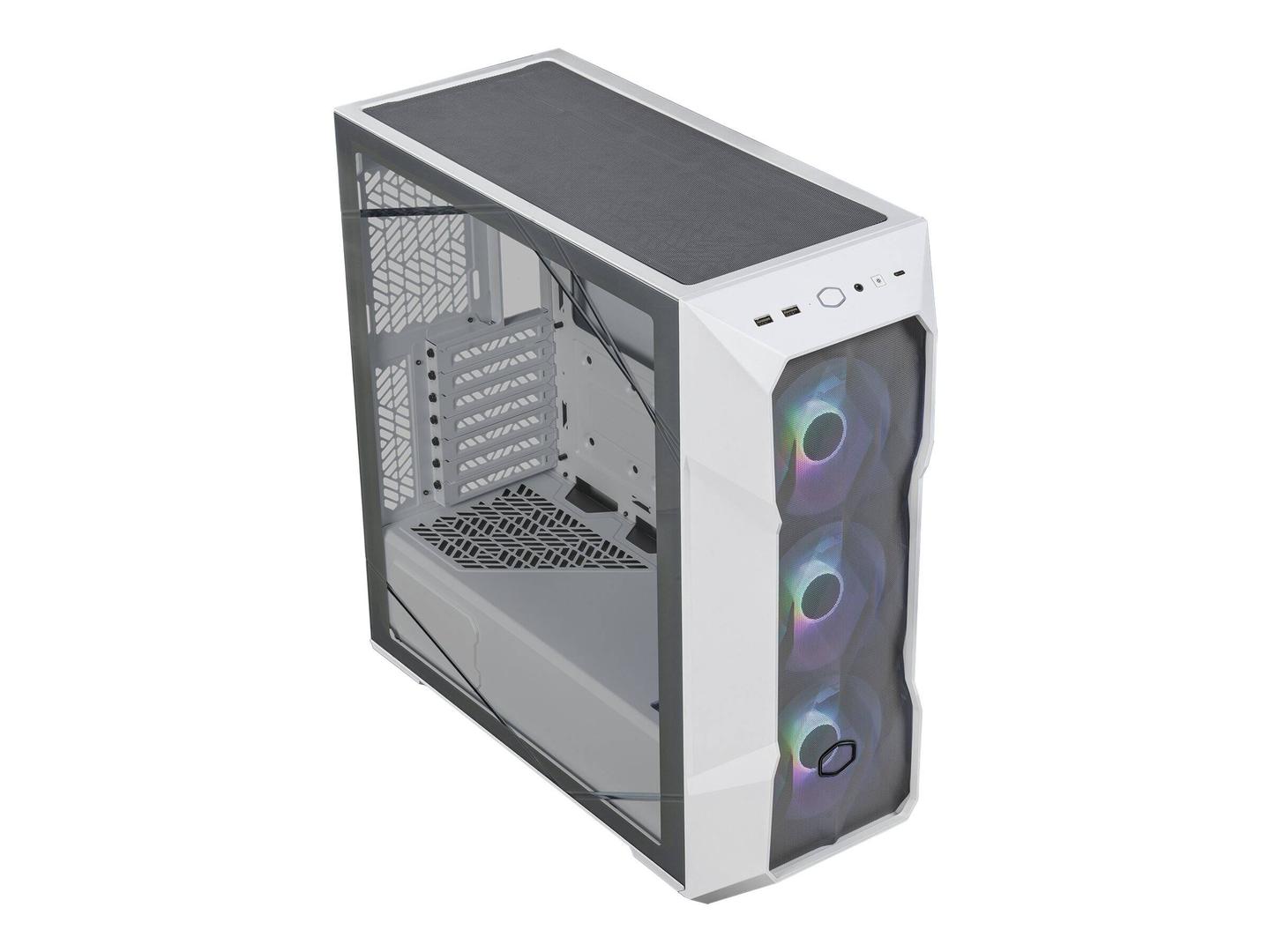

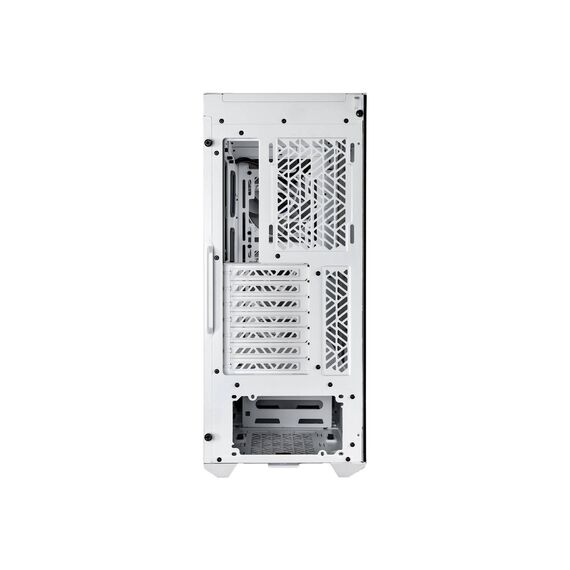

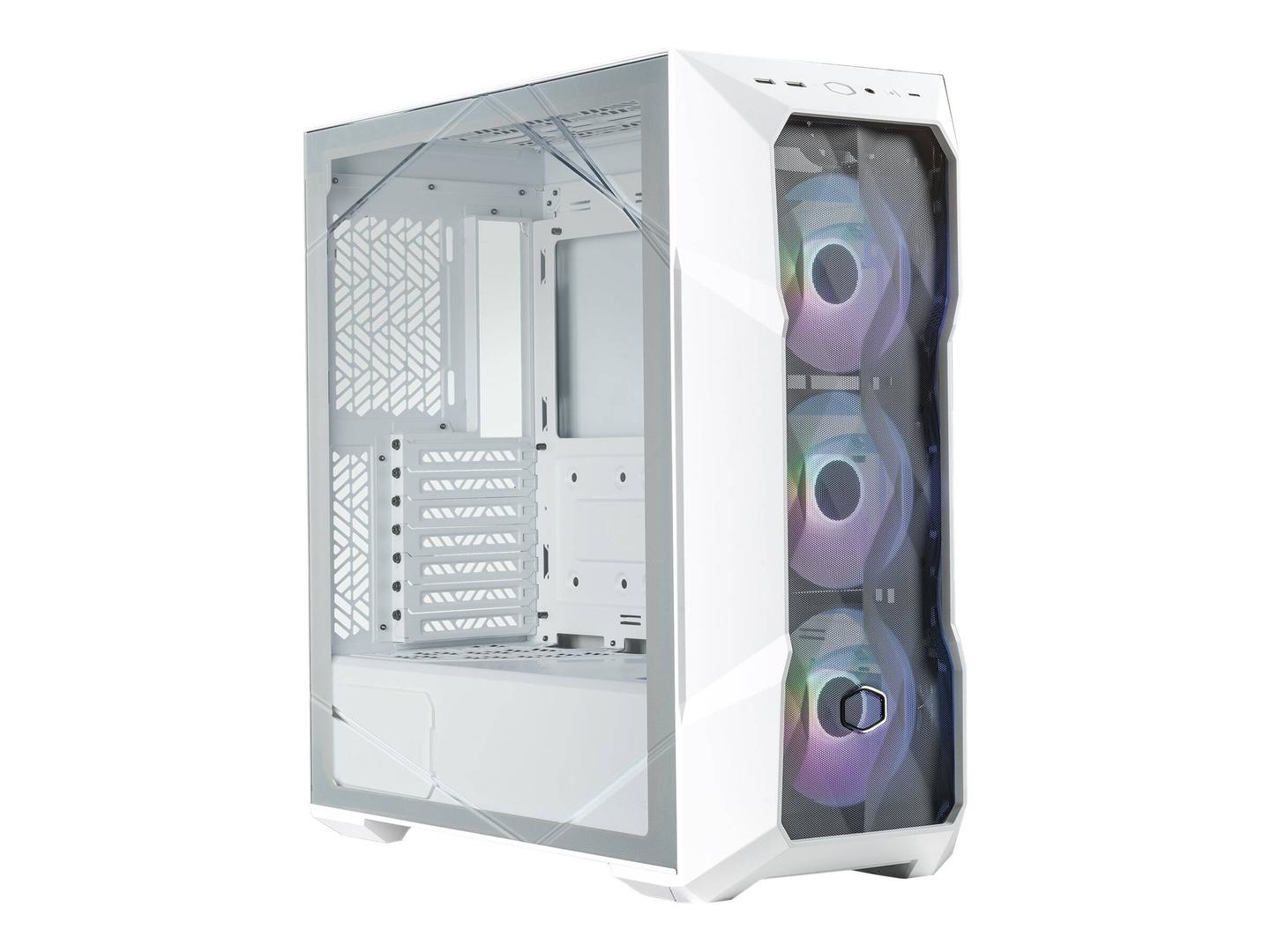

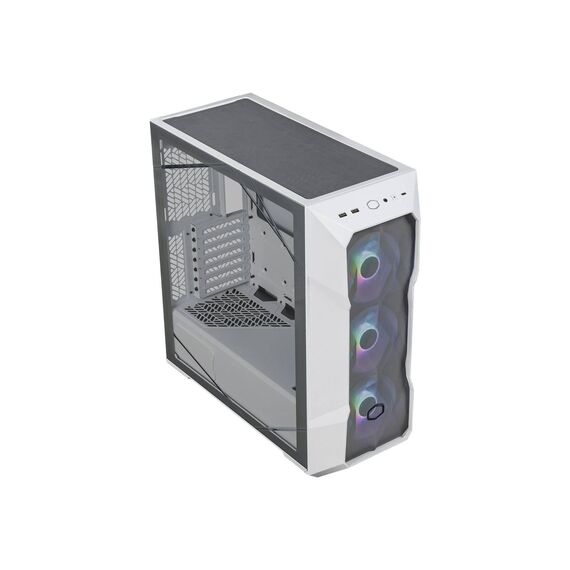

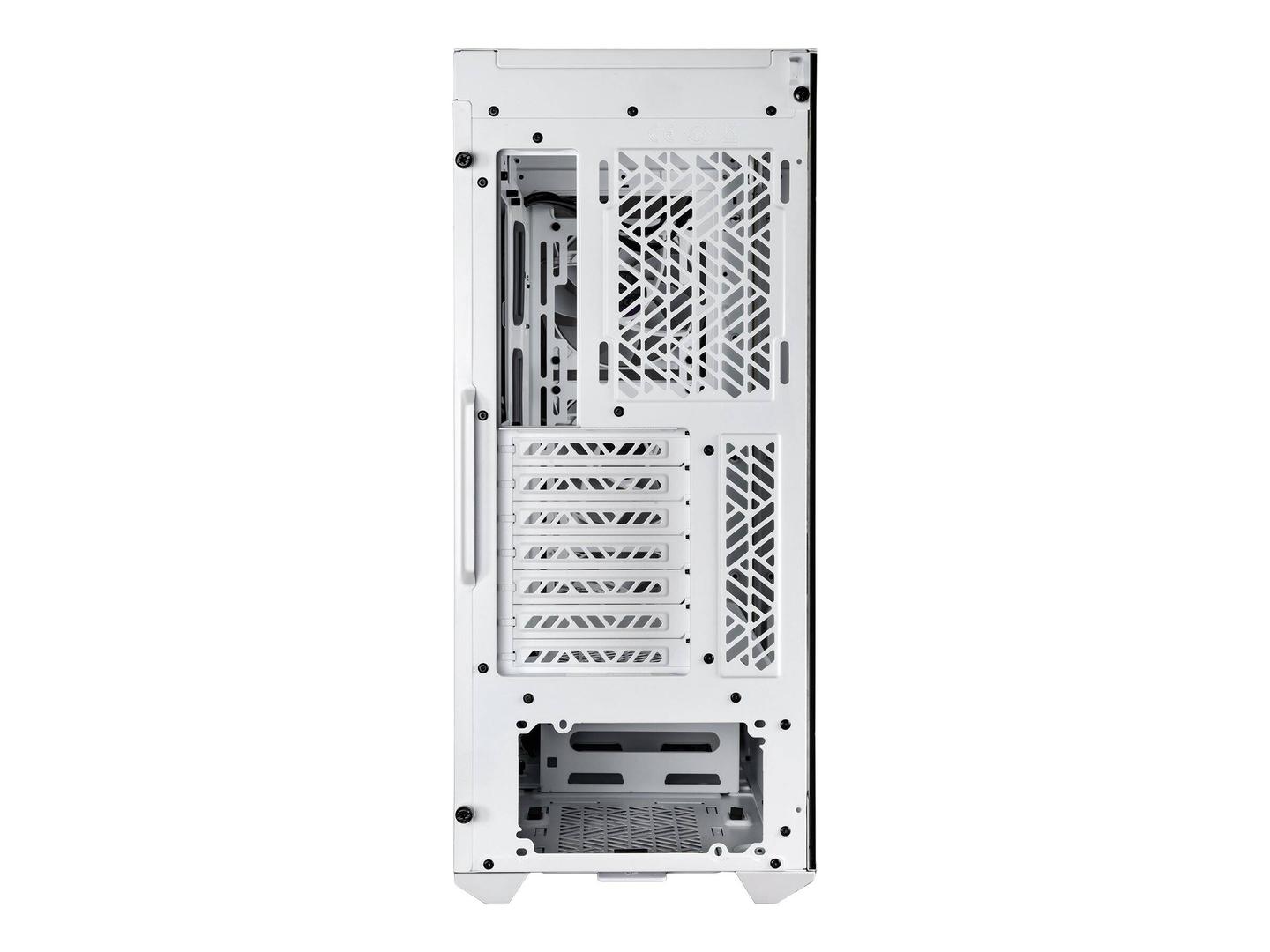

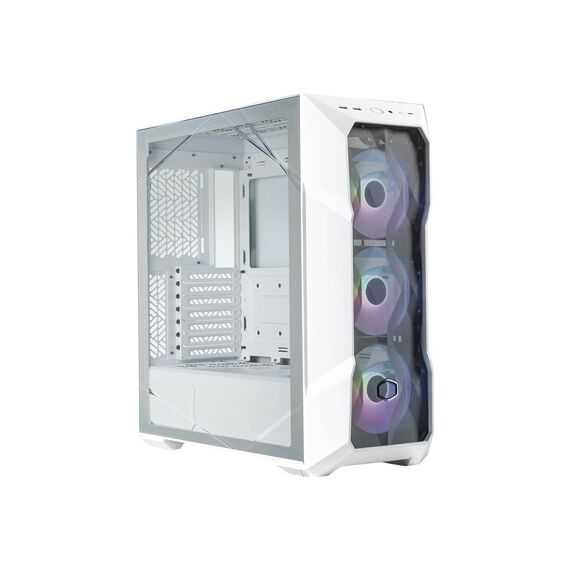

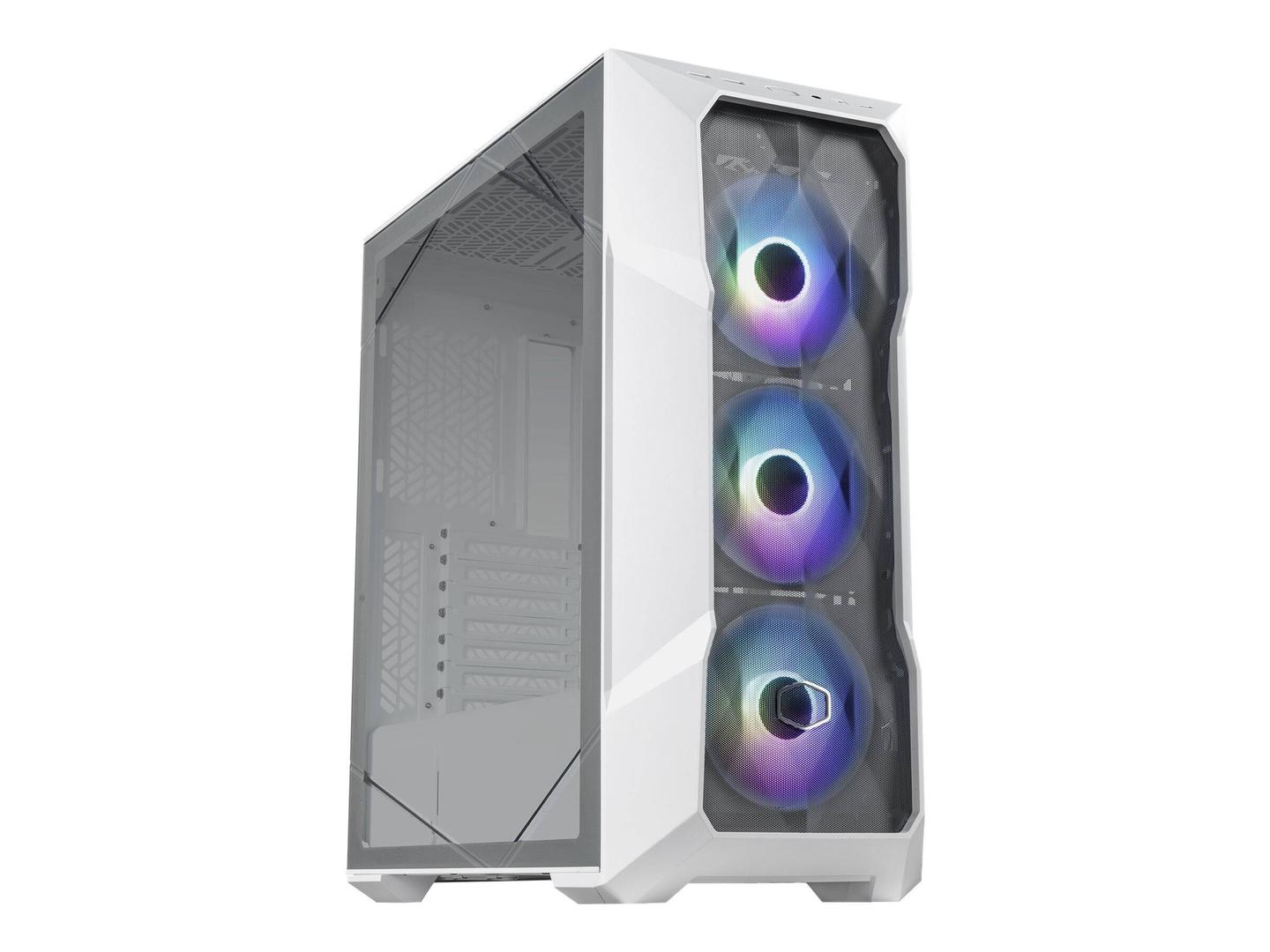

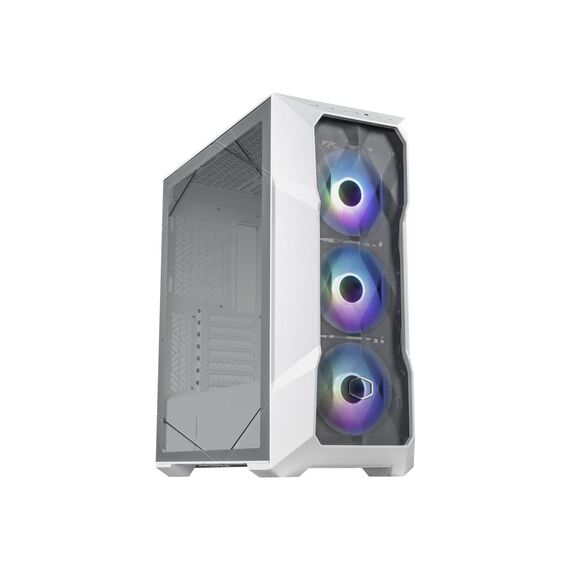

Cooler Master MasterBox TD500 Mesh V2 - Mid tower - SSI CEB - windowed side panel (tempered glass) - no power supply (ATX) - white - USB/Audio | TD500V2-WGNN-S00
Please sign in so that we can notify you about a reply
Product Features

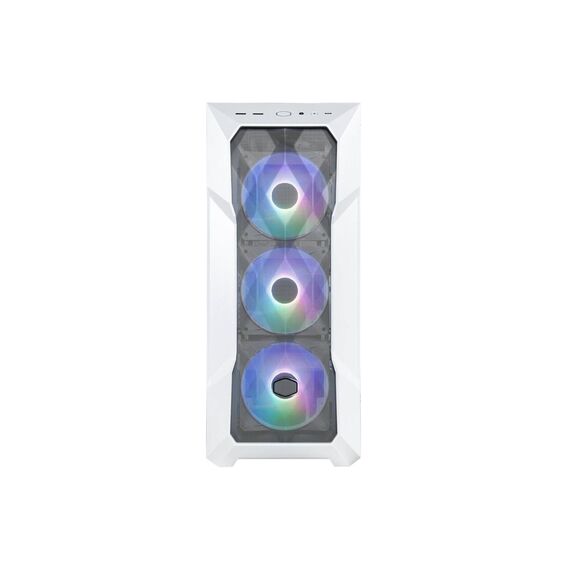

- FineMesh performance front panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration. - Three CF120 ARGB fans included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye catching aesthetics during even the most intense gaming sessions. - USB 3.2 Gen 2 Type-C support
USB 3.2 Gen 2 Type-C port built into the I/O panel allows multi-purpose, streamlined data transmission. - Removable top panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions. - Tool-free crystalline TG side panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals. - PSU shroud with removable cover
MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
Special Fetures
- Polygonal FineMesh front panel
- Three CF120 ARGB fans included
- USB 3.2 Gen 2 Type-C support
- Tool-free crystalline TG side panel
- PSU shroud with removable cover
- Removable top panel
- Removable HDD cage
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | SSI CEB |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX, SSI CEB |
| Max Supported Dimensions | 30.5 cm x 27.2 cm |
| Internal Bays Qty | 5 |
| Built-in Devices | ARGB LED controller, ARGB fan hub |
| Product Material | Plastic, steel, tempered glass |
| Colour | White |
| Cooling System | Front: 120 mm fan x 3 / ARGB fan ¦ Rear: fan mount / 1 x 120 mm fan supported ¦ Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported |
| CPU Cooler Max Height | 165 mm |
| Video Card Max Length | 410 mm |
| Power Supply Max Length | 200 mm |
| System Cabinet Features | Top panel dust filter, meshed front panel, front dust filter, removable top panel, supports 120 mm radiator in rear, removable HDD cage, bottom dust filter, supports 120/140/240/280/360 mm radiator in front panel, supports 120/140/240/280/360 mm radiator in top, tool-less side panel, PSU shroud with removable cover, cable management system (19 mm clearance) |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 3.5" ¦ 3 (total) / 3 (free) x internal - 2.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ USB 3.2 Gen 2 ¦ 1 x audio line-out/line-in - mini-jack |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Width | 21 cm |
| Depth | 49.9 cm |
| Height | 50 cm |
| Weight | 7.7 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 29 cm |
| Shipping Depth | 55.8 cm |
| Shipping Height | 58.4 cm |
| Shipping Weight | 9.2 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Features - Cooler Master - TD500V2-WGNN-S00
More Details
Product Code
04:421059
EAN Code
4719512135358
Manufacturer
Cooler Master
