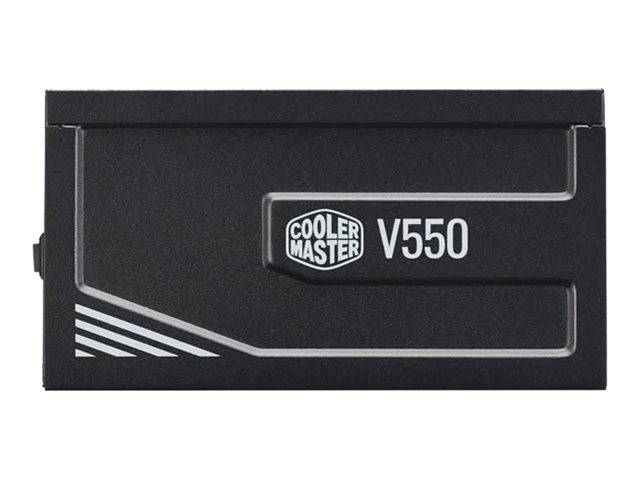

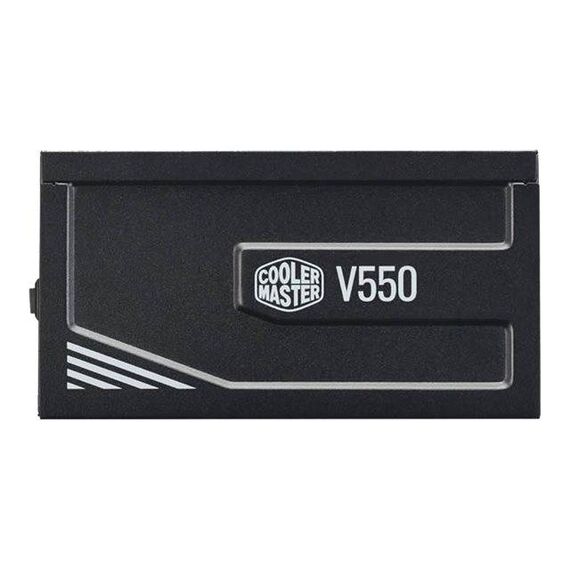

Cooler Master V Series V550 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / active PFC / Europe | MPY-5501-AFAAGV-EU
MPY-5501-AFAAGV-EU
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Cooler Master V Series V550 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / active PFC / Europe | MPY-5501-AFAAGV-EU
Description
Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand. It features outstanding efficiency, especially at typical low idle loads, excellent hold up times, voltage stability and ripple suppression. It only uses highest grade Japanese capacitors, most of them solid capacitors, as well as a massive high quality 42mm transformer.And thanks to high quality FDB fans V-series PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in nice looking clean builds with the best possible airflow.
Cooler Master V Series V550 / Power supply (internal) | MPY-5501-AFAAGV-EU
Special Features
- Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A
- Silent 135 mm FDB fan for lower noise and longer lifespan
- Eight PCI-E 6+2 pin connectors to support high-end GPUs
- 100% high quality capacitor ensures performance and reliability
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | On/off switch for fan, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fluid dynamic bearing cooling fan, fully modular |
| Compliant Standards | BSMI, CB, CCC, FCC, TUV Rh, cTUVus, KC, EAC, RCM, ErP Lot 3 2014 Ready |
| Service & Support | Limited warranty - 10 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.82 kg |
| Shipping Width | 30.3 cm |
| Shipping Depth | 20.2 cm |
| Shipping Height | 12.5 cm |
| Shipping Weight | 2.35 kg |
Features - Cooler Master - MPY-5501-AFAAGV-EU
More Details
Product Code
03:109536
EAN Code
4719512068564
Manufacturer
Cooler Master
