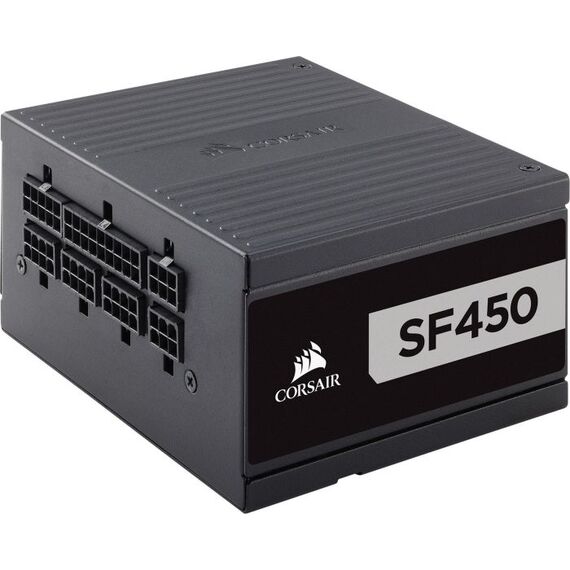

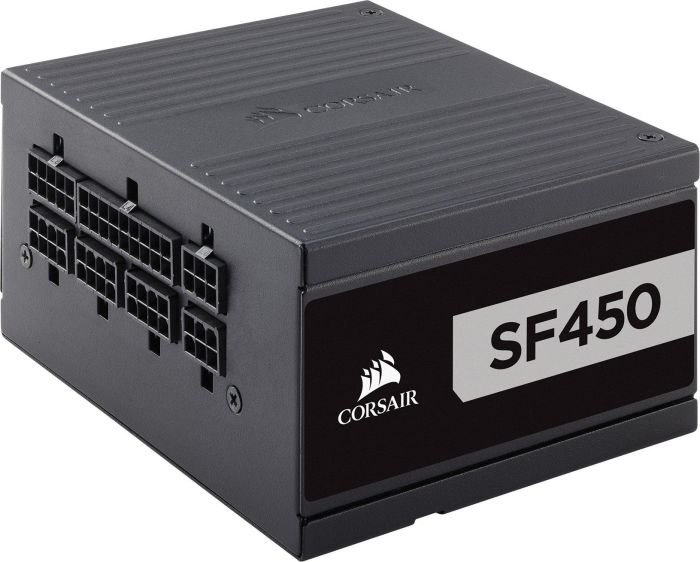

CORSAIR SF Series SF450 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / SFX12V / 80 PLUS Platinum / AC 100-240 V / 450 Watt / Europe | CP-9020181-EU
CORSAIR SF Series SF450 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / SFX12V / 80 PLUS Platinum / AC 100-240 V / 450 Watt / Europe | CP-9020181-EU
Description
SF series power supplies bring legendary Corsair performance and reliability to the SFX small form factor standard. They have the features found in full-size high performance power supplies, with certification for 80 PLUS Gold efficiency, superior voltage regulation, Zero RPM mode for virtually silent operation, and 105°C All Japanese capacitors for better reliability.
CORSAIR SF Series SF450 / Power supply (internal) | CP-9020181-EU
Special Features
- 80 PLUS Gold certified
- SFX form factor
- Fully modular cable set
- 100% all Japanese 105°C capacitors
- Zero RPM fan mode
Product features
- 80 PLUS Gold certified
If you're building a small system that's going to see a lot of use, low heat generation and high efficiency are essential. SF series power supplies operate at greater than 90% efficiency at 50% load on 115 V circuits. - SFX form factor
SF series is designed to the SFX power supply specification for high performance small form factor systems. - Fully modular cable set
The detachable DC cables make builds and upgrades easy, with clean, great-looking results. Use only the power cables you need lets you save valuable internal space and can improve system airflow. - 100% all Japanese 105°C capacitors
Premium internal components ensure solid power delivery and long term reliability. - Zero RPM fan mode
Building a silent PC? SF series power supplies are so efficient that the fan doesn't need to spin at low to medium loads.
Product Specification
Device Type | Power supply - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 / SFX12V |
PSU Form Factor | SFX |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 450 Watt |
Output Current | +3.3V - 15 A ¦ +5V - 20 A ¦ +12V - 37.5 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
Efficiency | 92% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Included Accessories | Screws, case badge, cable ties, cable bag, SFX to ATX bracket |
MTBF | 100,000 hours |
Cooling System | 92 mm fan |
Features | Sleeved cables, Zero RPM fan mode, rifle bearing cooling fan, fully modular |
Service & Support | Limited warranty - 7 years |
Width | 12.5 cm |
Depth | 10 cm |
Height | 6.3 cm |
Weight | 860 g |
Shipping Width | 18.5 cm |
Shipping Depth | 24.6 cm |
Shipping Height | 10.5 cm |
Shipping Weight | 2 kg |
