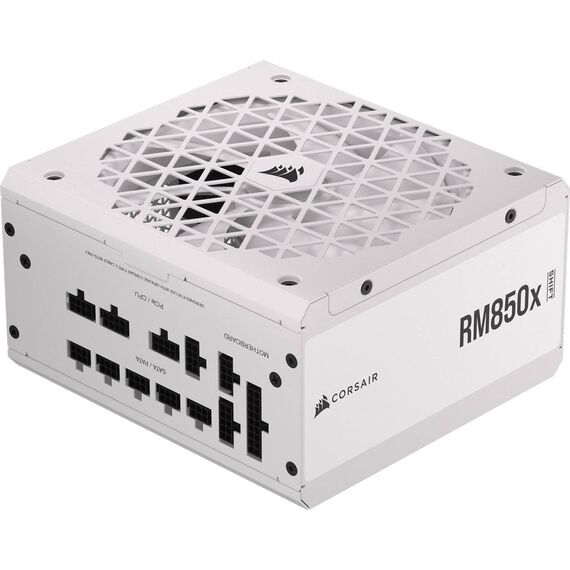

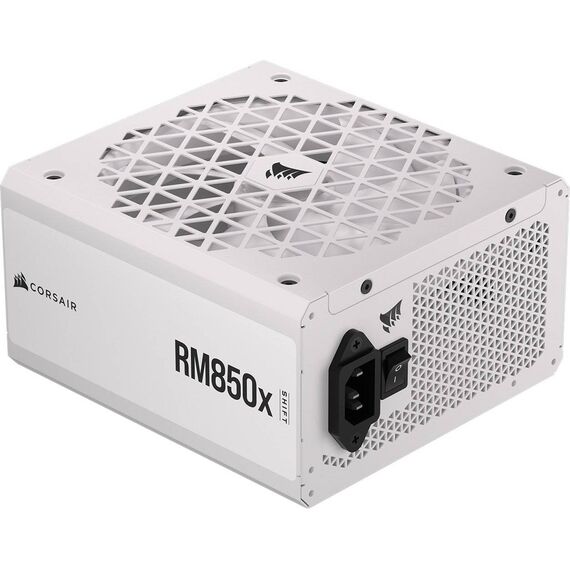

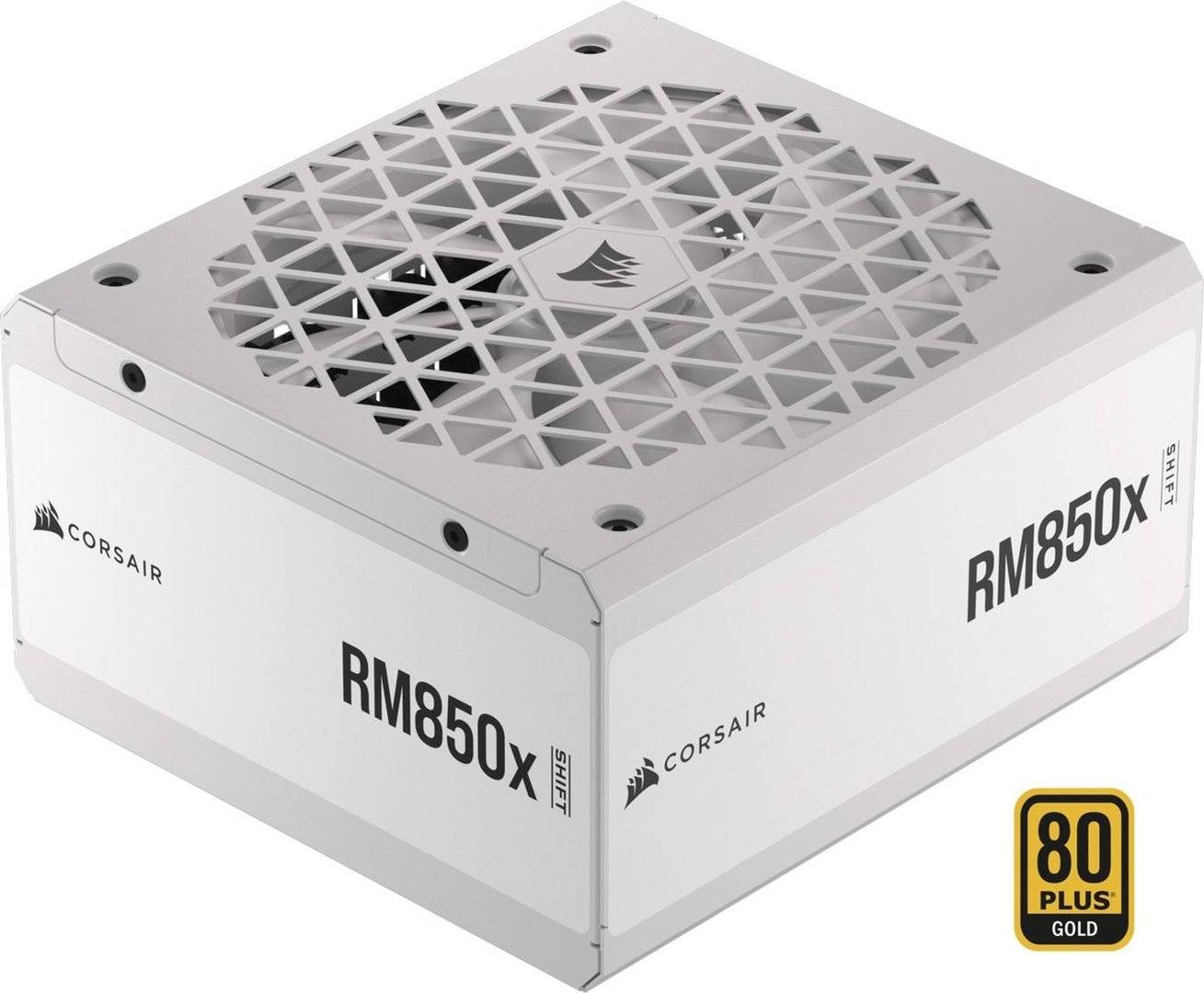

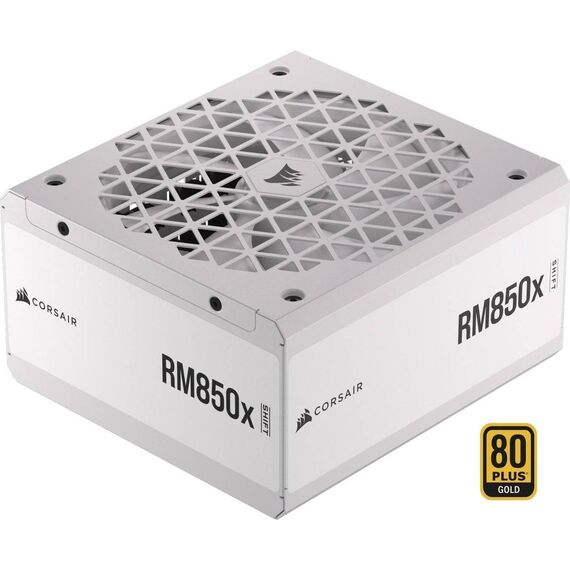

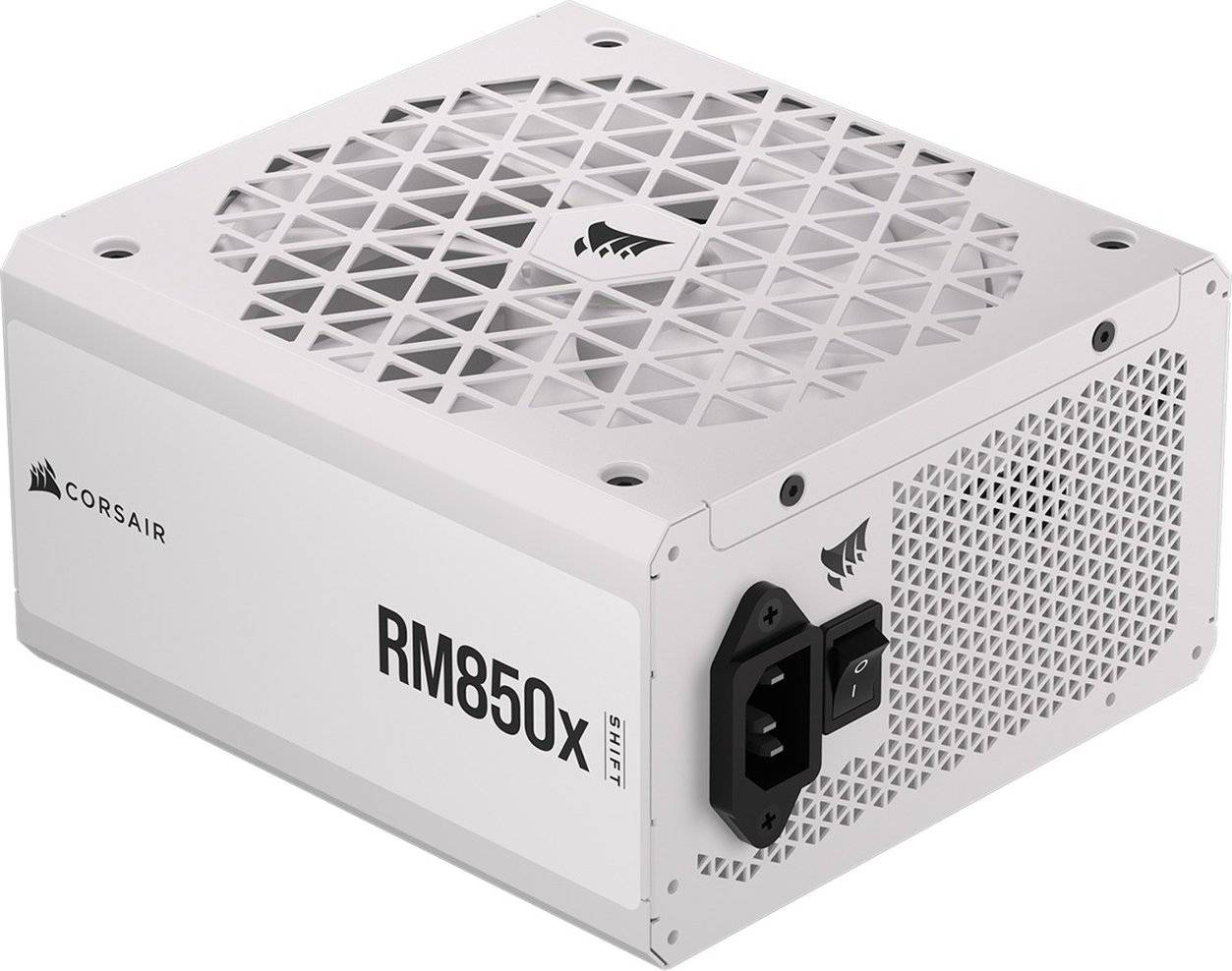

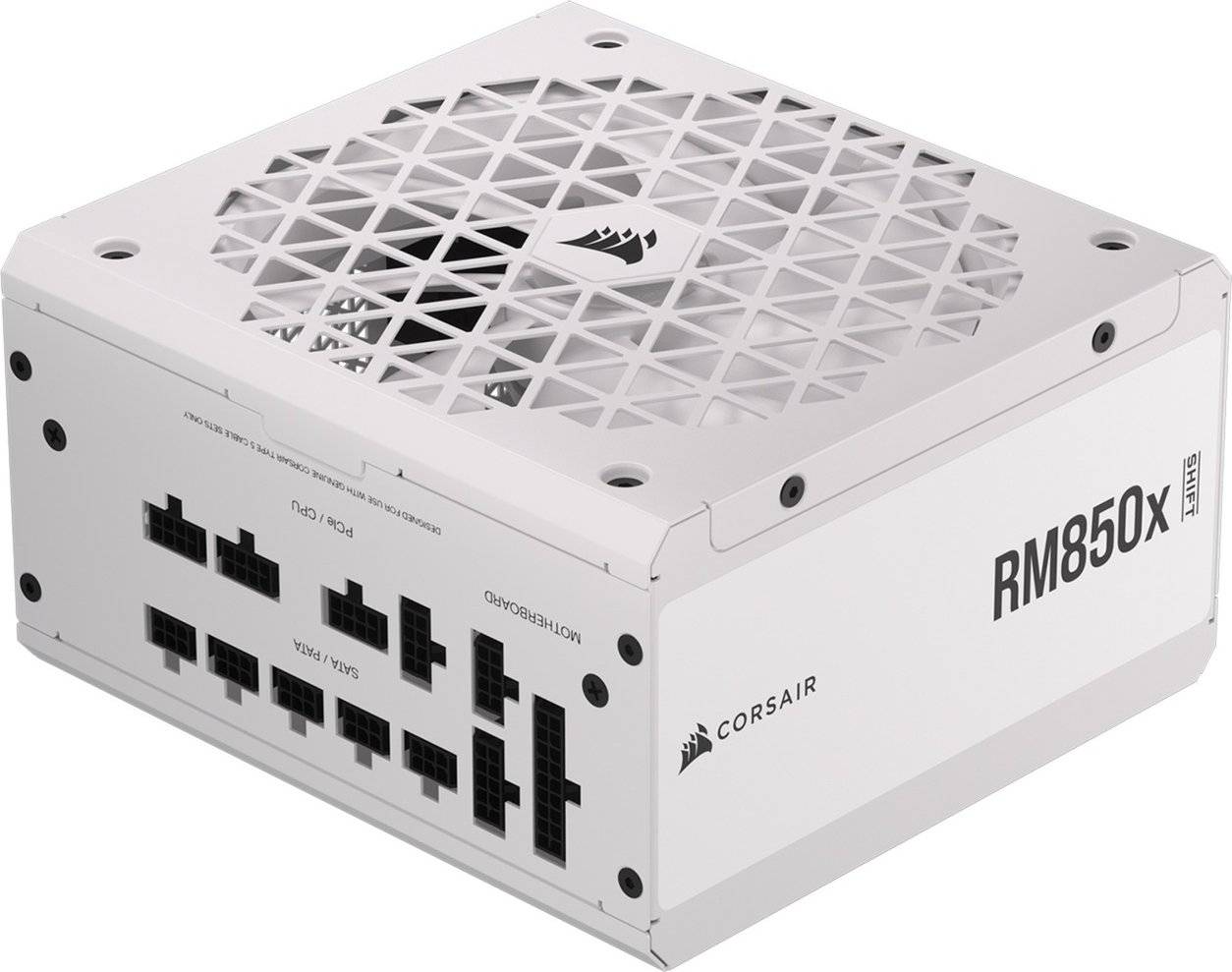

CORSAIR RMx Series RM850X SHIFT / Power supply (internal) / ATX12V 3.0/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 850 Watt / white | CP-9020274-EU
Please sign in so that we can notify you about a reply
Product Features
- Side mounted connections
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before. - ATX 3.0 certified
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT series PSUs are formally certified for ATX 3.0 compliance. - CORSAIR Type 5 micro-fit connectors
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space. - 140 mm fan with zero RPM mode support
A low-friction, fluid dynamic bearing 140 mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load. - 80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures. - 105°C-rated capacitors
Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
Special Features
- Side mounted connections
- ATX 3.0 certified
- CORSAIR Type 5 micro-fit connectors
- 140 mm fan with zero RPM mode support
- 80 PLUS Gold certified
- 105°C-rated capacitors
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | White |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power |
| Output Voltage | +3.3, +5, +12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties, mounting screw |
| Cables Included | AC input cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 16-pin 12VHPWR power cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ Power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm ¦ 3 x power 15 pin SATA cable 80 cm ¦ 2 x 4 pin internal power cable 75 cm |
| MTBF | 100,000 hours |
| Cooling System | 140 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Standby compatible, side connections |
| Compliant Standards | EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 1.45 kg |
