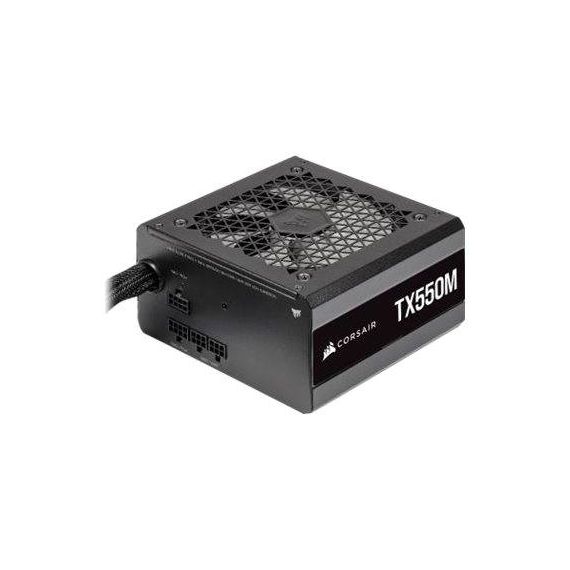

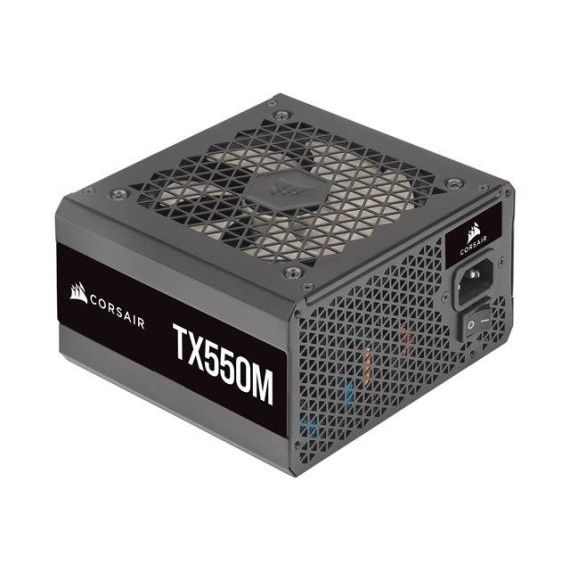

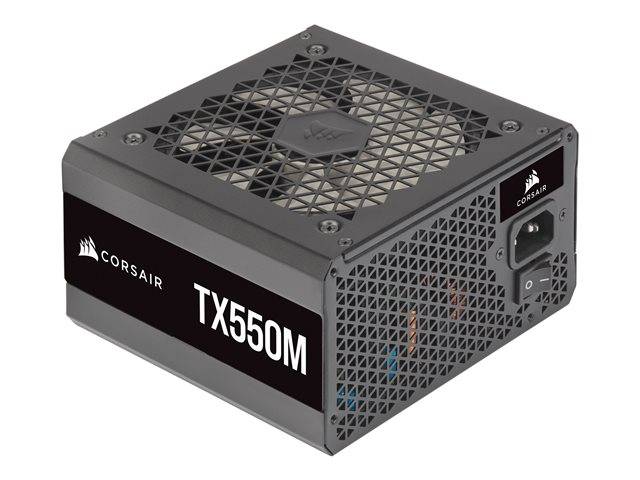

CORSAIR TX-M Series TX550M / 2021 / power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / Europe | CP-9020228-EU
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Localisation | Europe |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |

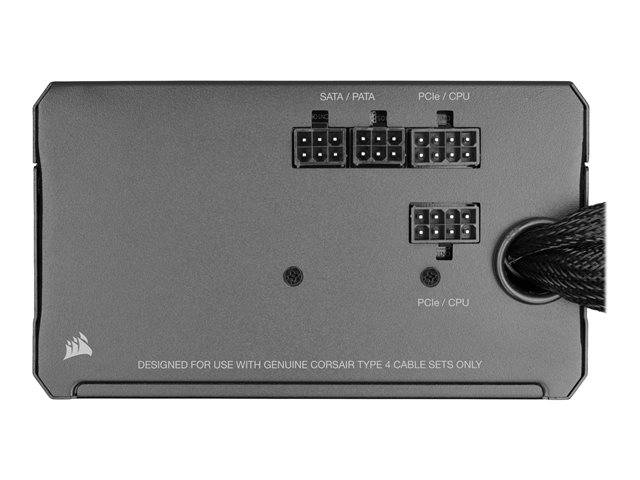

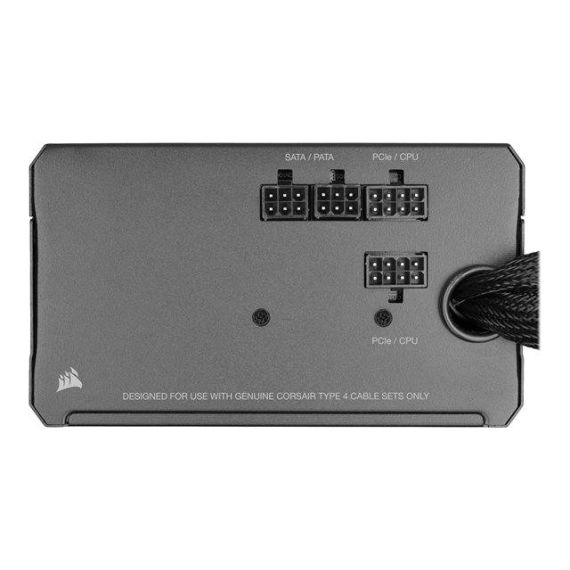

| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 3 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 25 A ¦ +5V - 20 A ¦ +12V - 43 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |

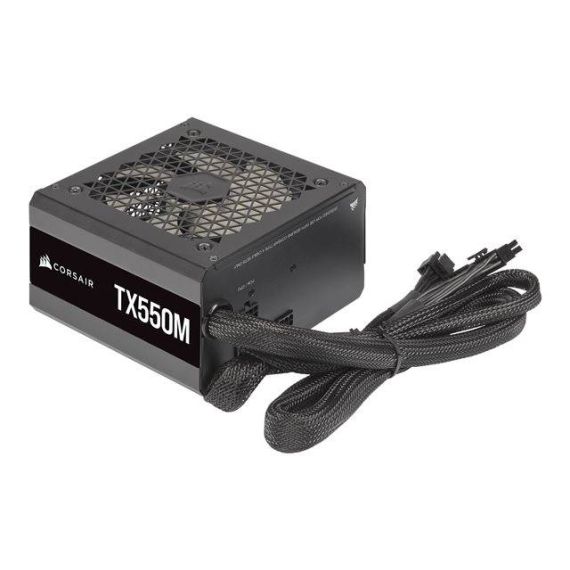

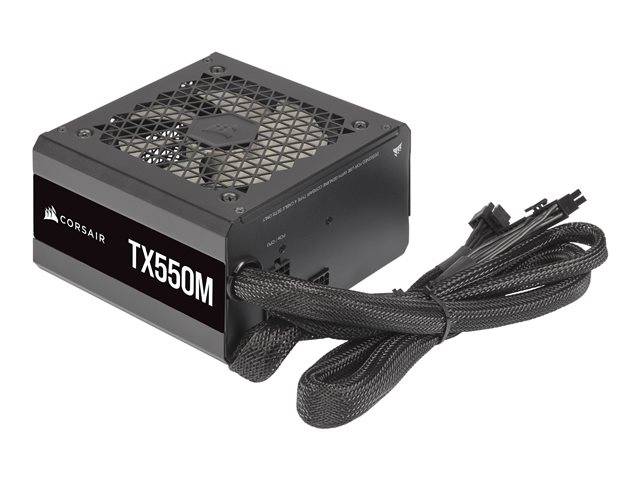

| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |

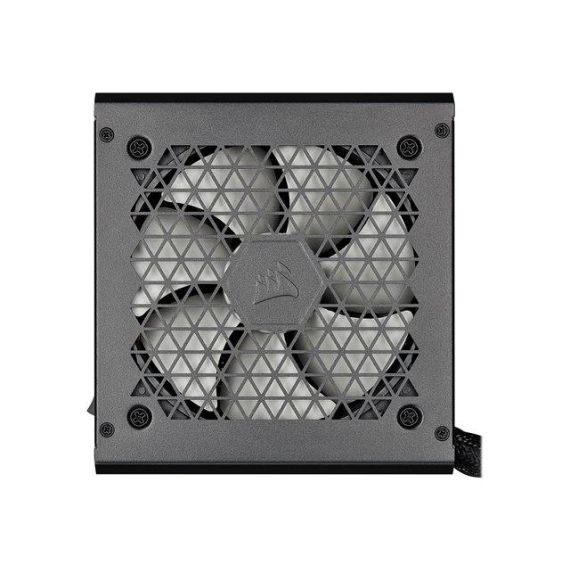

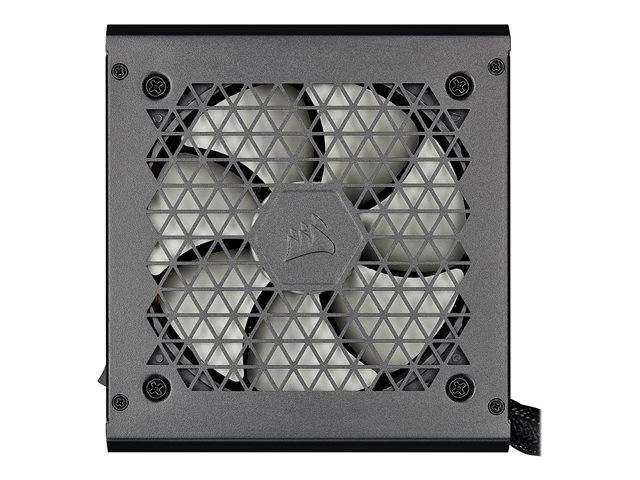

| Cooling System | 120 mm fan |
| Features | Hydrodynamic bearing cooling fan, semi-modular, LLC resonant converter technology, Modern Standby compatible |
| Service & Support | Limited warranty - 7 years |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.54 kg |
| Shipping Width | 18.4 cm |
| Shipping Depth | 26.6 cm |
| Shipping Height | 9.6 cm |
| Shipping Weight | 2.08 kg |
Features - Corsair - CP-9020228-EU
More Details
Product Code
03:163304
EAN Code
0840006625537
Manufacturer
Corsair
