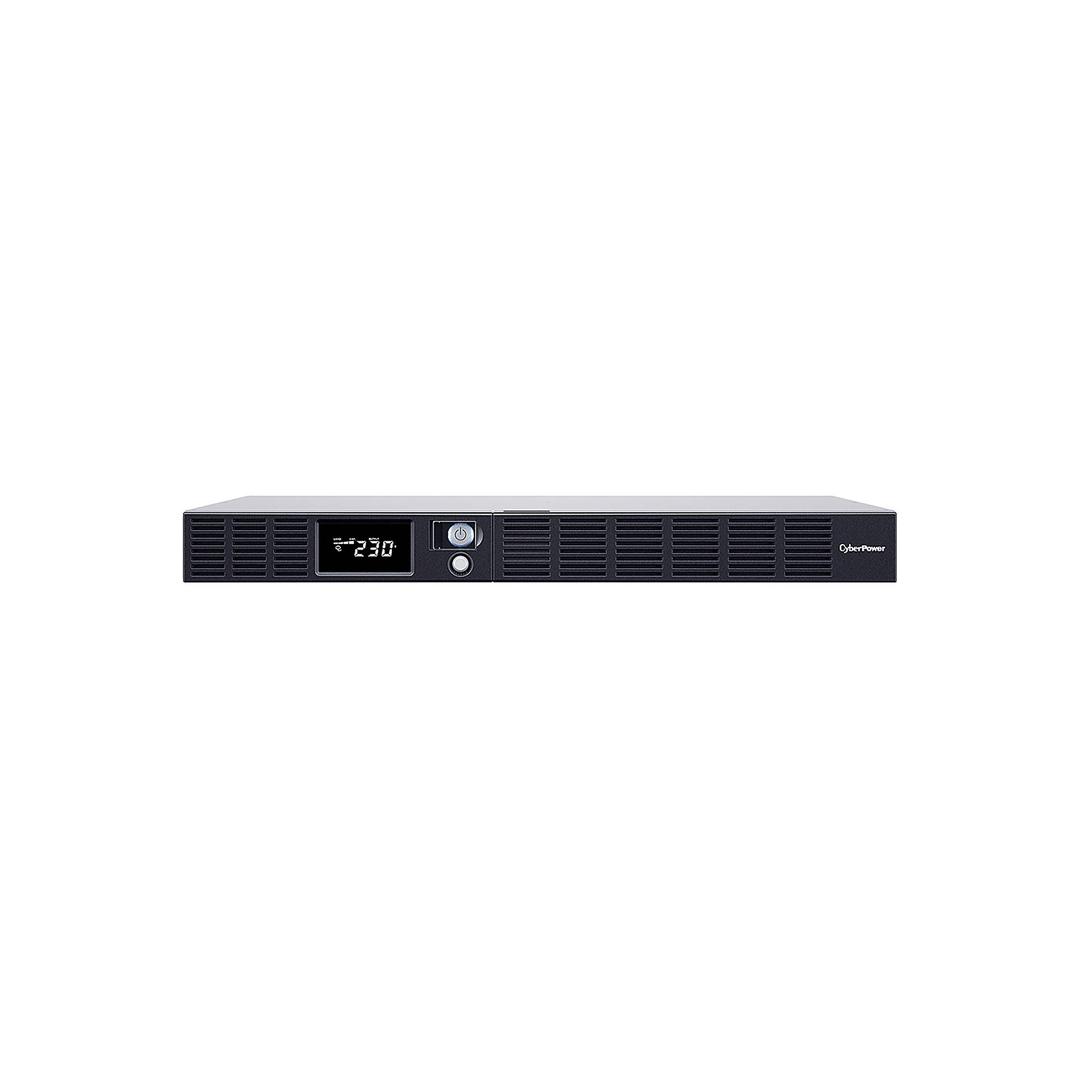

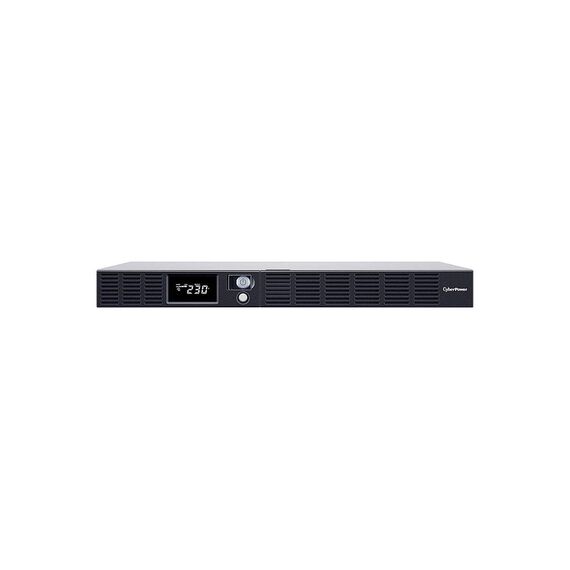

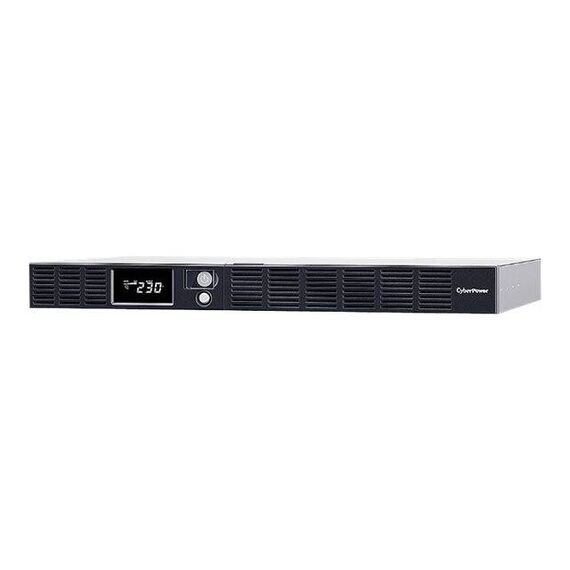

CyberPower Office Rackmount Series OR1500ERM1U - UPS (rack-mountable) - AC 230 V - 900 Watt - 1500 VA - 1-phase - Ethernet, RS-232, USB - output connectors: 6 - 1U - silver | OR1500ERM1U
Please sign in so that we can notify you about a reply
Special Fetures
- GreenPower UPS technology
- Automatic Voltage Regulator (AVR)
- Multiple outputs for multiple servers
- Multiple communication interface
- Programmable brownout and over voltage protection
- Microprocessor based full digital control
- EMI, RFI, surge and spike protection
- Auto restart/auto charge
- User-replaceable batteries
- LCD status monitor
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Colour | Silver |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 - 271 V |
| Input Voltage Range (Adjustable) | AC 253 - 271 / 189 - 207 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |

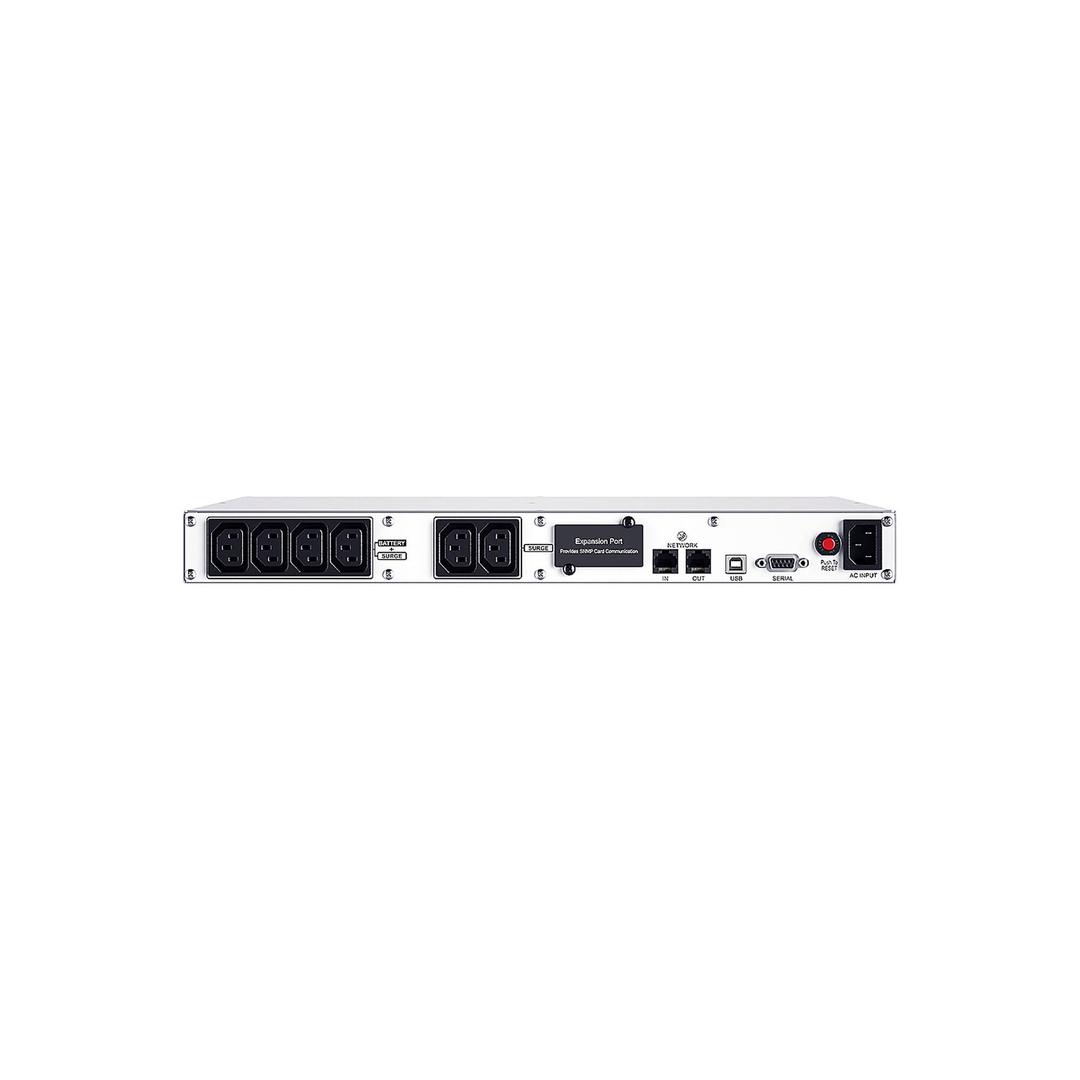

| Power Output Connectors Details | 4 x power IEC 60320 C13 (UPS and surge) ¦ 2 x power IEC 60320 C13 (surge) |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Power Capacity | 900 Watt / 1500 VA |
| Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Energy Rating | 810 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.6 |
| Battery | |
| Quantity | 1 |
| Technology | Lead Acid |
| Run Time (Up To) | 2.5 min at full load ¦ 11 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
| Networking | |
| Remote Management Interface | Ethernet, RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x LAN - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
| Miscellaneous | |
| Cables Included | USB cable - external ¦ Power cable - integrated - 1.83 m |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, GreenPower UPS Bypass Technology |
| Compliant Standards | RoHS |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 43.3 cm |
| Depth | 38.9 cm |
| Height | 4.4 cm |
| Weight | 14.9 kg |
Features - CyberPower - OR1500ERM1U
More Details
Product Code
03:145215
EAN Code
4712856274288
Manufacturer
CyberPower
