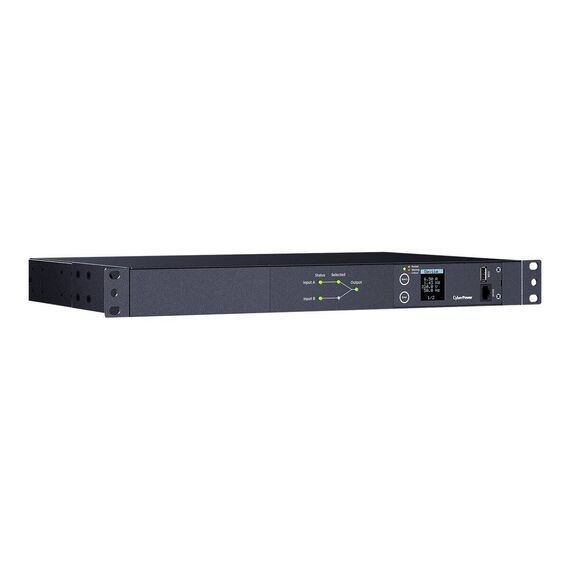

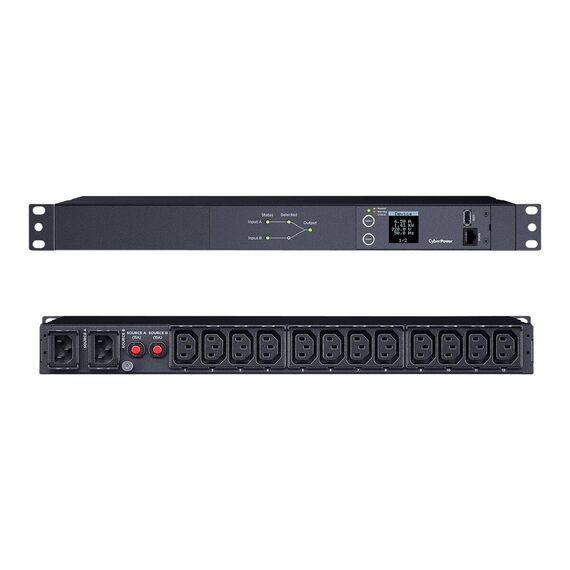

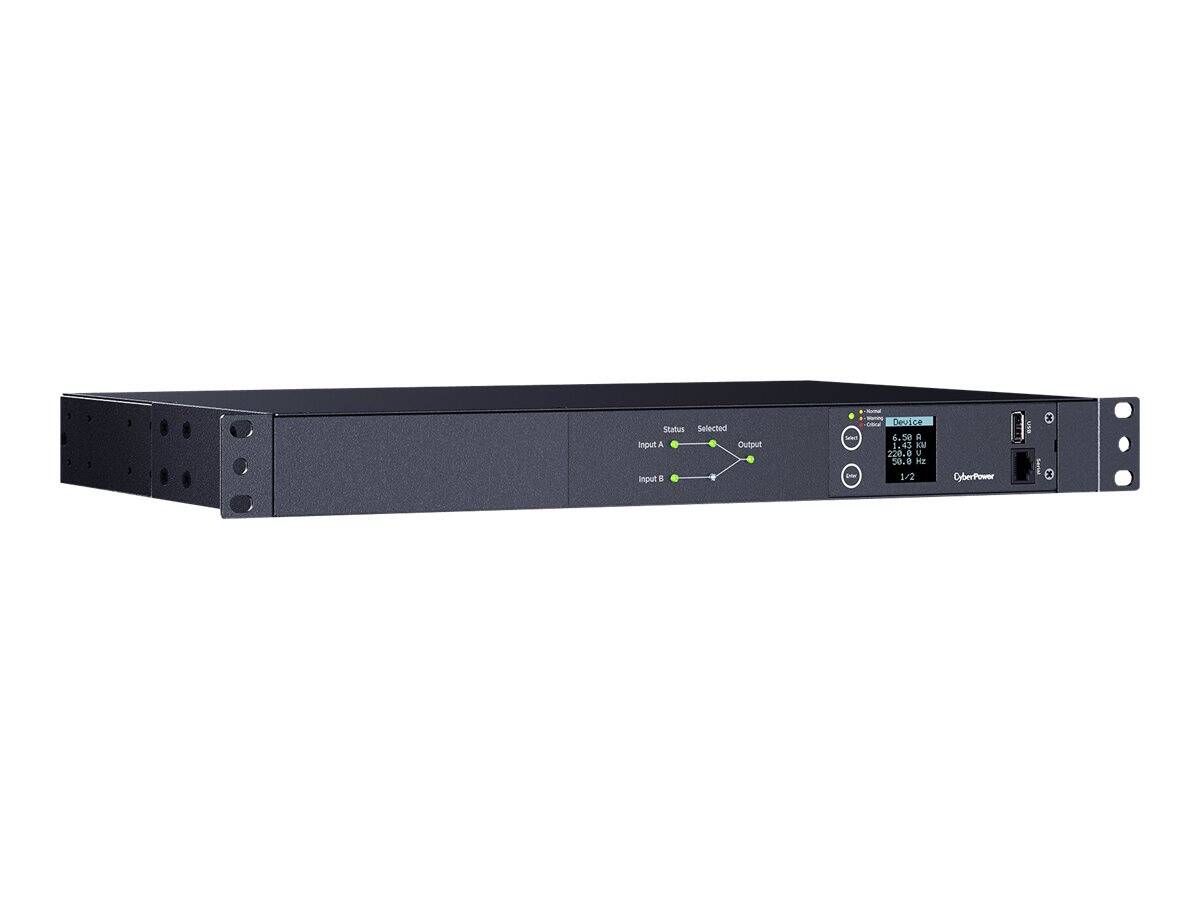

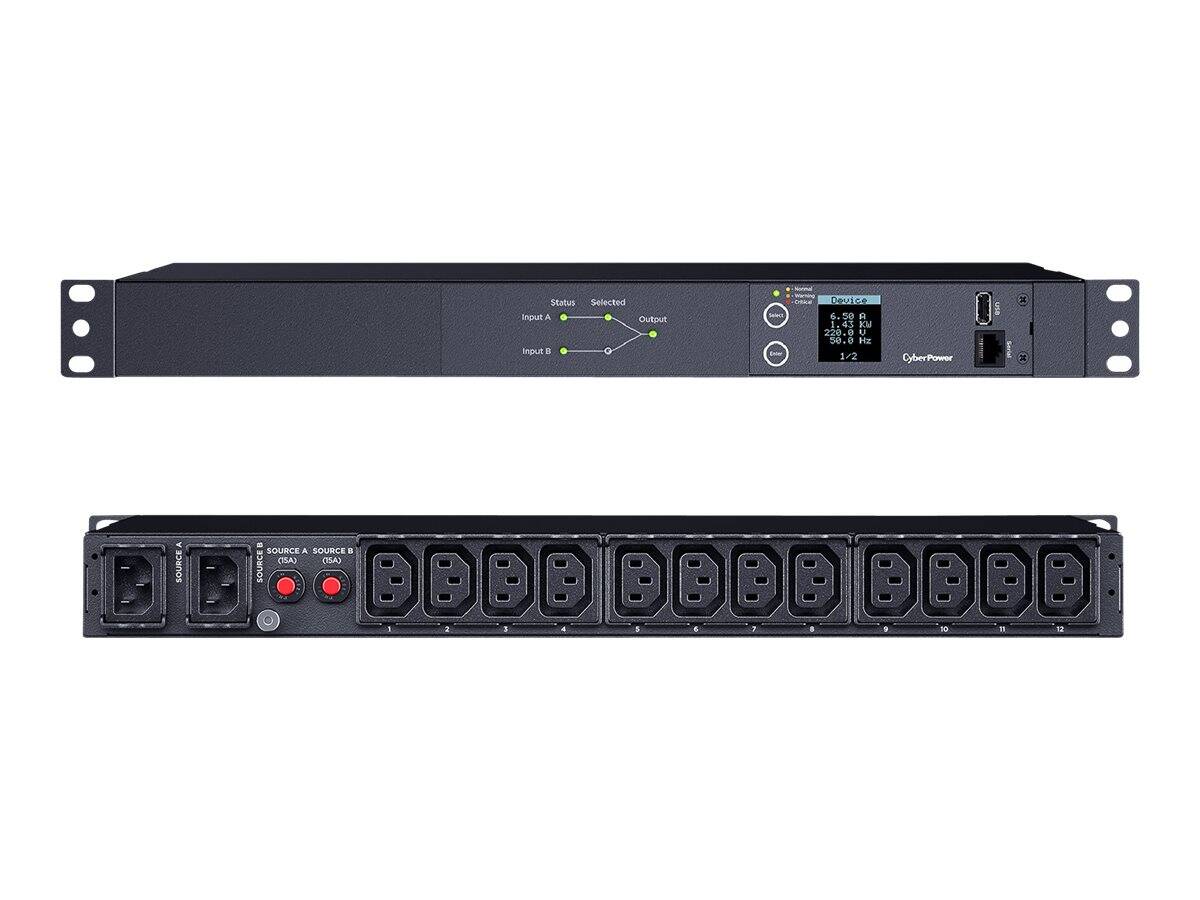

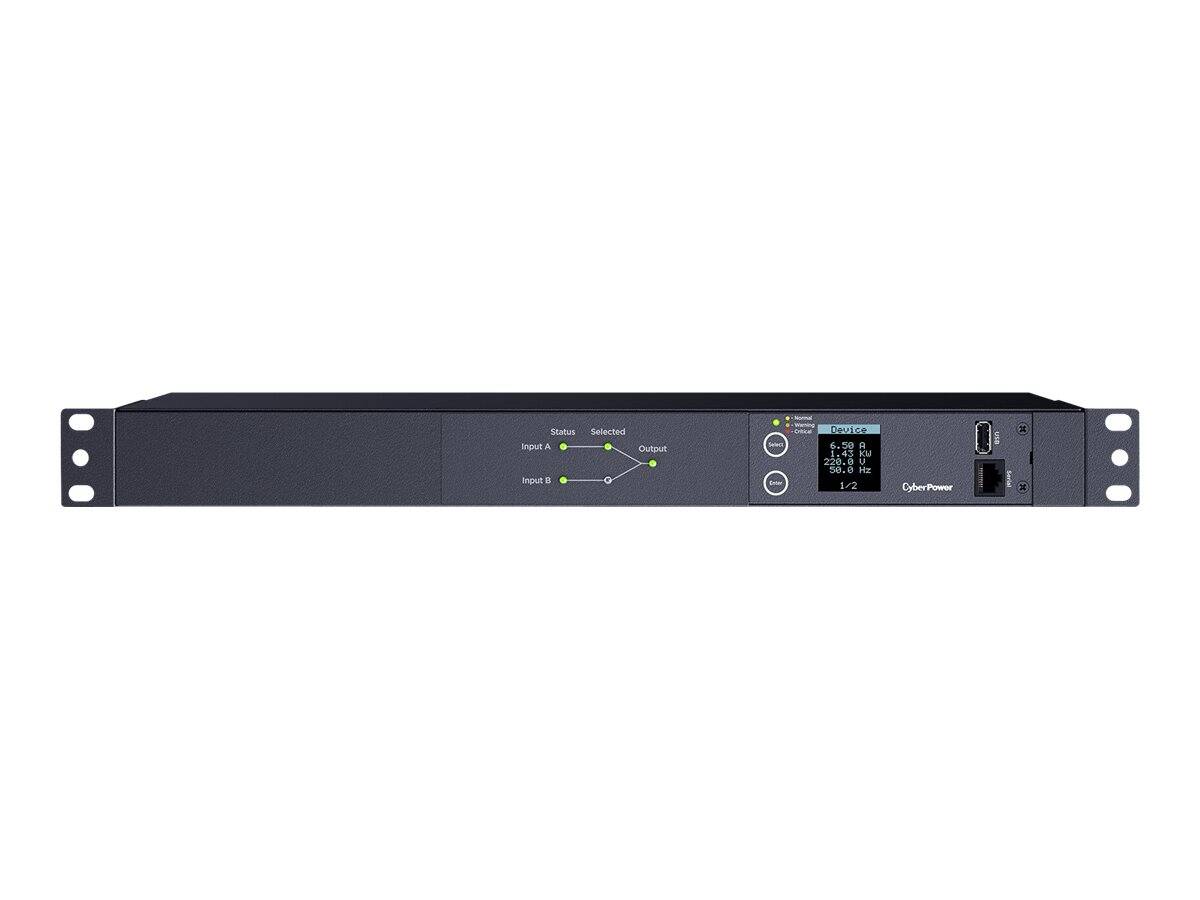

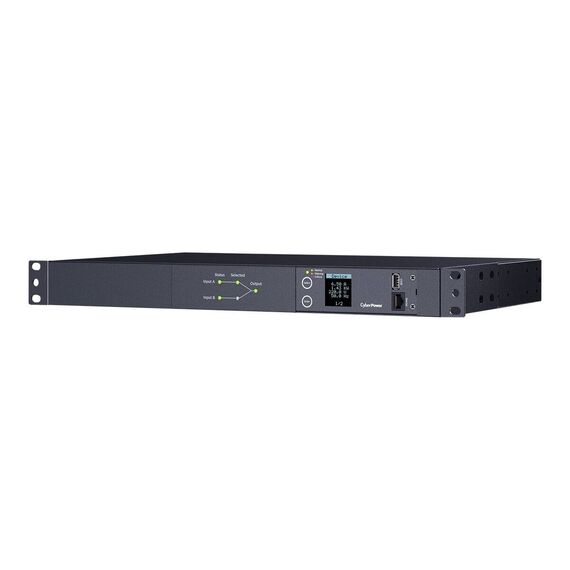

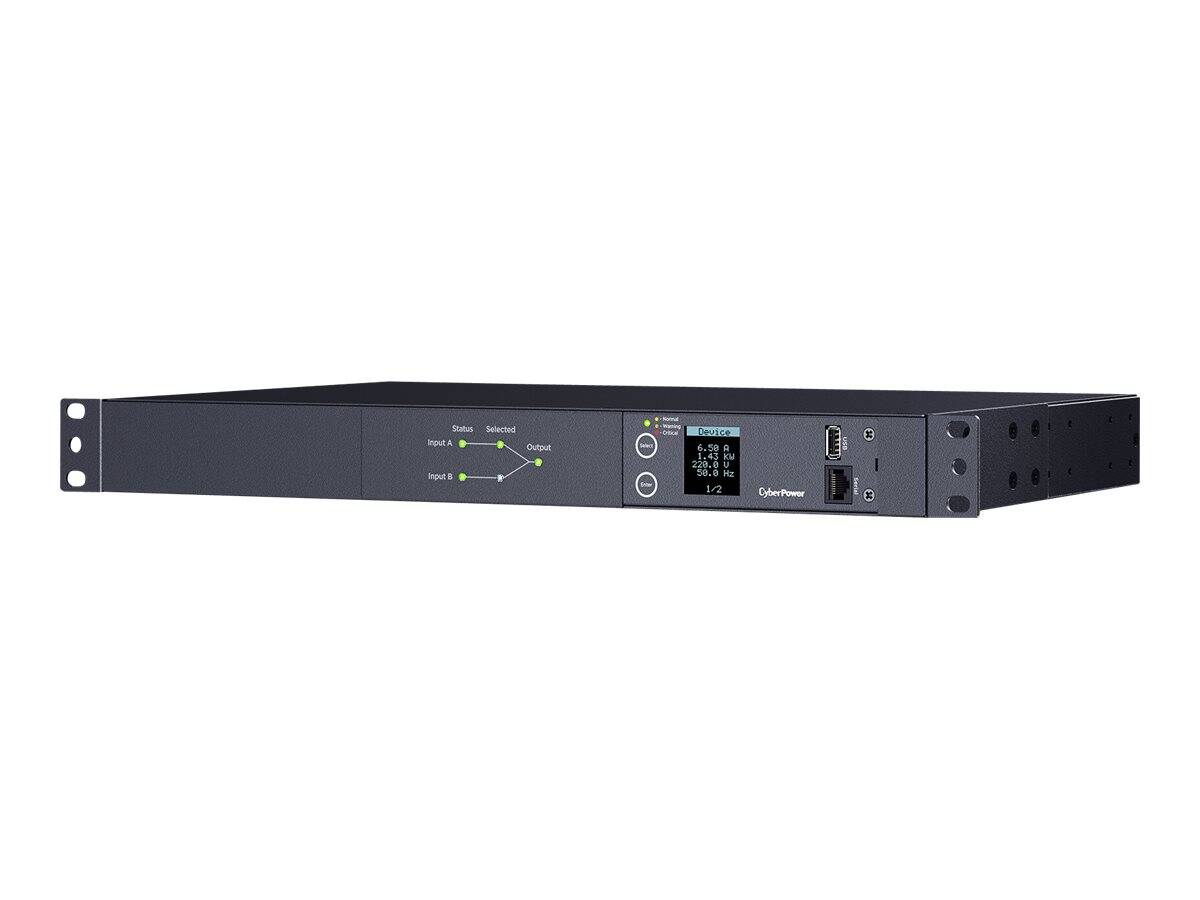

CyberPower Metered ATS Series PDU24004 / Power distribution unit (rack-mountable) / AC 200-240 V / 1-phase / serial / input: 2 x IEC 60320 C14 / output connectors: 12 (12 x IEC 60320 C13) / 1U / 3.05 m cord / black | PDU24004
Please sign in so that we can notify you about a reply
Special Features
- Real-time Local Monitoring
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
- Dual Inputs
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 3.05 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power IEC 60320 C14 |
| Power Output Connectors Details | 12 x power IEC 60320 C13 |
| Max Electric Current | 12 A |
| Circuit Protection | Circuit breaker |
| Networking | Networking |
| Remote Management Interface | Serial |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mount brackets, screws, cable ties, cord retention tray |
| Cables Included | 2 x power cable - external - 3.05 m ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | LCD display, Automatic Transfer Switch (ATS), firmware upgradable |
| Compliant Standards | FCC Class A certified, RoHS, EN 55032 Class A, IEC 62368, UL 62368 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.3 cm |
| Depth | 21.5 cm |
| Height | 4.4 cm |
| Weight | 3.5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 55 cm |
| Shipping Depth | 39.8 cm |
| Shipping Height | 12.5 cm |
| Shipping Weight | 5.7 kg |
