Home/Power Protection/UPS/CyberPower Smart App Online OL1000ERTXL2U / UPS / 900 Watt / 1000 VA 7.2 Ah / RS-232, USB / output connectors: 8 / 2U | OL1000ERTXL2U

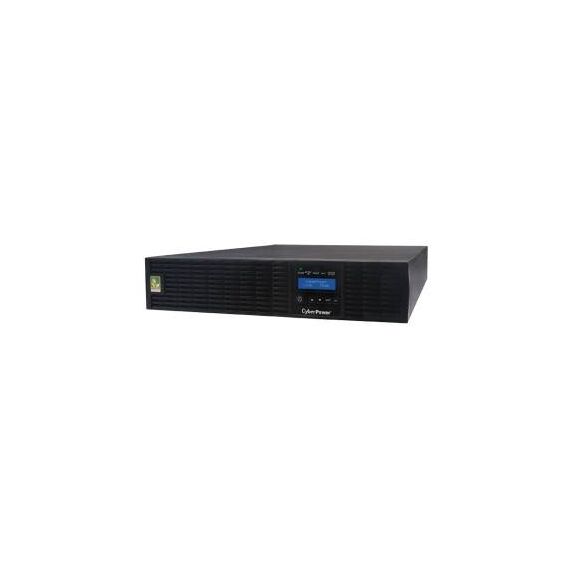

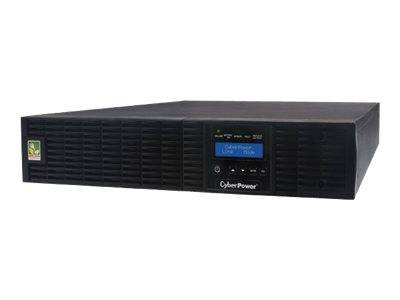

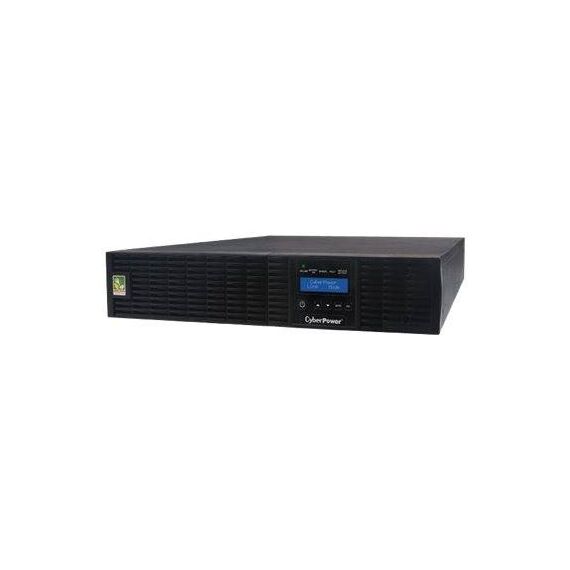

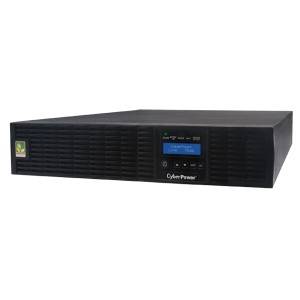

CyberPower Smart App Online OL1000ERTXL2U / UPS / 900 Watt / 1000 VA 7.2 Ah / RS-232, USB / output connectors: 8 / 2U | OL1000ERTXL2U

Description
Features

CyberPower Smart App Online OL1000ERTXL2U / UPS / 900 Watt / 1000 VA 7.2 Ah / RS-232, USB / output connectors: 8 / 2U | OL1000ERTXL2U

Description

The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require pure sineware power protection. Featuring online double conversion design and zero transfer time, it can provide consistent and seamless pure sinewave power to critical loads. With the add-on advantage of extended runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility.

Special Features

2U rack space
Pure sinewave output
Online (Double Conversion) UPS topology
Rack/tower convertible configurations
EMI, RFI, surge and lightning spike protection
Critical load outlets
Phone/fax/modem/DSL/network protection
Auto-restart/auto-charge
Emergency Power Off (EPO) port
Multifunction LCD readout
Rotatable LCD indicator
USB & serial connectivity ports
Extended Runtime (XL) models
Hot-swappable battery packs
Dual input
Smart fan speed control by load level
Economy mode setting
Smart Battery Management(SBM)
Remote control/wall-mountable LCD panel
Generator mode setting
Equipment protection policy up to 100,000 euros

Product Specification

Device Type	UPS - external
Battery Enclosure Type	Plug-in module
Height (Rack Units)	2U
UPS Technology	On-line
Input Voltage Range	AC 120 - 280 V
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Connectors	1 x power IEC 320 EN 60320 C14
Power Output Connectors Details	8 x power IEC 320 EN 60320 C13
Output Voltage	AC 200/208/220/230/240 V ± 2% - 50/60 Hz
Power Capacity	900 Watt / 1000 VA
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11
Output Waveform	Sinewave
Surge Suppression	Yes
Efficiency	93%
Quantity	3
Technology	Lead Acid
Voltage Provided	12 V
Capacity	7.2 Ah
Run Time (Up To)	4 min at full load ¦ 11 min at half load
Recharge Time	4 hours
Remote Management Interface	RS-232, USB
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 PIN USB Type B ¦ 1 x EPO (emergency power off)
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Equipment Protection Value	100000 Euros
Features	Audible alarm, LCD display, LED indicators, overload protection, cold-start function, short-circuit protection, Eco-efficiency, temperature controlled fan, Smart Battery Management (SMB)
Compliant Standards	IEC 61000-4-5, PCT, RoHS
Software Included	PowerPanel Business Edition
OS Required	Apple MacOS, Linux, Microsoft Windows 2000 Professional, Microsoft Windows 98/ME, Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Server 2008
Width	43.3 cm
Depth	43 cm
Height	8.8 cm
Weight	16 kg
