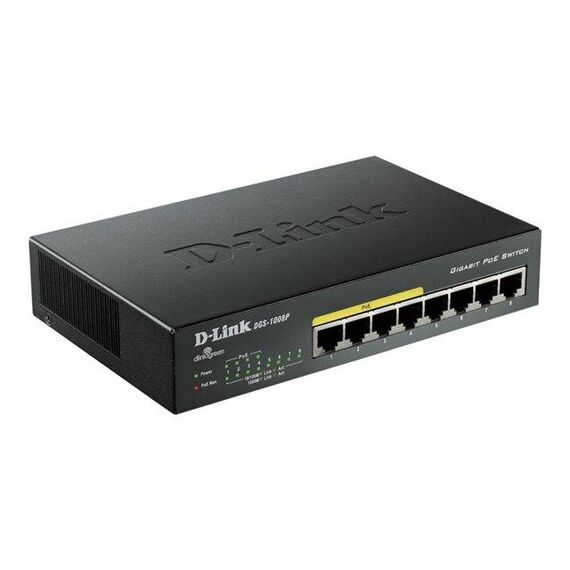

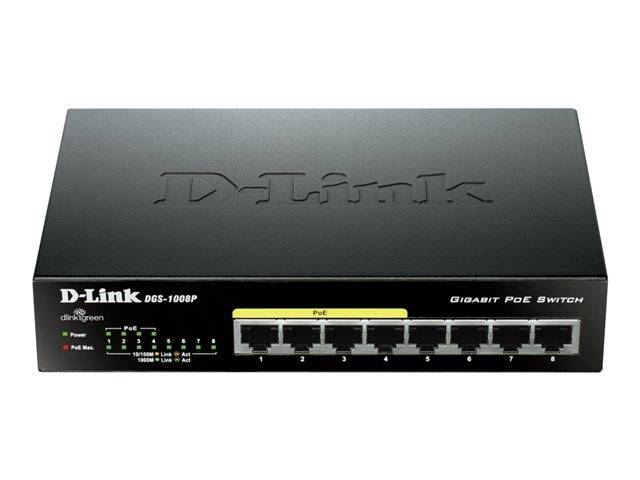

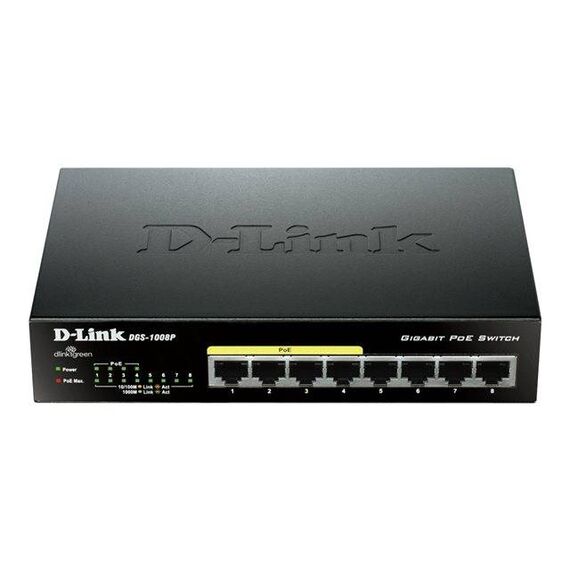

D-Link DGS-1008P 8-Port PoE Gigabit Desktop Switch / Switch / unmanaged / 4 x 10/100/1000 (PoE) + 4 x 10/100/1000 / desktop / PoE | DGS-1008P/E

D-Link-DGS1008PE-Networking

Hover over an image to enlarge

99.02
(Including VAT)
324 item(s)
+
DGS-1008P/E
Product Code:5843672
EAN Code:0790069344176
Manufacturer:D-Link
General:8-Port

Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

D-Link DGS-1008P 8-Port PoE Gigabit Desktop Switch / Switch / unmanaged / 4 x 10/100/1000 (PoE) + 4 x 10/100/1000 / desktop / PoE | DGS-1008P/E

Description

The DGS-1008P PoE Gigabit Desktop switch provides a cost-effective way for SOHO and SMB to benefit from the Power over Ethernet (PoE) technology by allowing users to power up devices such as wireless access points, network cameras or IP phones directly from the network cables. The DGS-1008P is equipped with Gigabit ports for faster speeds, and integrates D-Link's Green Ethernet technology to save power when the switch is not in use. Its fanless design makes it completely silent so it is ideal for offices, libraries or meeting rooms.The first four ports of the DGS-1008P support the IEEE 802.3af PoE standard. Each of these four ports can supply up to 15.4 Watts, making it a very convenient solution for applications that are far away from power outlets, or when it is necessary to minimize the clutter of extra power supplies. The switch will automatically detect the power that a connected PoE device requires so no configuration is needed. A failsafe mechanism will cut off the power in case of an unexpected PoE overload, protecting both the switch and the connected device.Every time the DGS-1008P is powered up, it runs a micro diagnostics routine to check the integrity of the connected Ethernet cables. If a failure is detected, the switch will flag it by means of its front panel LEDs, making it easy for the user to troubleshoot wiring problems.Despite being an unmanaged, Plug and Play switch, the DGS-1008P is able to classify network traffic by assessing the existing 802.1p and DSCP fields in the Ethernet frames and IP packets respectively, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.The DGS-1008P is part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the Green Ethernet technology, which can save a substantial amount of energy by detecting the connected cable lengths, adjusting the power accordingly; and the port status, putting them in low-power, stand-by mode when no network traffic is detected. Thanks to these power reductions, D-Link has been able to remove the fans in the DGS-1008P's design, making it completely silent and dramatically increasing its lifespan.

Special Features

  • Plug and play operation
  • 4 PoE ports
  • Gigabit speed
  • Non-blocking architecture: simultaneous full speed on all ports
  • Fanless, silent operation to fit in any environment
  • Quality of Service (QoS) queues for traffic prioritization
  • Cable diagnostics function to help troubleshoot wiring problems
  • Safety function to prevent PoE overloads, protects both the switch and the connected PoE devices
  • Green Ethernet technology, saves energy and increases the product's lifespan

Product features

  • Plug and play Power over Ethernet (PoE)
    The first four ports of the DGS-1008P support the IEEE 802.3af PoE standard. Each of these four ports can supply up to 15.4 Watts, making it a very convenient solution for applications that are far away from power outlets, or when it is necessary to minimize the clutter of extra power supplies. The switch will automatically detect the power that a connected PoE device requires so no configuration is needed. A failsafe mechanism will cut off the power in case of an unexpected PoE overload, protecting both the switch and the connected device.
  • Cable diagnostics function
    Every time the DGS-1008P is powered up, it runs a micro diagnostics routine to check the integrity of the connected Ethernet cables. If a failure is detected, the switch will flag it by means of its front panel LEDs, making it easy for the user to troubleshoot wiring problems.
  • QoS (Quality of Service)
    Despite being an unmanaged, plug and play switch, the DGS-1008P is able to classify network traffic by assessing the existing 802.1p and DSCP fields in the Ethernet frames and IP packets respectively, and forward traffic from its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
  • Auto MDI/MDIX crossover
    All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
  • Power-saving technology
    The DGS-1008P 8-Port Gigabit Switch makes use of D-Link Green eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as link status and cable length detection. The link status feature automatically powers down ports that have no activity on their links, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the product's lifespan and also reduces noise.

Product Specification

Device Type Switch - 8 ports - unmanaged
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 4 x 10/100/1000 (PoE) + 4 x 10/100/1000
Power Over Ethernet (PoE) PoE
MAC Address Table Size 4K entries
Features Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), packet filtering, store and forward, Quality of Service (QoS), Jumbo Frames support, Green Ethernet, Cable Diagnostics Function
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
Status Indicators Link activity, port transmission speed, power
Interfaces 4 x 1000Base-T - RJ-45 ¦ 4 x 1000Base-T - RJ-45 - PoE
Power Device External power adapter
Compliant Standards FCC Class B certified, VCCI Class B ITE, cUL, ICES-003 Class B, C-Tick Class B, RoHS
Width 19 cm
Depth 12 cm
Height 3.8 cm
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 0 - 95% (non-condensing)
