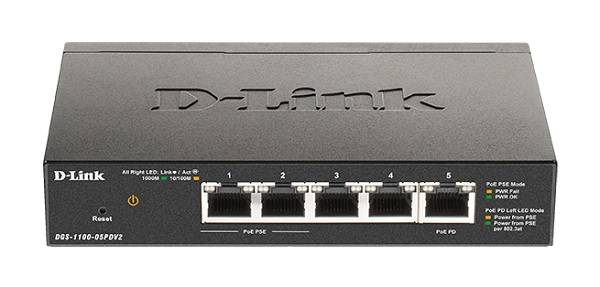

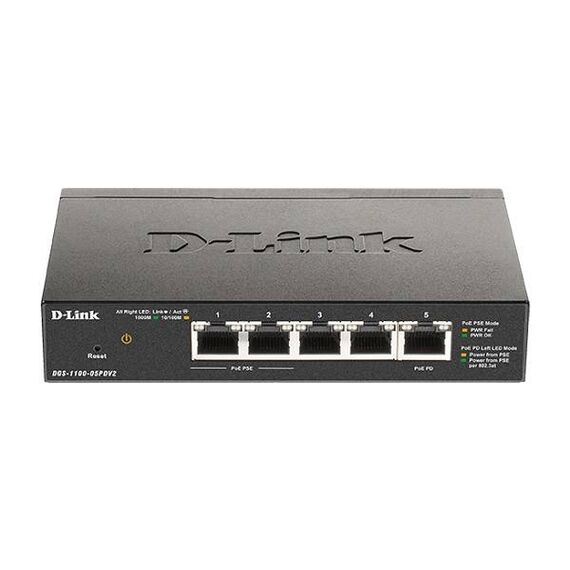

D-Link DGS 1100-05PDV2 / Switch / smart / 5 x 10/100/1000 (2 PoE) / desktop / PoE (18 W) | DGS-1100-05PDV2
DGS-1100-05PDV2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
D-Link DGS 1100-05PDV2 / Switch / smart / 5 x 10/100/1000 (2 PoE) / desktop / PoE (18 W) | DGS-1100-05PDV2
Product Specification
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (2 PoE) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 18 W |
| Performance | Switching capacity: 10 Gbps ¦ Forwarding performance: 7.44 Mpps |
| Capacity | VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128 |
| MAC Address Table Size | 2K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 2, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DiffServ Code Point (DSCP) support, 1Mbit packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Flash Memory | 2 MB |
| Status Indicators | Power, status, PoE, link/activity/speed |
| Interfaces | 5 x 1000Base-T RJ-45 2 ports (PoE) / 1 port Power Delivery |
| Power Consumption Operational | 3.24 Watt |
| Power Consumption Stand by | 1.728 Watt |
| MTBF | 2,357,475 hours |
| Compliant Standards | FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A |
| Software Included | D-Link Network Assistant |
| Width | 15 cm |
| Depth | 9.7 cm |
| Height | 2.8 cm |
| Weight | 840 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DGS-1100-05PDV2
General
5-Port
More Details
Product Code
04:376044
EAN Code
0790069453298
Manufacturer
D-Link
