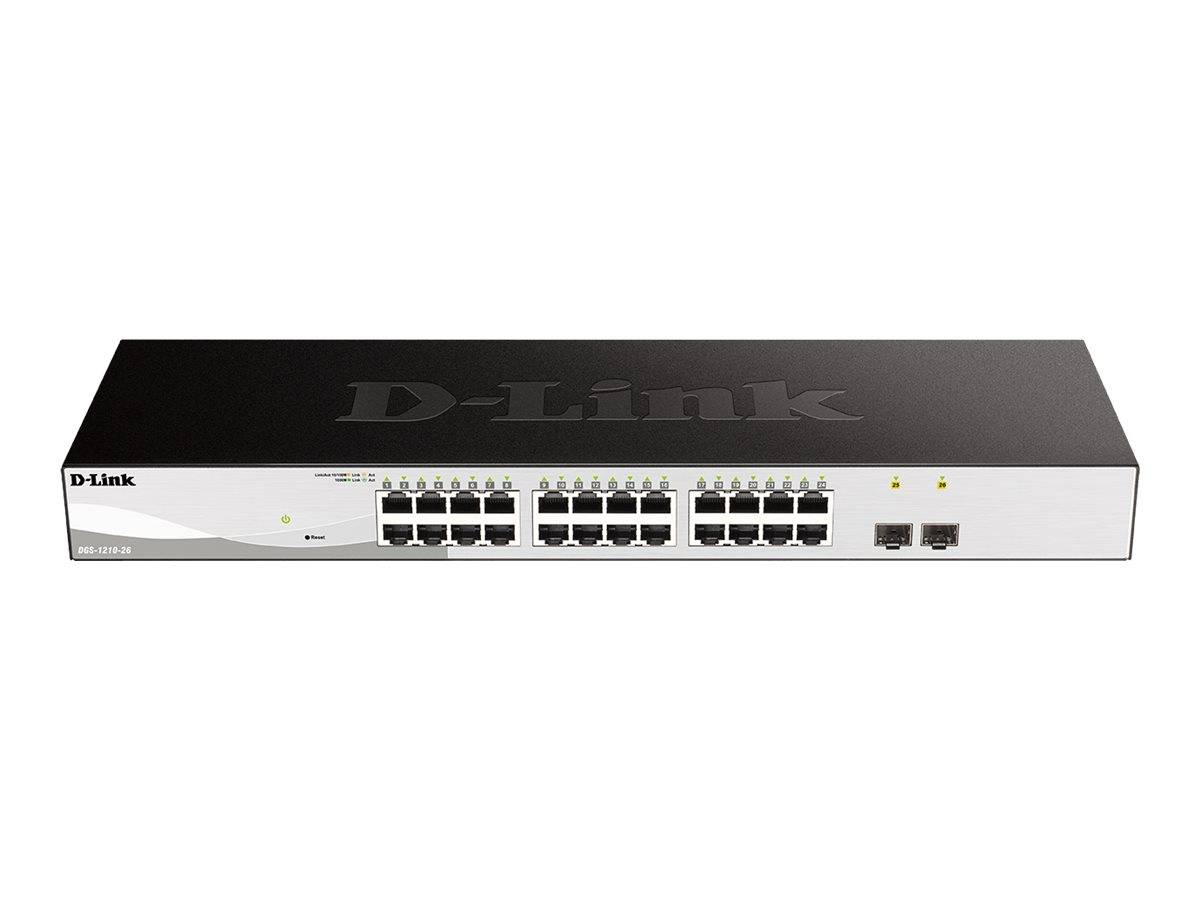

D-Link DGS 1210-26 / Switch / smart / 24 x 10/100/1000 + 2 x Gigabit SFP / desktop, rack-mountable | DGS-1210-26/E
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 26 ports - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x Gigabit SFP |
| Performance | Switching capacity: 52 Gbps ¦ Forwarding performance (64-byte packet size): 38.7 Mpps |
| Capacity | Static MAC entries: 256 ¦ IGMP groups: 256 ¦ Layer 2 multicast addresses: 64 ¦ VLAN groups: 256 ¦ QoS priority queues per port: 8 ¦ IPv4 routing entries: 124 ¦ IPv6 routing entries: 50 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI |
| Encryption Algorithm | MD5, SSL, TLS 1.0, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, IP-MAC binding, SNMP trap, DHCP client, Multicast filtering function, LLDP-MED, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, 4.1Mbit packet buffer, anti-ARP spoofing, MIB support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| RAM | 128 MB DDR3 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Power, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 15.11 Watt |
| Power Consumption Stand by | 5.06 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 1,082,534 hours |
| Compliant Standards | FCC Class A certified, UL, BSMI, CB, CCC, VCCI Class A |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 14 cm |
| Height | 4.4 cm |
| Weight | 2.06 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% RH |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% RH |
Features - D-Link - DGS-1210-26/E
General
24-Port
More Details
Product Code
04:253008
EAN Code
0790069469664
Manufacturer
D-Link
