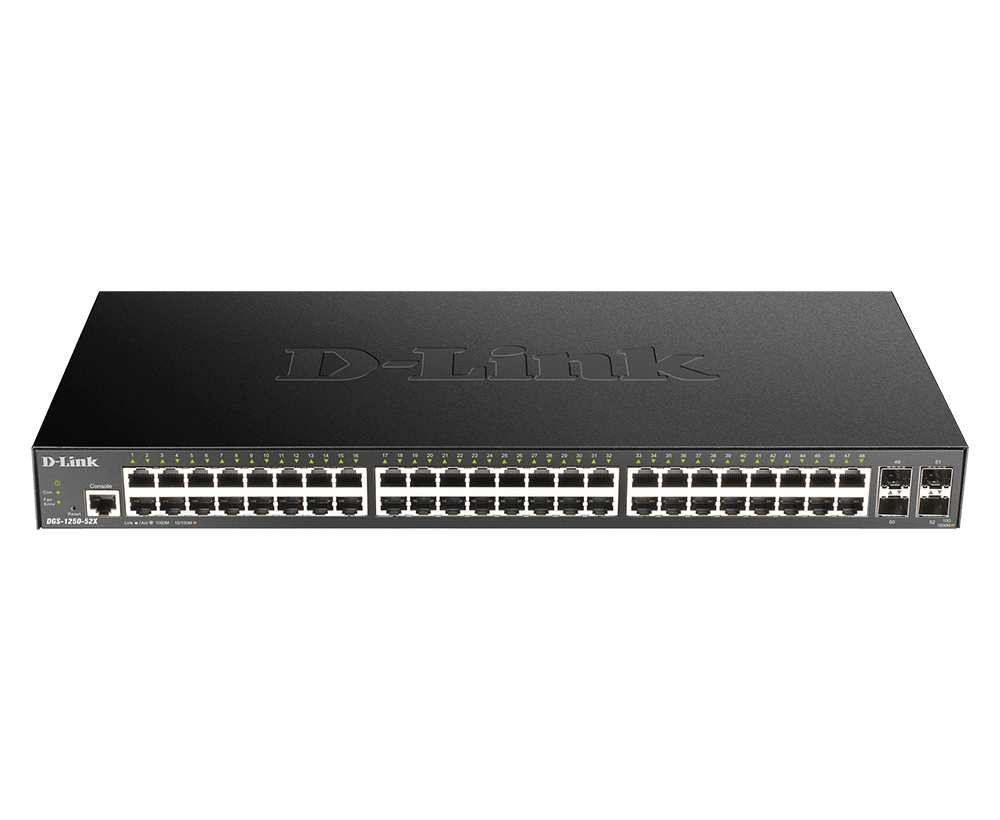

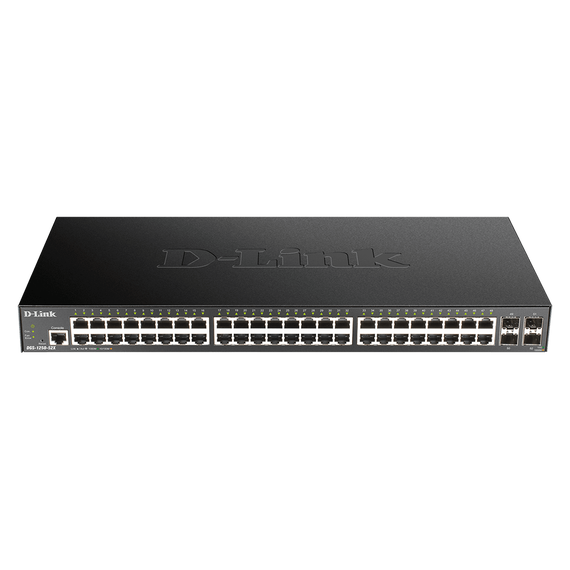

D-Link DGS 1250-52X / Switch / smart / 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable | DGS-1250-52X/E
Please sign in so that we can notify you about a reply
Product Features
- Easy maintenance, less downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime. - Quality of Service (QoS)
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. - Extensive management and advanced features
The DGS-1250 Series comes equipped with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic. - Management versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Special Features
- 48 x 10/100/1000BASE-T ports
- 4 x 10G SFP+ ports
- Lite L3 Static Routing
- Advanced security features, IMPB, 802.1X Authentication
- Dual Image & Configuration
- Supports STP/RSTP/MSTP
- Full CLI
- QoS Enablement
Product Specification
| Device Type | Switch - 52 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding rate (64-byte packets): 130.95 Mpps |
| Capacity | Static MAC entries: 256 ¦ Packet buffer size: 16 MB ¦ IGMP groups: 256 ¦ VLAN groups: 4094 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, ICMP, RADIUS |
| Encryption Algorithm | MD5, PEAP, TTLS, TLS 1.2 |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, LACP support, LLDP support, Port Security, SNMP trap, DHCP client, Neighbor Discovery Protocol (NDP), Multicast filtering function, 802.1x authentication, Type of Service (ToS), VoIP support, DiffServ Code Point (DSCP) support, ARP inspection, 6KV Surge protection, Management Information Base (MIB) II, dual image support, Voice VLAN, LLDP-MED, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, One-Time Password (OTP), D-Link Discovery Protocol (DDP), ARP spoofing, Green Technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 2 GB DDR3 SDRAM |
| Flash Memory | 64 MB |
| Status Indicators | Power, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 51.2 Watt |
| Power Consumption Stand by | 23.5 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 589,984.72 hours |
| Compliant Standards | FCC Class A certified, UL, BSMI, CB, CCC, IC, VCCI Class A |
| Software / System Requirements | Software / System Requirements |
| Software Included | D-Link Network Assistant |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 21 cm |
| Height | 4.4 cm |
| Weight | 3.01 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% |
Features - D-Link - DGS-1250-52X/E
General
48-Port
More Details
Product Code
04:335961
EAN Code
0790069467899
Manufacturer
D-Link
No posts found
