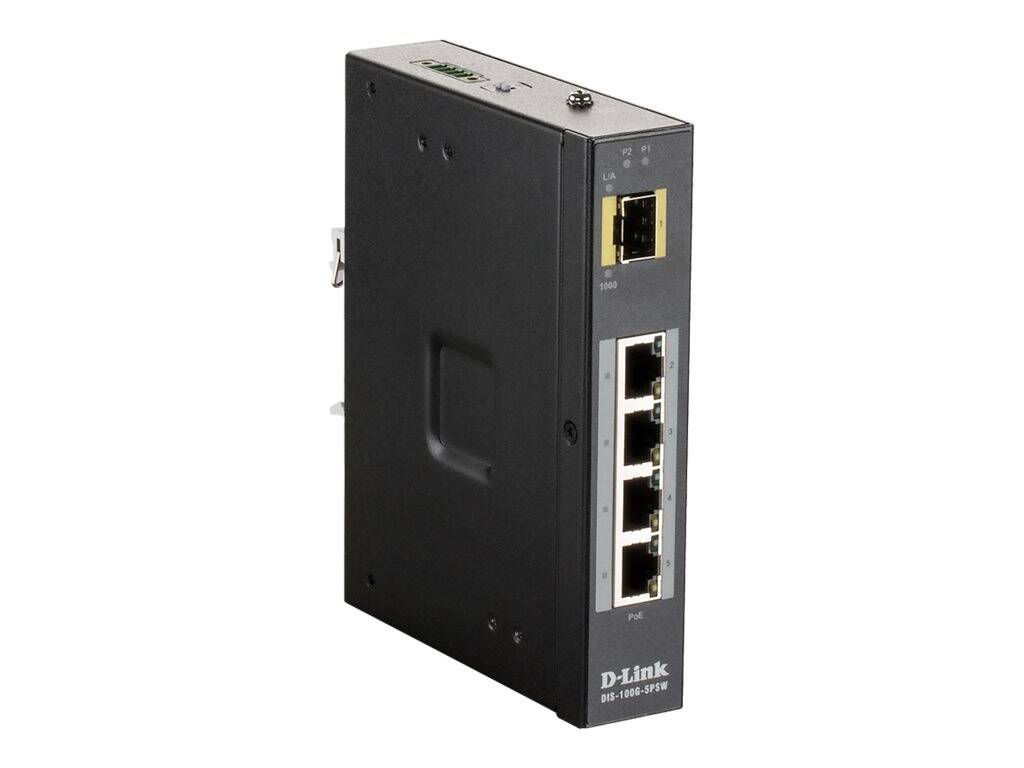

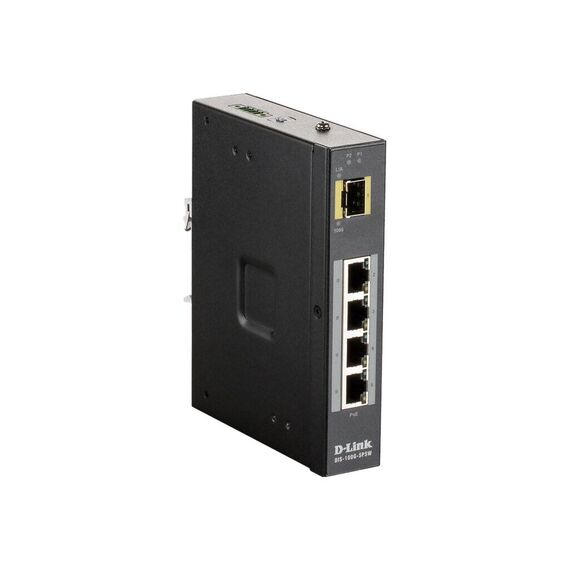

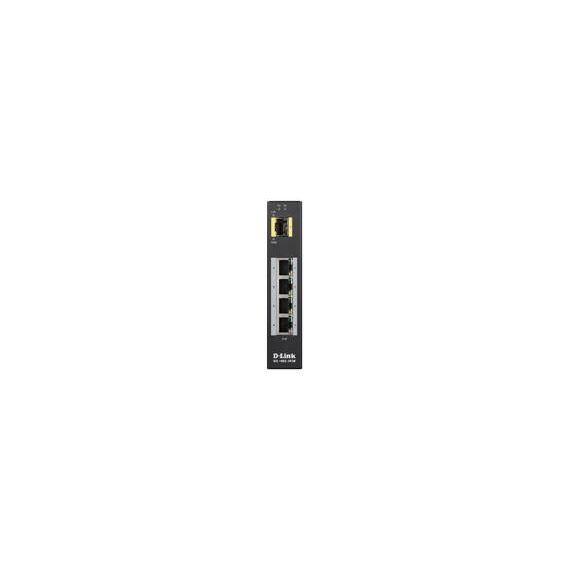

D-Link DIS 100G-5PSW - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (120 W) - DC power | DIS-100G-5PSW
Please sign in so that we can notify you about a reply
Product Features
- Rugged, hardened design
It's designed to operate in wide temperature ranges, vibration, shock, allowing the switches to be deployed in enclosures or cabinets in outdoor locations. - Easily installation
Enjoy a simple plug & play installation with DIN-rail mounting ability.
Special Fetures
- Rugged, hardened design
- Easily installation
Product Specification
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Quality of Service (QoS), fanless, rugged, Back Pressure Support, reverse polarity protection, dual power input |
| Compliant Standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link/speed |
| Expansion / Connectivity | |

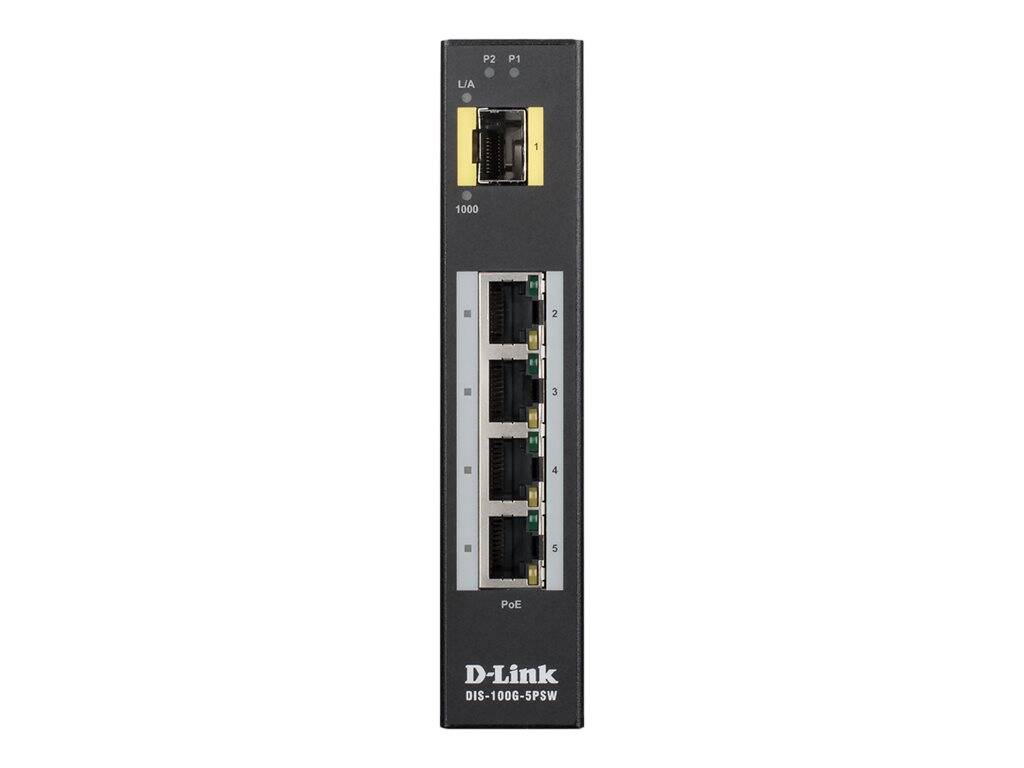

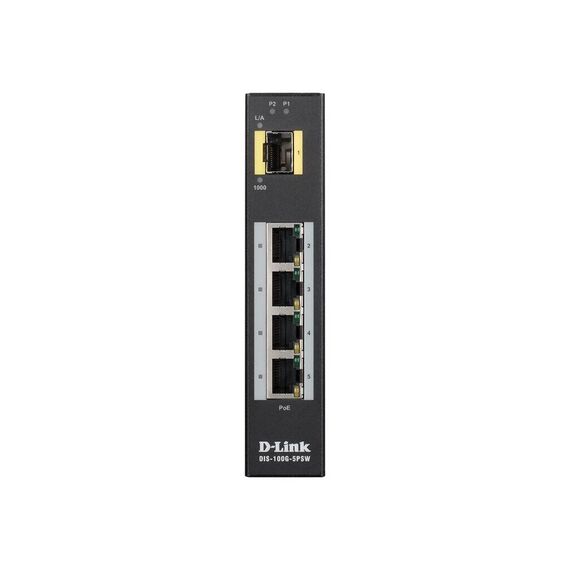

| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-X SFP |
| Power | |

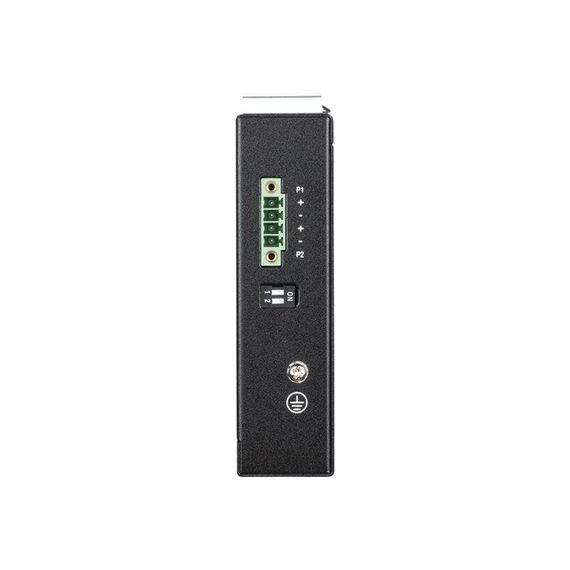

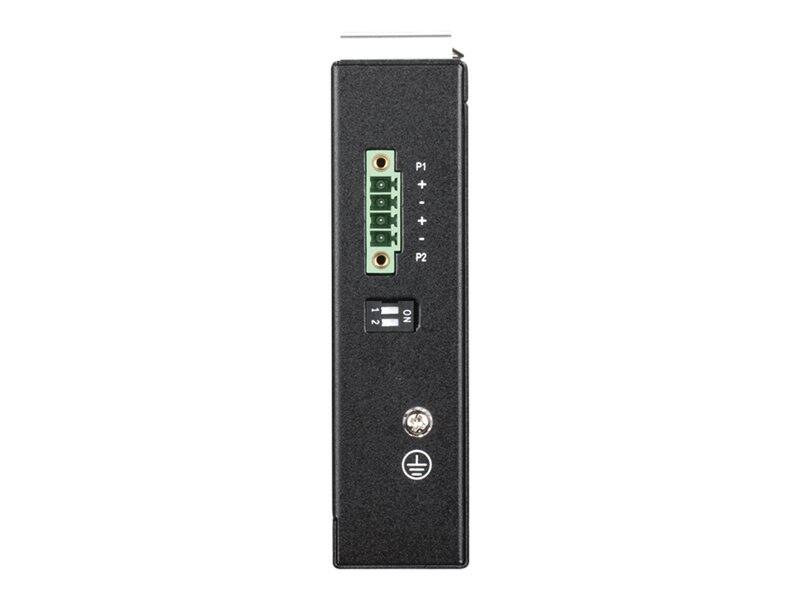

| Power Device | Internal power supply |
| Voltage Required | DC 12 - 58 V |
| Power Consumption Operational | 120.2 Watt |
| Features | Overload Current Protection |
| Miscellaneous | |

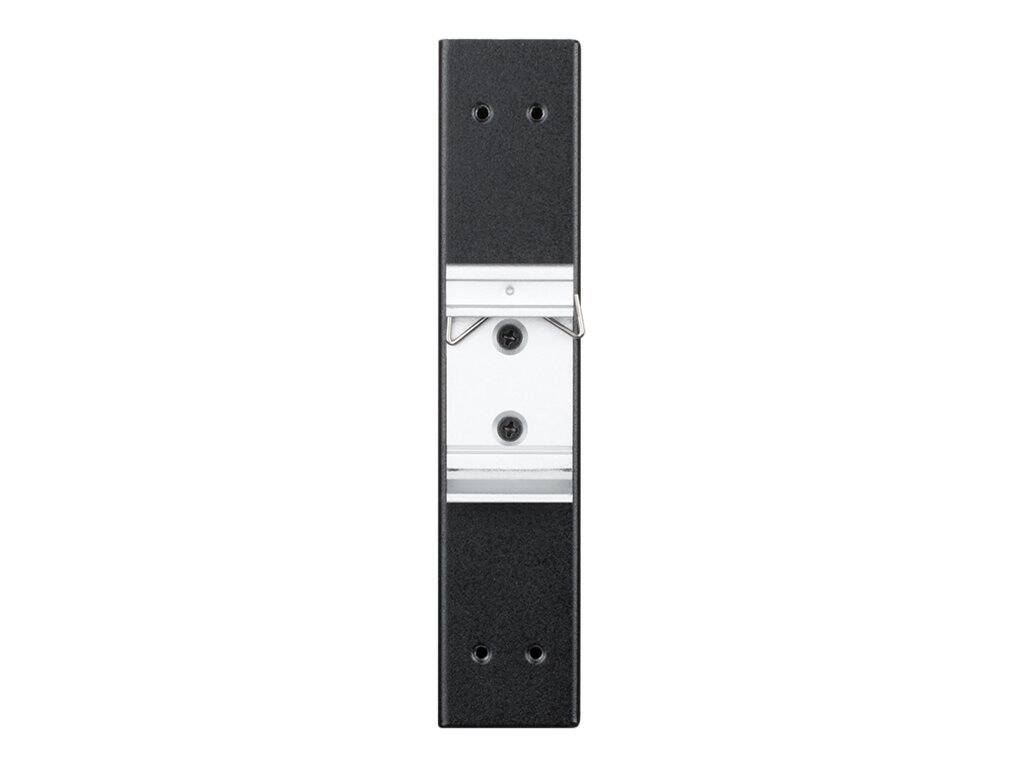

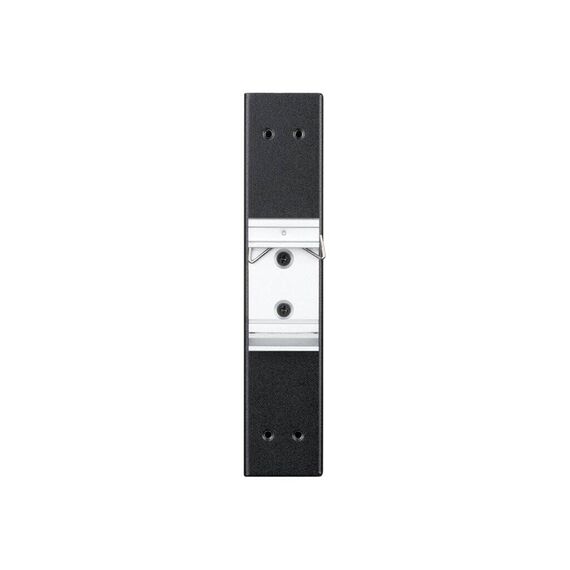

| Included Accessories | Snap-to-DIN-rail clip |
| MTBF | 25 years |
| Compliant Standards | Plug and Play, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-6-4, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 61010-1, IP30 |
| Dimensions & Weight | |
| Width | 13.9 cm |
| Depth | 2.9 cm |
| Height | 10.7 cm |
| Weight | 375 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - D-Link - DIS-100G-5PSW
General
5-Port
More Details
Product Code
5845410
EAN Code
0790069437885
Manufacturer
D-Link
