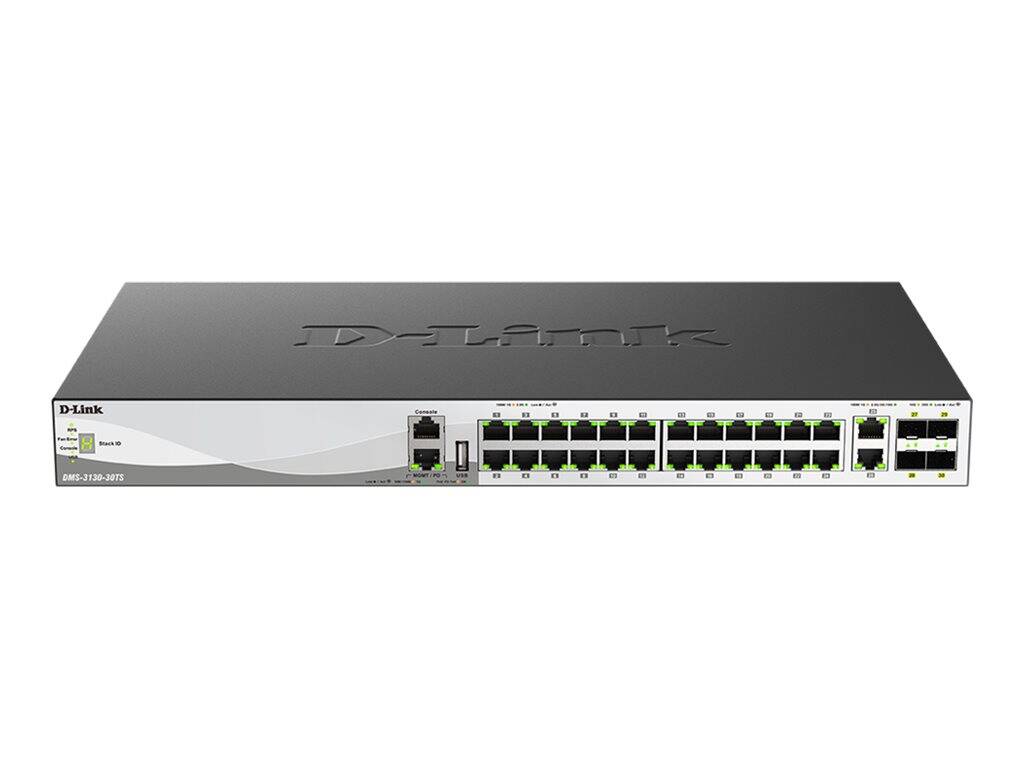

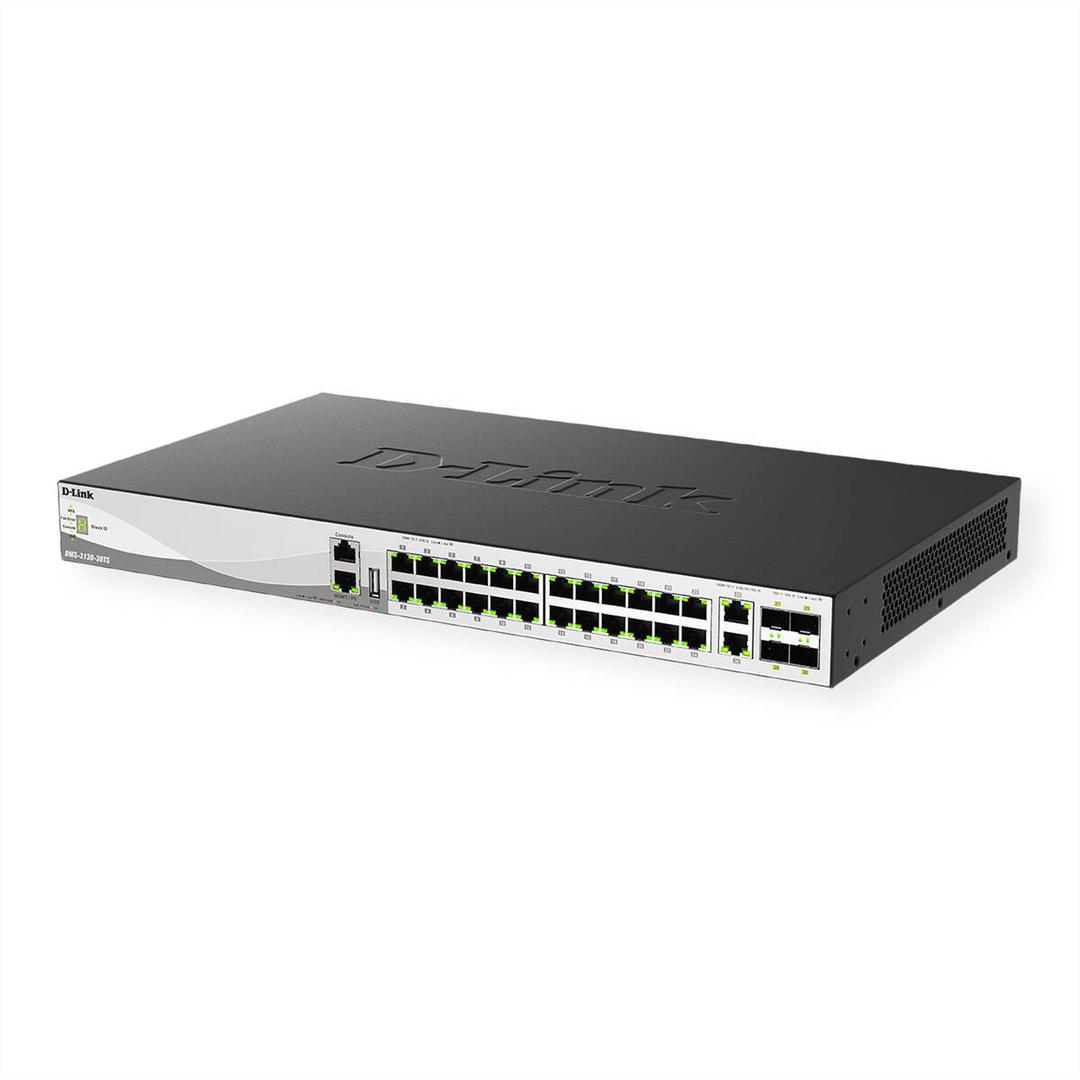

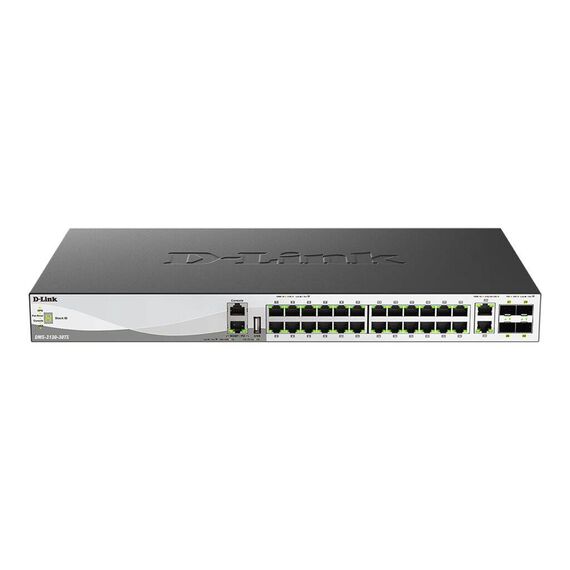

D-Link DMS 3130-30TS - Switch - L3 - Managed - 24 x 100/1000/2.5G + 2 x 100/1000/2.5G/5G/10G + 4 x 10 Gigabit / 25 Gigabit SFP28 - rack-mountable | DMS-3130-30TS/E
Please sign in so that we can notify you about a reply
Special Fetures
- 24 x 100M/1/2.5GBASE-T ports
- 2 x 100M/1/2.5/5/10GBASE-T ports and 4 x 10/25G SFP28 ports provide all the uplink capacity your network needs
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- RIP/RIPngand OSFPv2/v3 dynamically map out your network, aiding data to get to its destination via the faster route possible
- Expand capacity in a flash with physical stacking 9 units
- Smart Fan self-adjusts accordingly to maintain optimal operating temperatures
- Support ERPS, Q-in-Q and 6 KV surge protection
- Support AC/DC redundant power supply
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 5 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G + 2 x 100/1000/2.5G/5G/10G + 4 x 10 Gigabit / 25 Gigabit SFP28 |
| Performance | Switching capacity: 360 Gbps ¦ Bidirectional forwarding rate (64-byte packet size): 268 Mpps ¦ Stacking bandwidth: 200 Gbps |
| Capacity | Packet buffer size: 4 MB ¦ Units per virtual stack: 32 ¦ Queues per port: 8 ¦ Link aggregation groups: 32 ¦ IGMP groups: 1024 ¦ MLD groups: 1024 ¦ VLAN groups: 4094 ¦ ACL entries (ingress): 3072 ¦ ACL entries (egress): 1024 ¦ IPv4 routes (ARP entries): 4096 ¦ IPv6 ND entries: 1024 ¦ IP interfaces: 128 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9KB |
| Max Units In A Stack | 9 |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, IGMPv3, OSPFv3, ECMP, RIPng, MLDv2, MLD, VRRPv2, VRRPv3, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, SMTP, NTP, DHCP, IPv4, IPv6 |
| Encryption Algorithm | SSL, TLS 1.0, SSL 3.0, SSL 2.0, TLS 1.1, TLS 1.2 |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Quality of Service (QoS), MLD snooping, reset button, Cable Diagnostics Function, fanless, LLDP support, DHCP client, built-in DIP switch, tagged VLAN, ONVIF support, Ethernet Ring Protection Switching (ERPS), 6KV Surge protection, Voice VLAN, VLAN management, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Unknown Storm Control, isolate mode, Green Technology, Asymmetric VLAN, UDP support, TCP support, Auto Surveillance VLAN, PD-Alive |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3az, ITU-T G.8032 |
| Built-in Devices | 2 x fans |
| Status Indicators | Power, RPS (Redundant Power Supply), USB, console, link/activity/speed, management, fan failure, stack ID |
| Expansion / Connectivity | |
| Interfaces | 24 x 100/1000/2.5G RJ-45 uplink ¦ 2 x 100/1000/2.5G/5G/10G RJ-45 uplink ¦ 4 x 10Gbit/25Gbit SFP28 uplink ¦ 1 x console RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB 2.0 Type A |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 43.84 Watt |
| Miscellaneous | |
| MTBF | 270,340.81 hours |
| Compliant Standards | FCC Class A certified, BSMI, cUL, CB, IC, VCCI Class A, RCM |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 25 cm |
| Height | 4.4 cm |
| Weight | 3.63 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% RH |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH |
Features - D-Link - DMS-3130-30TS/E
General
24-Port
More Details
Product Code
CI88139
EAN Code
0790069467554
Manufacturer
D-Link
