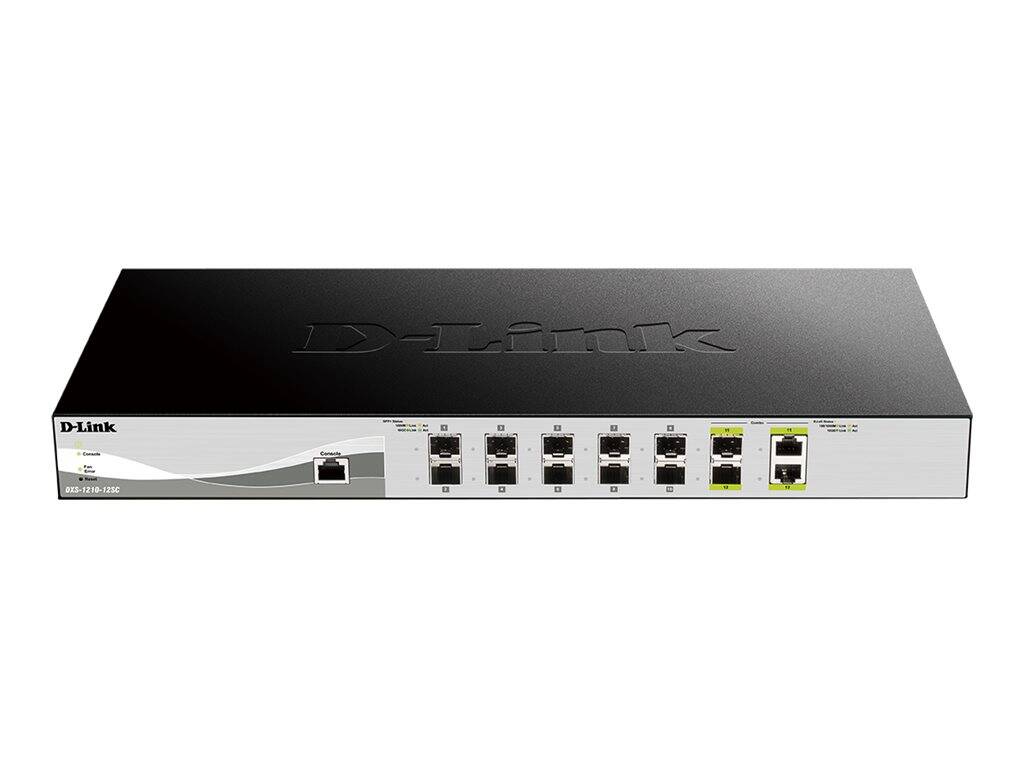

D-Link DXS 1210-12SC - Switch - smart - 10 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+/RJ-45 - desktop, rack-mountable | DXS-1210-12SC/E
Please sign in so that we can notify you about a reply
Product Features
- Energy-saving
Incorporating D-Link Green technology, these switches are capable of power saving without sacrificing operational performance or functionality. They feature built-in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. - Extensive Layer 2 features
The DXS-1210 series comes with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. - QoS, bandwidth control
The DXS-1210 series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for video surveillance and VoIP deployments. Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, thus sparing businesses the expense of dedicated hardware and facilities. - Advanced security features
D-Link's innovative Safeguard Engine helps protect the switches against traffic flooding caused by malicious attacks. The DXS-1210 series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. - Versatile management
The DXS-1210 series supports a variety of management options including D-Link Network Assistant (DNA), SNMP, industry-standard CLI, and D-View 7, a network management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
Special Fetures
- 10 x 10G SFP+ ports
- 2 x 10GBase-T/SFP+ combo ports
- Advanced security features to help protect your network
- Supports a wide variety of management tools and utilities for efficient operation
Product Specification
| Device Type | Switch - 12 ports - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 10 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+/RJ-45 |
| Performance | Switching capacity: 240 Gbps ¦ Forwarding performance: 178.56 Mpps |
| Capacity | VLAN groups: 4000 ¦ ACL rules: 256 ¦ Static ARP entries: 768 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ IGMP groups: 384 ¦ QoS hardware queues per port: 8 ¦ Packet buffer size: 2 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, ICMP, DHCP |
| Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, IP-MAC binding, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), Class of Service (CoS), Type of Service (ToS), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), dual image support, Authentication, Authorization and Accounting (AAA), Weighted Deficit Round Robin (WDRR), Web-based Access Control (WAC), DNS client, Voice VLAN, LLDP-MED, Guest VLAN, Weighted Round Robin (WRR), DSCP based CoS, Head-of-line (HOL) Blocking Prevention, loopback detection, One-Time Password (OTP), Asymmetric VLAN, Duplicate Address Detection (DAD) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3az |
| Status Indicators | Power, fan, console, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 10 x 10GBase-X SFP+ ¦ 2 x 10GBase-T/10GBase-X RJ-45/SFP+ ¦ 1 x management RJ-45 console |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Electric Current Required | 1.1 A |
| Power Consumption Operational | 43.81 Watt |
| Power Consumption Stand by | 25.22 Watt |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 21 cm |
| Height | 4.4 cm |
| Weight | 2.73 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - D-Link - DXS-1210-12SC/E
More Details
Product Code
04:361846
EAN Code
0790069467646
Manufacturer
D-Link
