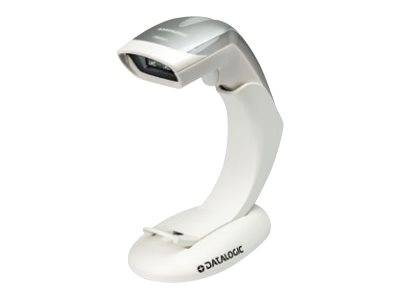

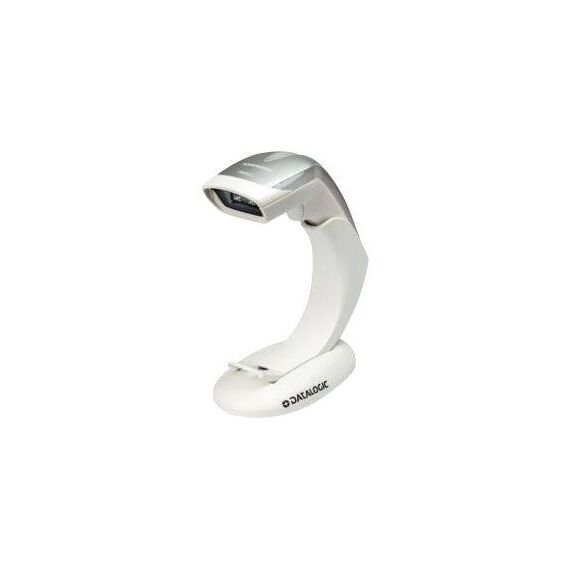

Datalogic Heron HD3430 / Barcode scanner / handheld / decoded / USB / Inlcudes stand and USB cable | HD3430-WHK1B
Datalogic Heron HD3430 / Barcode scanner / handheld / decoded / USB / Inlcudes stand and USB cable | HD3430-WHK1B
|
Description The Heron HD3430 2D area imager brings unmatched elegance along with the advanced 2D reading technology to the modern point-of-sale. The stylish silhouette of the 2D area imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.The Heron HD3430 2D area imager provides outstanding reading performance on 1D and 2D codes as well as image capture capabilities. Featuring the market's most efficient aiming and illumination systems, the Heron HD3430 2D area imager guarantees the operator's best suitability combined with an outstanding all-codes reading capability. Special Features
Product features
|
Product Specification
| Type | Barcode scanner - handheld |
| Colour | White |
| Interface Type | USB |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Light Source Wave Length | 650 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 40 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 93, Code 39, Code 49, RSS Code, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet , PDF417, Data Matrix, PLANET, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, EAN-UCC Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Triggered |
| Interfaces | 1 x USB - Type A |
| Included Accessories | Stand |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | RoHS, IP40, IEC 62471 |
| Electric Current Required | 500 mA (peak), 300 mA (typical) |
| Width | 6.8 cm |
| Depth | 15.2 cm |
| Height | 15.3 cm |
| Weight | 150 g |
| Service & Support | 5 years warranty |
| Service & Support Details | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
