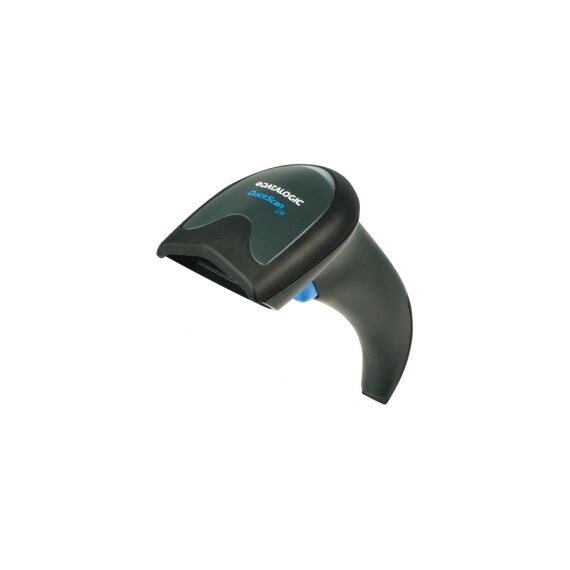

Datalogic QuickScan Lite QW2170 / Barcode scanner / handheld / 400 scan / sec / decoded / SCANNER ONLY, Linear 1D Imager, Keyboard wedge/RS-232 Interface. Color: Black. Cables sold separately | QW2170-BK

Datalogic ADC V382006

Hover over an image to enlarge

113.91
(Including VAT)
Available
+
QW2170-BK
Product Code:V382006
EAN Code:4056572760909
Manufacturer:Datalogic ADC
Delivery
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!


Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

Datalogic QuickScan Lite QW2170 / Barcode scanner / handheld / 400 scan / sec / decoded / SCANNER ONLY, Linear 1D Imager, Keyboard wedge/RS-232 Interface. Color: Black. Cables sold separately | QW2170-BK

Description

The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

Special Features

  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Datalogic green spot for good-read feedback
  • Built with over molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Uses the same cables and power supplies as the current QuickScan products

Product Specification

Type Barcode scanner - handheld
Colour Black
Minimum Bar Width 4 mil
Scan Element Type Red LED
Light Source Wave Length 610-650 nm
Scan Speed 400 scan / sec
Max Working Distance 60 cm
Skew (Degrees) 70
Pitch (Degrees) 65
Print Contrast Signal (PCS) 25%
Decode Capability EAN/JAN, RSS Code, Postnet , PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator
Interfaces 1 x barcode scanner
Compliant Standards RoHS, EN 60825-1, IP42
Electric Current Required 340 mA (typical), 190 mA (standby)
Width 6.5 cm
Depth 7 cm
Height 17 cm
Weight 119 g
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 95% (non-condensing)
Drop Specification 1.5 m to concrete

More Details

Product Code:
V382006
EAN Code:
4056572760909
Manufacturer:
Datalogic ADC
