Datalogic Gryphon GFS4170 - Barcode scanner - desktop - decoded - USB

Datalogic Scanning GFS4170 Datalogic Gryphon GFS4170 - Barcode scanner - desktop - decoded - USB

Datalogic Gryphon GFS4170 - Barcode scanner - desktop - decoded - USB

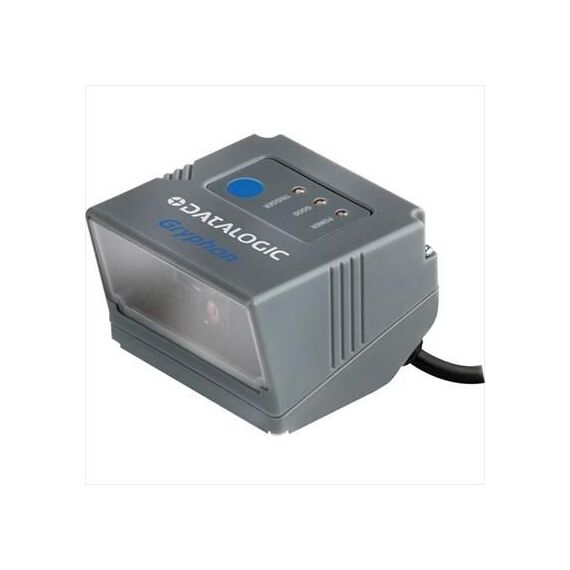

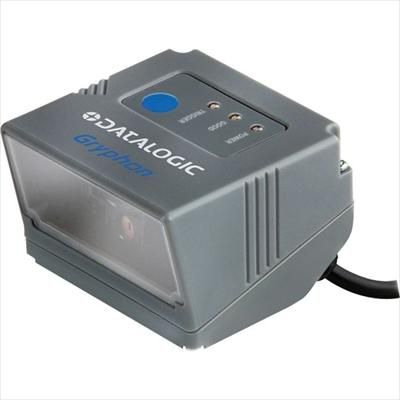

Fixed Mount Linear Imager Bar Code Reader
Using advanced imaging technology, the Gryphon™ I GFS4100 fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon I GFS4100 reader provides a simple ‘plugand-play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance.

The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon™ 4100 series of handheld devices. Featuring outstanding near-field reading, a wide angle field-of-view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology.

The Gryphon I GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.

Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.

Scanning Sensor type CCD Decoding standards 1D GS1 DataBar linear codes Light source 630 - 670nm Yaw reading angle -65 - 65 ° Pitch reading angle -65 - 65 ° Tilt reading angle -35 - 35 ° Read rate (max) 320 reads/s Connectivity Interface USB Energy management Input voltage 5 V

Energy management Current consumption 390 mA Colour Colour of product Grey Certificates Certification RoHS Environmental conditions Operating temperature range (T-T) 0 - 50 °C Storage temperature range (T-T) -25 - 50 °C Light levels (direct sunlight) 0 - 100000 lx
