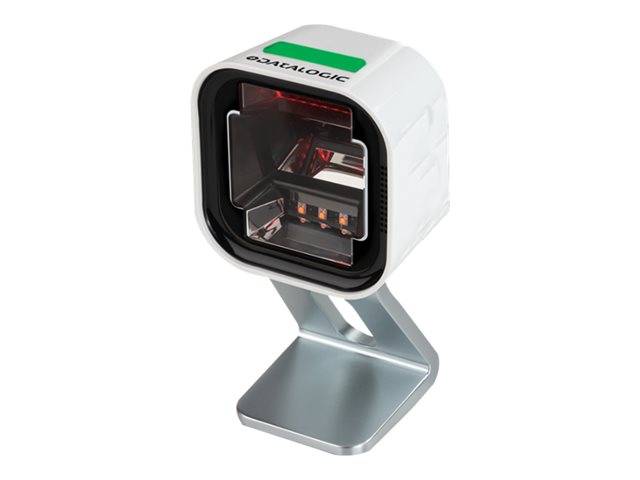

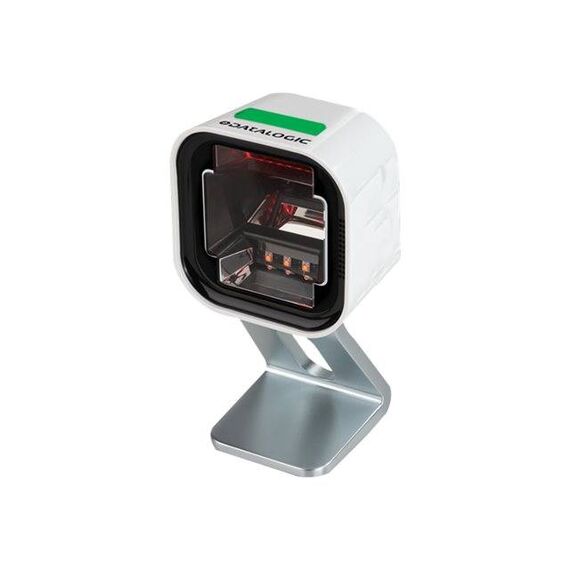

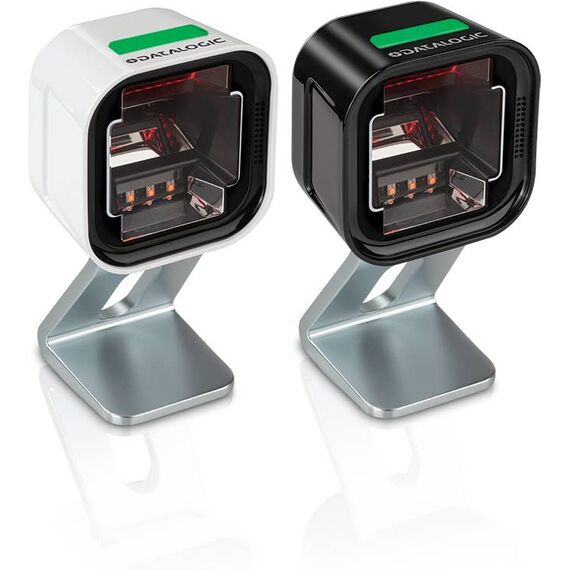

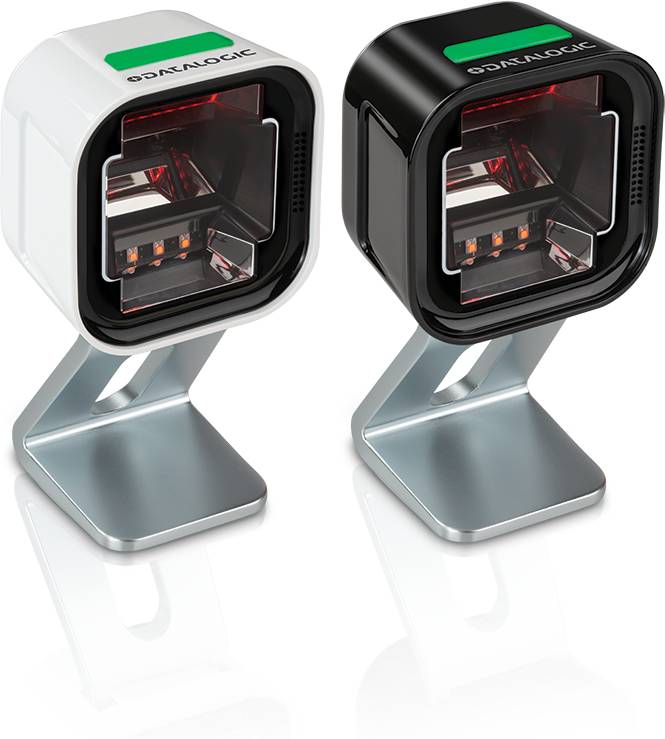

Datalogic Magellan 1500i / Standard Configuration / barcode scanner / stationary / linear imager / 1500 mm / sec / decoded / Includes Tilting Stand and USB A Cable | MG1502-10320-0200
Please sign in so that we can notify you about a reply
Datalogic Magellan 1500i / Standard Configuration / barcode scanner / stationary / linear imager / 1500 mm / sec / decoded / USB 2.0 | MG1502-10320-0200
Description
The Magellan 1500i is a high-performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.
Product Specification
| Type | Barcode scanner - stationary - stationary |
| Colour | White |
| Interface Type | USB 2.0 |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 30 cm |
| Scan Element Type | Linear imager |
| Sensor Resolution | 1280 x 800 |
| Scan Mode | Fixed projection |
| Scan Speed | 1500 mm / sec |
| Max Working Distance | 25 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, Green Spot technology |
| Interfaces | 1 x USB 2.0 |
| Included Accessories | Tilting stand |
| Cables Included | USB cable |
| Compliant Standards | RoHS, JavaPOS, OPOS, IEC 60825-1, IP52 |
| Electric Current Required | 300 mA (standby), 500 mA (operating) |
| Width | 6 cm |
| Depth | 7.5 cm |
| Height | 15 cm |
| Weight | 240 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - MG1502-10320-0200
More Details
Product Code
V384600
EAN Code
-
Manufacturer
Datalogic
