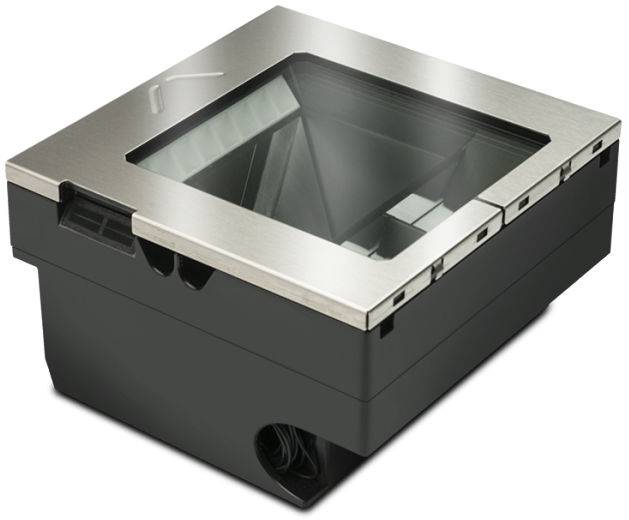

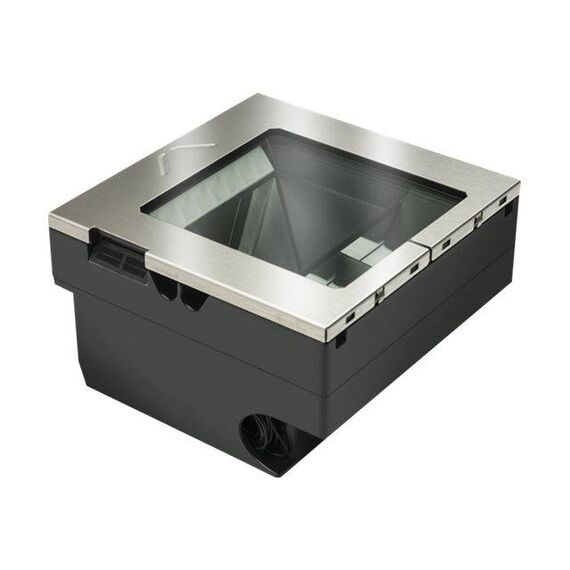

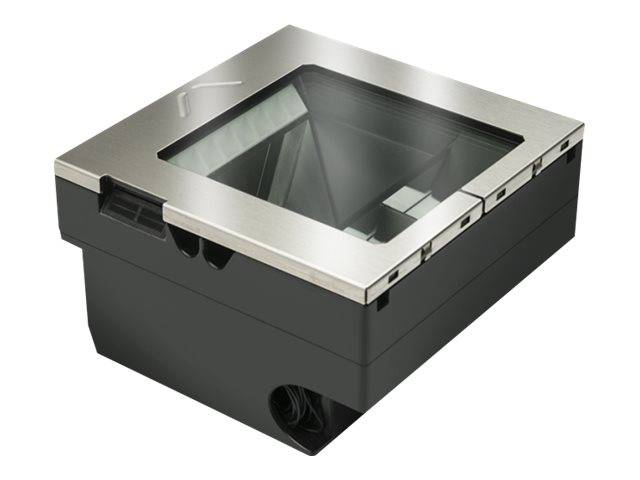

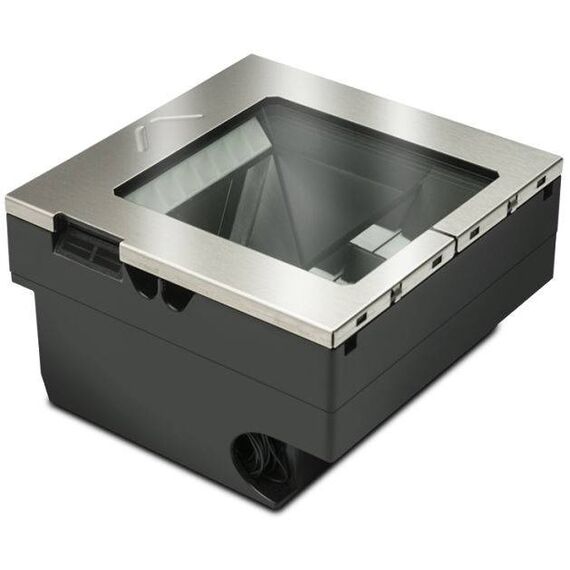

Datalogic Magellan 3550HSi / Barcode scanner / integrated / decoded / USB | M3551-010210-07604
Please sign in so that we can notify you about a reply
Datalogic Magellan 3550HSi / Barcode scanner / integrated / decoded / USB | M3551-010210-07604
Description
The Magellan 3500HSi series of scanners continue the Datalogic tradition of high-performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high-speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
Datalogic Magellan 3550HSi / Barcode scanner | M3551-010210-07604
Special Features
- Advanced digital imaging provides advanced performance and reliability
- Seamless 1D, 2D and Digimarc digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort
- Solid-state electronics for silent operation and superior reliability
- Image capture
- MicroSD card slot
- Multiple interfaces in every unit
- Powered USB auxiliary port
- Diagnostics reporting
Product Specification
| Type | Barcode scanner - integrated - stationary |
| Localisation | Europe |
| Interface Type | USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | Diffused LED |
| Sensor Resolution | 1280 x 1024 |
| Window Glass Type | Sapphire Glass (SG) |
| Scan Mode | Fixed projection |
| Max Working Distance | 10.2 cm |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, Micro SD card slot |
| Interfaces | 1 x USB - Type A |
| Included Accessories | Mounting kit |
| Cables Included | 1 x USB cable - 4.5 m |
| Compliant Standards | RoHS, IP52, China RoHS, EN 62471:2008, IEC 62471 |
| Width | 15.2 cm |
| Depth | 15.2 cm |
| Height | 8.7 cm |
| Weight | 980 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - M3551-010210-07604
More Details
Product Code
V383825
EAN Code
-
Manufacturer
Datalogic
