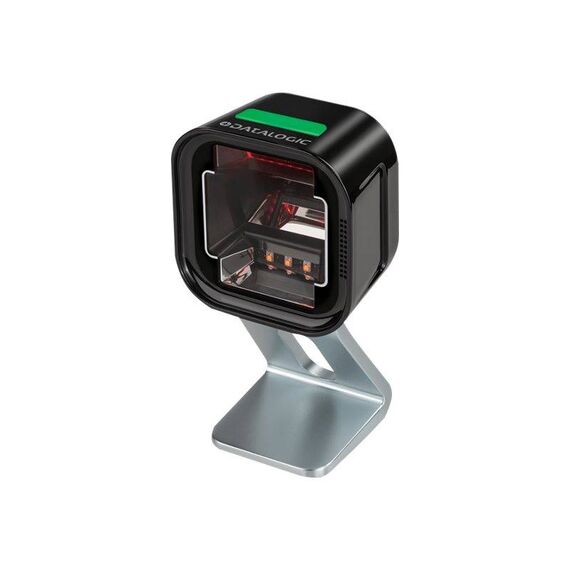

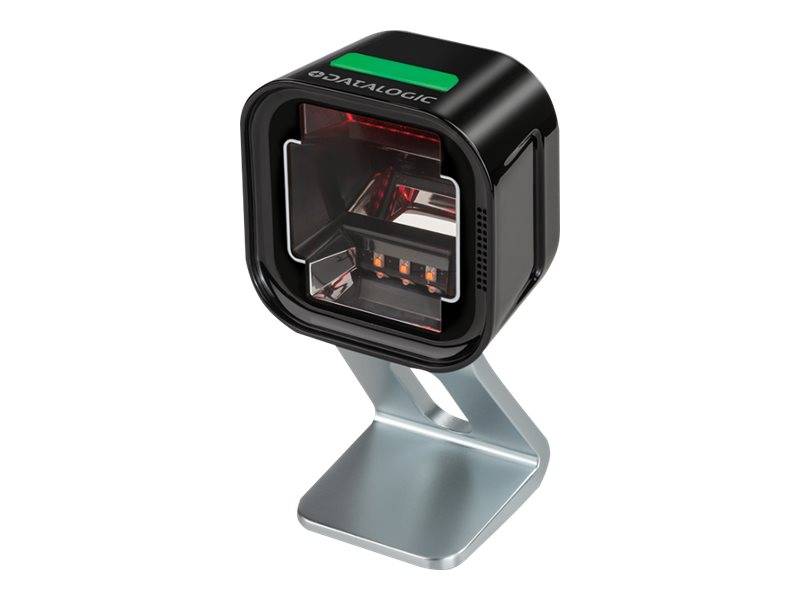

Datalogic Magellan 1500i / Standard Configuration / barcode scanner / stationary / 2D imager / 1500 mm / sec / decoded / RS-232 | MG1501-10210-2100
MG1501-10210-2100
Find similar
Delivery
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - stationary - stationary |
| Colour | Black |
| Localisation | Europe |
| Barcode | Barcode |
| Interface Type | RS-232 |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 30 cm |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Scan Mode | Fixed projection |
| Scan Speed | 1500 mm / sec |
| Max Working Distance | 25 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, Green Spot technology |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x RS-232 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Tilting stand |
| Cables Included | RS-232 cable |
| Compliant Standards | RoHS, JavaPOS, OPOS, IEC 60825-1, IP52 |
| Power | Power |
| Power Device | Power adapter |
| Electric Current Required | 300 mA (standby), 500 mA (operating) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6 cm |
| Depth | 7.5 cm |
| Height | 15 cm |
| Weight | 240 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - MG1501-10210-2100
More Details
Product Code
V384596
EAN Code
5656565656562
Manufacturer
Datalogic
