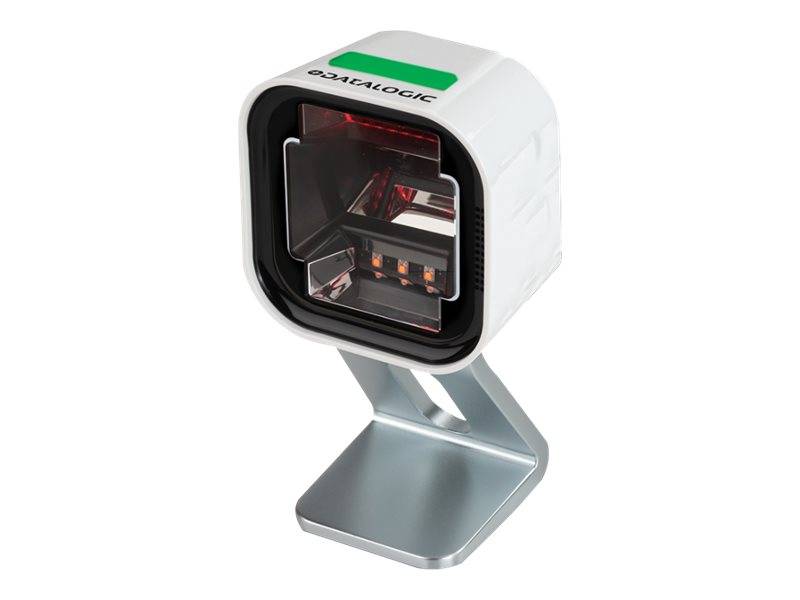

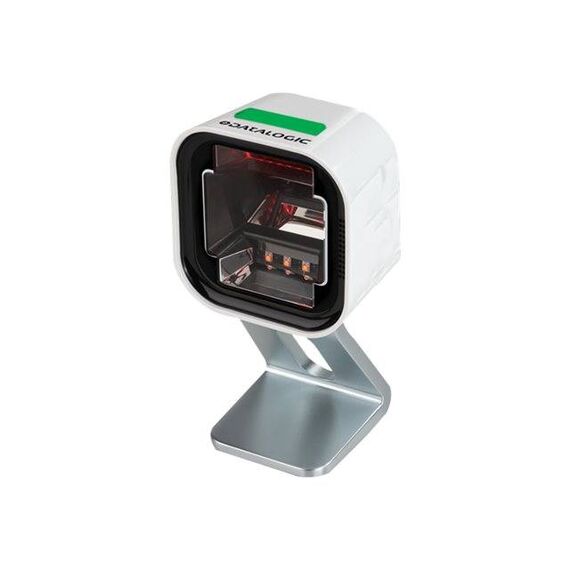

Datalogic Magellan 1500i / Standard Configuration / barcode scanner / stationary / 2D imager / 1500 mm / sec / decoded / USB 2.0 | MG1502-10221-0200
Please sign in so that we can notify you about a reply
Datalogic Magellan 1500i / Standard Configuration / barcode scanner / stationary / 2D imager / 1500 mm / sec / decoded / USB 2.0 | MG1502-10221-0200
Product Specification
| Type | Barcode scanner - stationary - stationary |
| Colour | White |
| Interface Type | USB 2.0 |
| Minimum Bar Width | 5 mil |
| Scan Field Width | 30 cm |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Scan Mode | Fixed projection |
| Scan Speed | 1500 mm / sec |
| Max Working Distance | 25 cm |
| Skew (Degrees) | 75 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, Green Spot technology |
| Interfaces | 1 x USB 2.0 |
| Included Accessories | Tilting stand with magnetic base |
| Cables Included | USB cable |
| Compliant Standards | RoHS, JavaPOS, OPOS, IEC 60825-1, IP52 |
| Electric Current Required | 300 mA (standby), 500 mA (operating) |
| Width | 6 cm |
| Depth | 7.5 cm |
| Height | 15 cm |
| Weight | 240 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - MG1502-10221-0200
More Details
Product Code
V384599
EAN Code
-
Manufacturer
Datalogic
