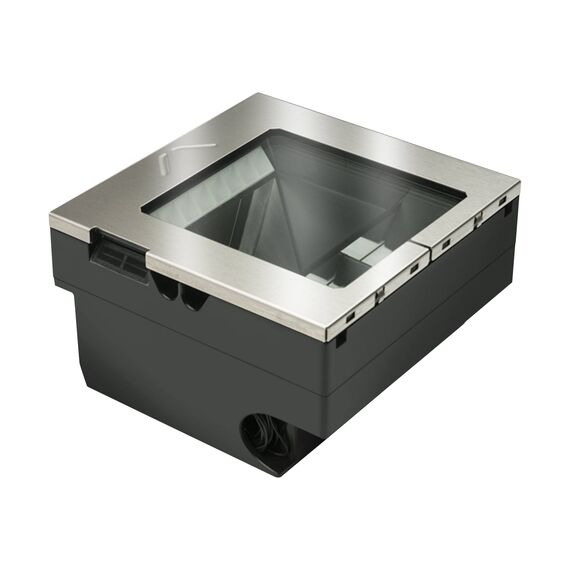

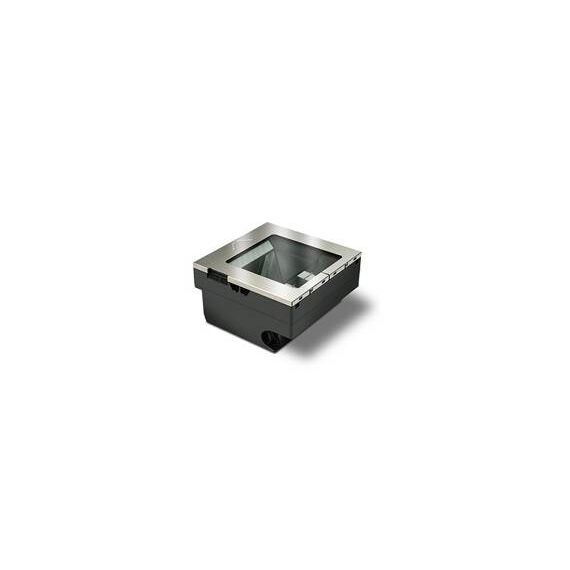

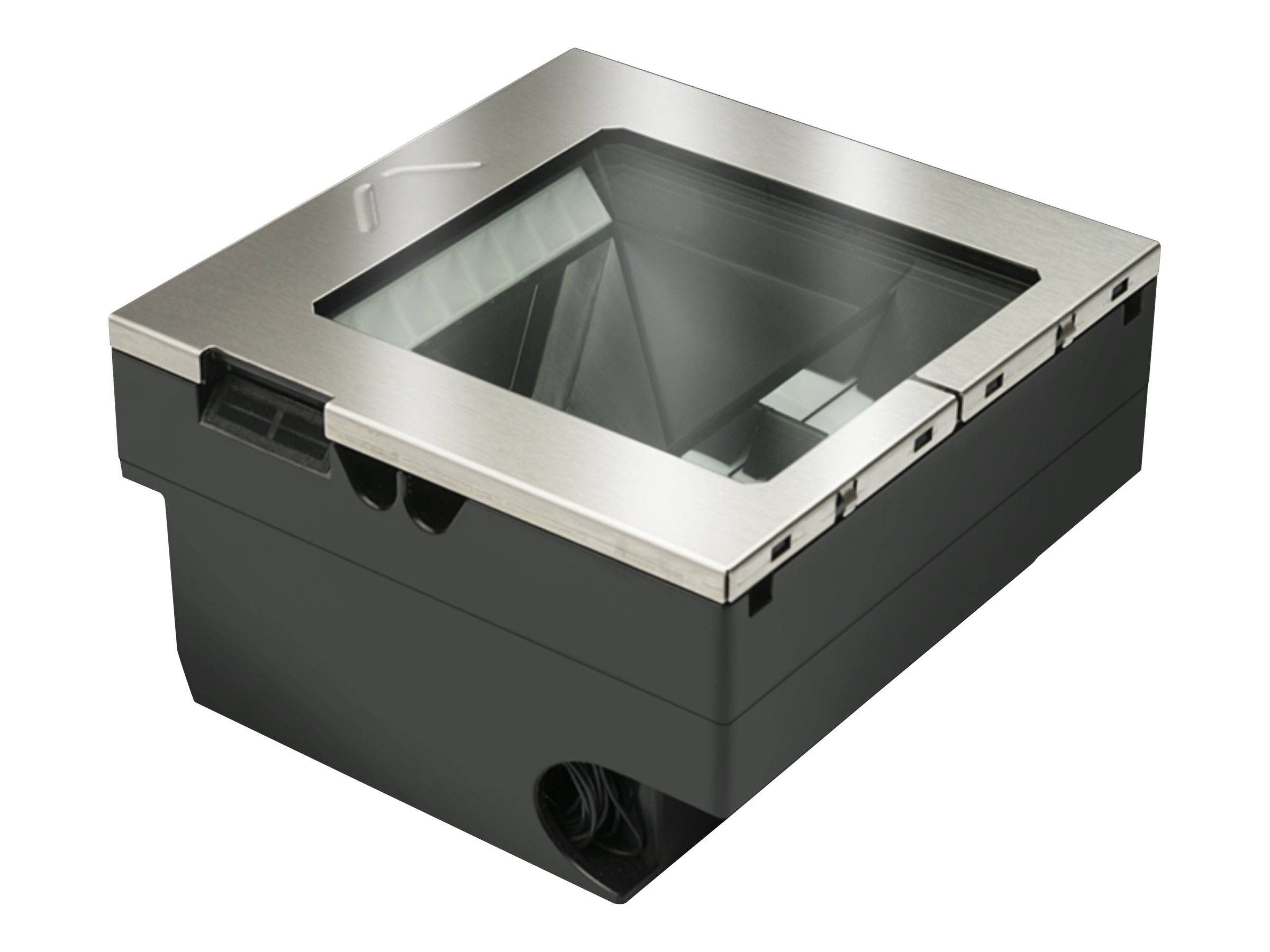

Datalogic Magellan 3550HSi / Barcode scanner / integrated / 2D imager / decoded / interface cable required | M3553-010210
M3553-010210
Find similar
Delivery
✓
Delivery time within 3 to 8 business days.
✓
Free delivery to your nearest Akis Express for all orders over €100.
Ships from EU stock — fast delivery to Cyprus
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- Advanced digital imaging provides advanced performance and reliability
- Seamless 1D, 2D and Digimarc digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort
- Solid-state electronics for silent operation and superior reliability
- Image capture
- MicroSD card slot
- Multiple interfaces in every unit
- Powered USB auxiliary port
- Diagnostics reporting
Product Specification
| Type | Barcode scanner - integrated - stationary |
| Barcode | Barcode |
| Interface Type | Interface cable required |
| Minimum Bar Width | 5 mil |
| Scan Element Type | 2D imager - LED |
| Sensor Resolution | 1280 x 1024 |
| Window Glass Type | Tin Oxide Glass (TO) |
| Scan Mode | Fixed projection |
| Max Working Distance | 10.2 cm |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS), ESD (electrostatic discharge) safe, Micro SD card slot |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit |
| Compliant Standards | RoHS, IP52, China RoHS, EN 62471:2008, IEC 62471 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.2 cm |
| Depth | 15.2 cm |
| Height | 8.7 cm |
| Weight | 980 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Datalogic - M3553-010210
More Details
Product Code
V384137
EAN Code
5656565656562
Manufacturer
Datalogic
