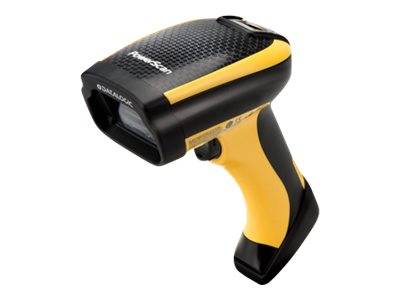

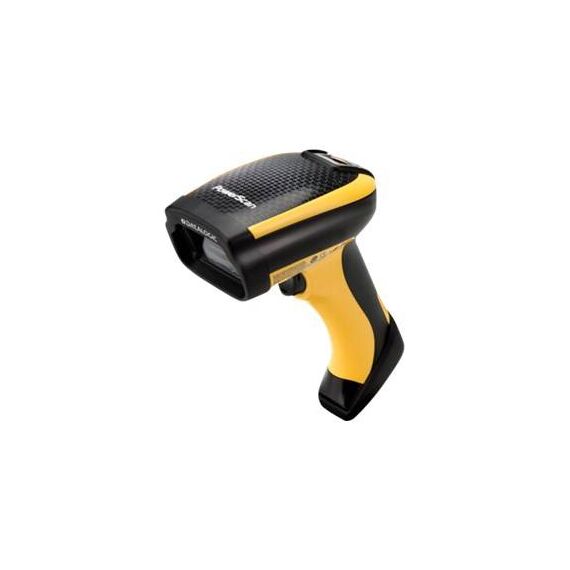

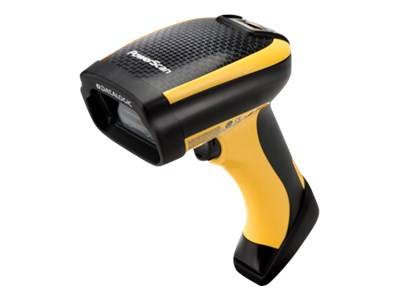

Datalogic PowerScan PD9531-DPMK1 / Barcode scanner / handheld / 2D imager / decoded / USB | PD9531-DPMK1
PD9531-DPMK1
Find similar
Delivery
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- Built-in multiple interface
- Snappy omnidirectional reading
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black, yellow |
| Barcode | Barcode |
| Interface Type | USB |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | 2D imager |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 110 cm |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 40 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 330 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m |
Features - Datalogic - PD9531-DPMK1
More Details
Product Code
V384306
EAN Code
5656565656562
Manufacturer
Datalogic
