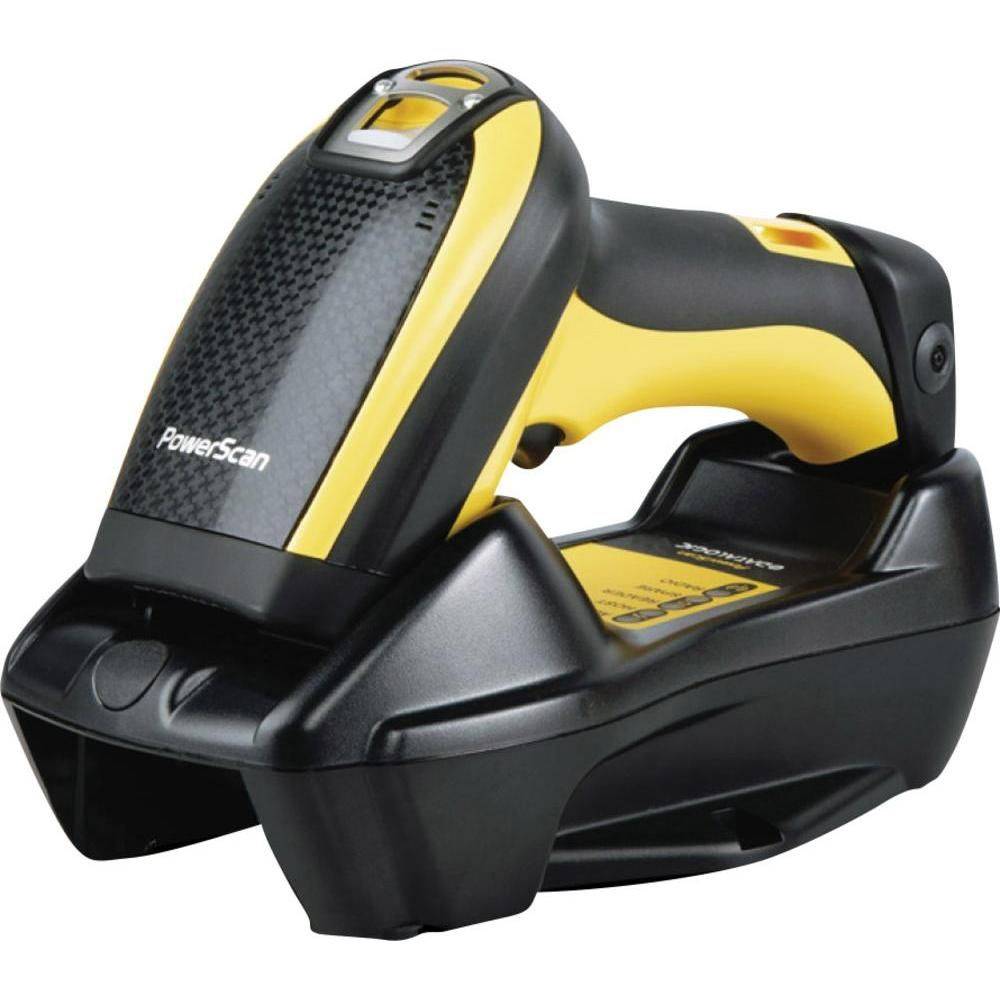

Datalogic PowerScan DPM Evo PM9501 / USB Kit / barcode scanner / portable / decoded / RF(433 MHz) | PM9501-DPM433RBK10
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - portable |
| Colour | Black, yellow |
| Barcode | Barcode |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | Visible laser diode |
| Sensor Resolution | 864 x 544 |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 40 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 93, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, Plessey, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, EAN-128, EAN-8, EAN-13, MSI, Code 39 CIP, UPC A Composite, UPC E Composite, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL), Datalogic STAR Cordless System, autofocus, Datalogic Motionix technology |
| Networking | Networking |
| Wireless Connectivity | RF |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle |
| Cables Included | USB cable - external |
| Compliant Standards | REACH, IP65, CDRH Class II, China RoHS, IEC 60825 Class 2, IEC 62471, EU RoHS |
| Power | Power |
| Power Device | Power adapter |
| Electric Current Required | 150 mA (operating) |
| Battery | 1 x Lithium Ion |
| Software | Software |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 400 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
Features - Datalogic - PM9501-DPM433RBK10
More Details
Product Code
CA06443
EAN Code
-
Manufacturer
Datalogic
