Datalogic PowerScan PD9130 / RS-232 Kit / barcode scanner / handheld / linear imager / decoded / RS-232 | PD9130-K2
Description

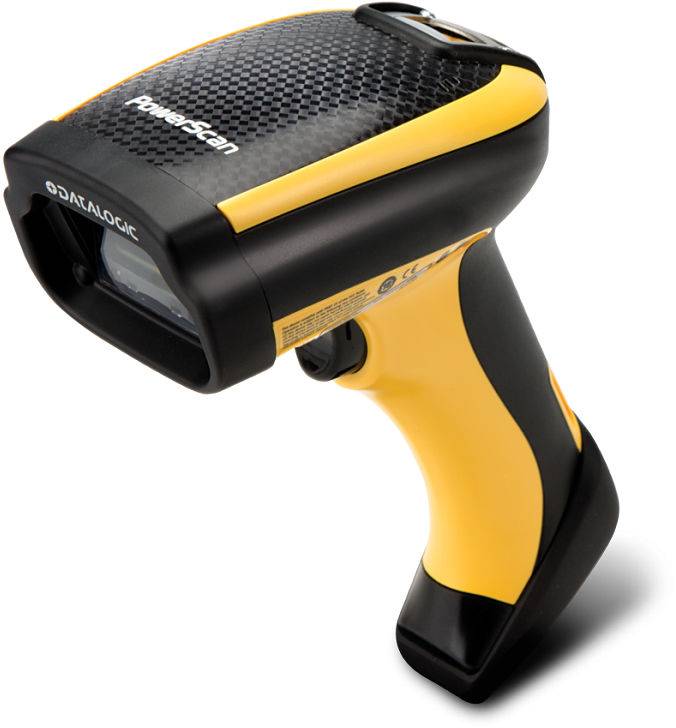

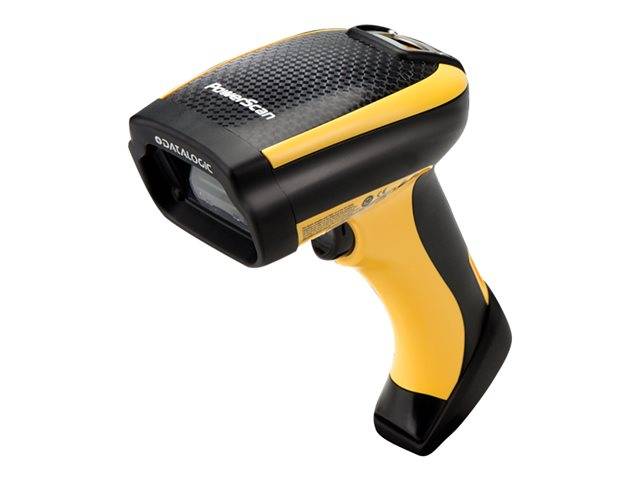

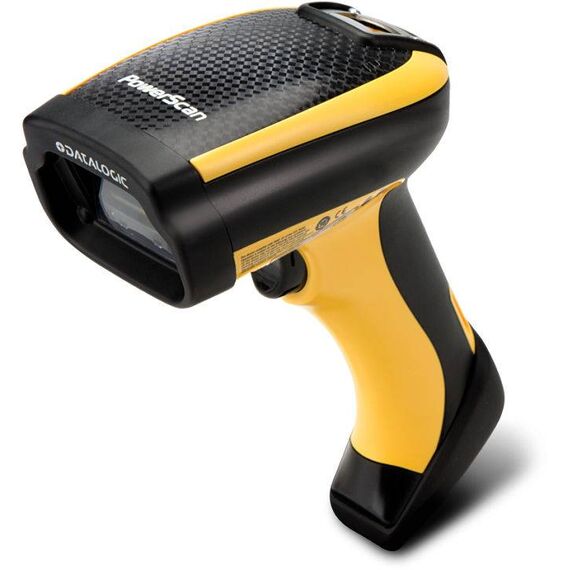

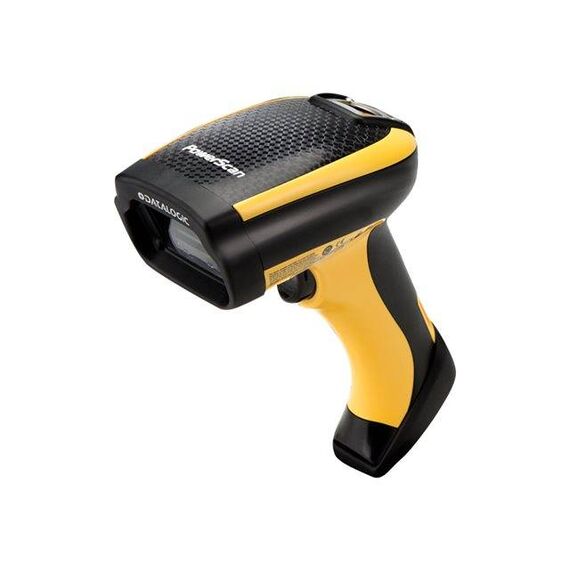

The PowerScan PD9130 linear imager is a corded device offering incredible performance in an industrial product. This linear imager introduces Datalogic's innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
Datalogic PowerScan PD9130 / RS-232 Kit | PD9130-K2
Special Features
- Built-in multiple interfaces
- Multiple good-read feedback
- Ergonomic shape
Product features
- Superior reading performance
The PD9330 reader features exclusive 3 Green Lights (3GL) for superior good read feedback. The 'Green Spot' technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. - Developed with the user in mind
The scaners have multi-interface capabilities built in featuring the popular interfaces. The Datalogic provides user-friendly features, that simplify the startup procedure, even for inexperienced users.
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black, yellow |
| Interface Type | RS-232 |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | Linear imager |
| Scan Mode | Single-pass |
| Skew (Degrees) | 70 |
| Pitch (Degrees) | 75 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, IATA, ISBN, GS1 DataBar, Code 32, Code 39 Full ASCII, Codabar, Code 128, Code 11, Interleaved 2 of 5, Codablock F, Plessey, Standard 2 of 5, MSI, UPC/EAN supplementals, Datalogic 2 of 5, Code 39 CIP, Code 4, Code 5 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL) |
| Wireless Connectivity | RF |
| Cables Included | 1 x serial cable - external |
| Compliant Standards | RoHS, IP65, IEC 62471 |
| Power Device | Power adapter |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
Features - Datalogic - PD9130-K2
More Details
Product Code
V383743
EAN Code
-
Manufacturer
Datalogic
