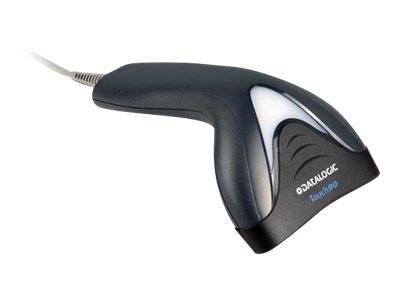

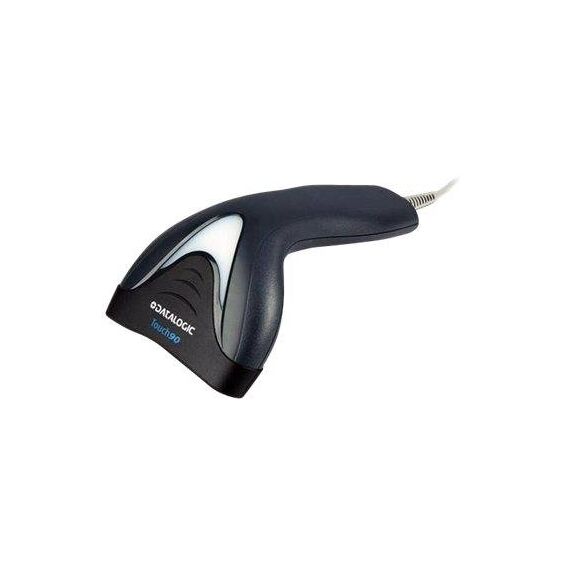

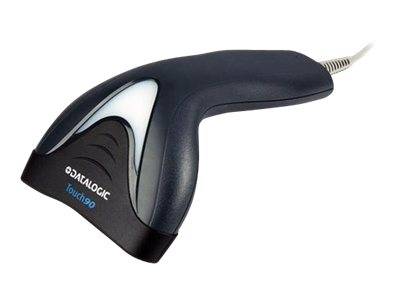

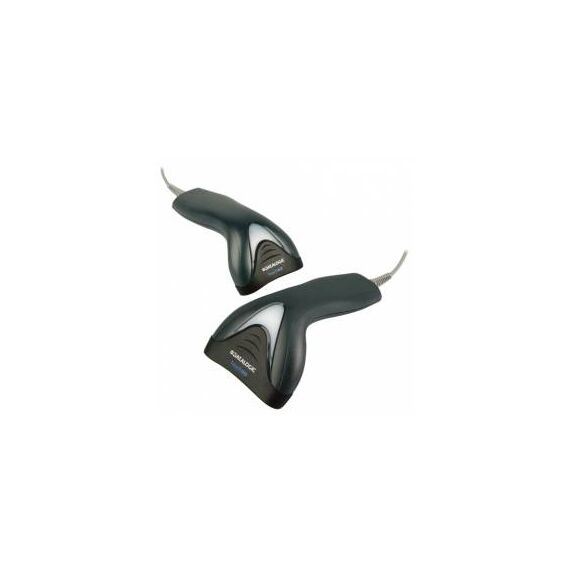

Datalogic Touch TD1100 90 Light / Barcode scanner / handheld / 256 scan / sec / decoded / USB / SCANNER ONLY,  Cables sold separately. Color: Black | TD1120-BK-90

DatalogicADC-TD1120BK90K1-Point-of-Sale

Hover over an image to enlarge

69.17
(Including VAT)
100 item(s)
+
TD1120-BK-90
Product Code:V382150
EAN Code:5711045614798
Manufacturer:Datalogic ADC

Free Store
Pickup

Delivery within 2-4
business days

2 Years Warranty

Datalogic Touch TD1100 90 Light / Barcode scanner / handheld / 256 scan / sec / decoded / USB / SCANNER ONLY,  Cables sold separately. Color: Black | TD1120-BK-90

Description

The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m drop resistance, which is typically included in a higher range of products.An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items. Datalogic's Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Special Features

  • Wide reading windows
  • Excellent reading performance
  • Supports GS1 DataBar linear codes
  • Compact and innovative 'read-thru' holder for hands-free reading capability

Product Specification

Type Barcode scanner - handheld
Colour Black
Interface Type USB
Minimum Bar Width 4 mil
Scan Field Width 15 cm
Scan Element Type Visible laser diode
Light Source Wave Length 640 nm
Scan Mode Single-pass
Scan Speed 256 scan / sec
Skew (Degrees) 70
Pitch (Degrees) 65
Print Contrast Signal (PCS) 25%
Decode Capability Code 39, GS1 DataBar, EAN/JAN-13 , GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator
Features ESD (electrostatic discharge) safe
Compliant Standards RoHS, IP30
Electric Current Required 20 mA (standby), 100 mA (typical)
Software Included Drivers & Utilities, Datalogic Aladdin, OPOS/JavaPOS Drivers
Width 6.7 cm
Depth 10.4 cm
Height 17 cm
Weight 153 g
Service & Support 5 years warranty
Service & Support Details Limited warranty - 5 years
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 95% (non-condensing)
Drop Specification 1.5 m to concrete

More Details

Product Code:
V382150
EAN Code:
5711045614798
Manufacturer:
Datalogic ADC
