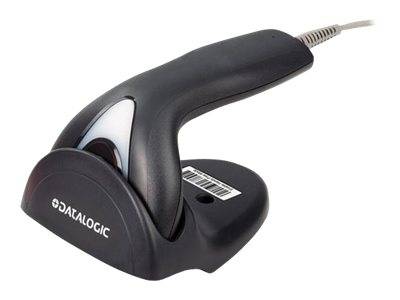

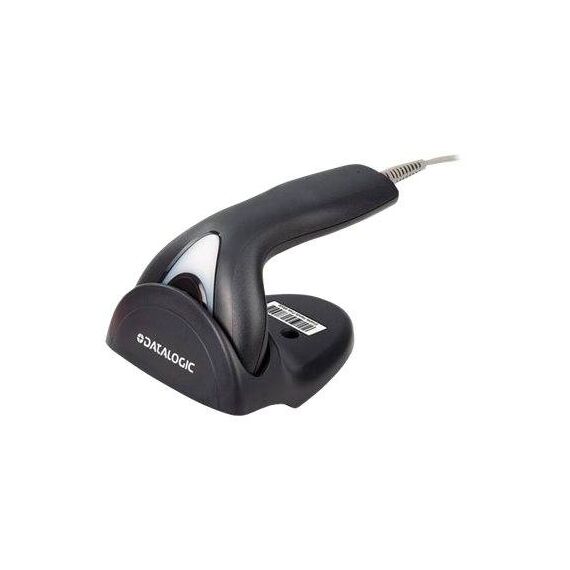

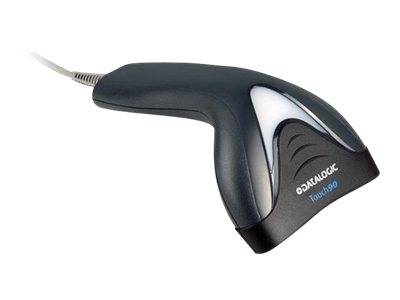

Datalogic Touch TD1100 90 Light / Barcode scanner / handheld / 256 scan / sec / decoded / USB / (INCLUDES SCANNER, HOLDER AND 90A052044 CABLE.) | TD1120-BK-90K1
Datalogic Touch TD1100 90 Light / Barcode scanner / handheld / 256 scan / sec / decoded / USB | TD1120-BK-90K1
Description
The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m drop resistance, which is typically included in a higher range of products.An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items. Datalogic's Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Datalogic Touch TD1100 90 Light / Barcode scanner | TD1120-BK-90K1
Special Features
- Wide reading windows
- Excellent reading performance
- Supports GS1 DataBar linear codes
- Compact and innovative 'read-thru' holder for hands-free reading capability
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | USB |
| Minimum Bar Width | 4 mil |
| Scan Field Width | 15 cm |
| Scan Element Type | Visible laser diode |
| Light Source Wave Length | 640 nm |
| Scan Mode | Single-pass |
| Scan Speed | 256 scan / sec |
| Skew (Degrees) | 70 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 39, GS1 DataBar, EAN/JAN-13, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe |
| Interfaces | 1 x USB - Type A |
| Included Accessories | Holder |
| Cables Included | 1 x USB cable - 1.8 m |
| Compliant Standards | RoHS, IP30 |
| Electric Current Required | 20 mA (standby), 100 mA (typical) |
| Software Included | Drivers & Utilities, Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 6.7 cm |
| Depth | 10.4 cm |
| Height | 17 cm |
| Weight | 153 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
