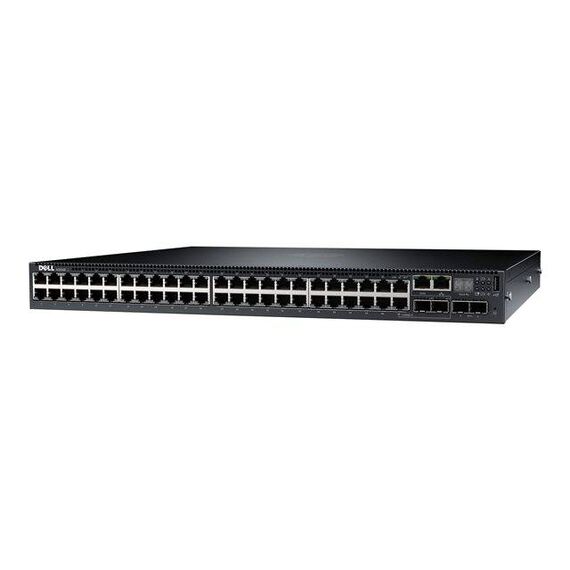

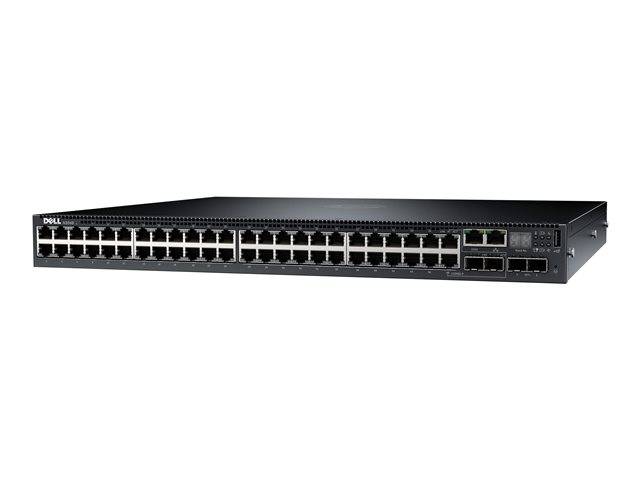

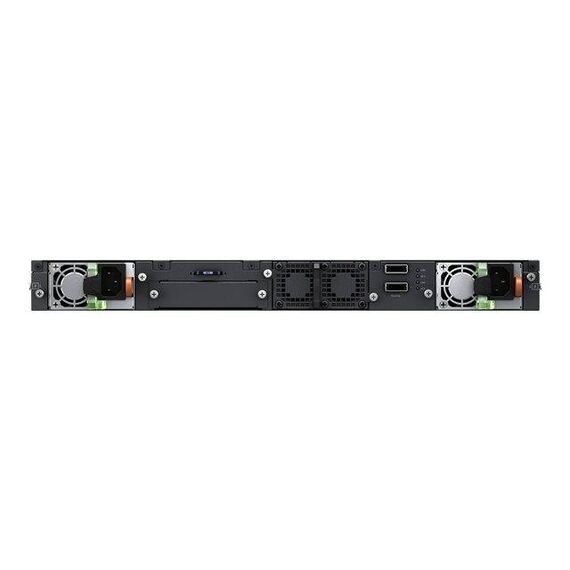

Dell Networking N3048 / Switch / L3 / Managed / 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP / rack-mountable | 210-ABOG
Dell Networking N3048 / Switch / L3 / Managed / 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP / rack-mountable | 210-ABOG
Description N-series is a family of energy-efficient and cost-effective 1GbE and 10GbE switches designed for modernizing and scaling network infrastructure. The Dell Networking N3000 series offers high-availability GbE switches for layer 3 access or aggregation. Special Features
Product features
|
Product Specification
Device Type | Switch - 48 ports - L3 - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x combo Gigabit SFP |
Performance | Switching fabric bandwidth: 260 Gbps ¦ Forwarding performance: 193 Mbps ¦ Stacking bandwidth: 84 Gbps |
Capacity | MAC addresses: 16384 ¦ Static routes: 1024 ¦ OSPF routes: 8160 ¦ RIP routes: 512 ¦ Virtual interfaces (VLANs): 128 ¦ IPv4 routes (Multicast): 1536 ¦ IPv6 routes (Multicast): 512 ¦ ARP entries: 6144 ¦ NDP entries: 400 ¦ ACL entries: 100 ¦ ACL rules: 4096 |
MAC Address Table Size | 16K entries |
Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, PIM-DM, IGMPv3, OSPFv3, MLDv2, MLD |
Remote Management Protocol | SNMP 2, SNMP, RMON, HTTP, SSH |
Encryption Algorithm | MD5, AES, SSL, TLS |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Flow control, Layer 3 switching, Layer 2 switching, MDI/MDI-X switch, auto-negotiation, load balancing, VLAN support, port mirroring, stackable, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), temperature sensor, port forwarding, Cable Diagnostics Function, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, dual firmware images, Network Access Control (NAC), tagged VLAN, Generic VLAN Registration Protocol (GVRP) |
Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az |
RAM | 1 GB |
Flash Memory | 256 MB |
Interfaces | 48 x Gigabit LAN - RJ-45 ¦ 2 x 10Gbit LAN - SFP+ ¦ 2 x Gigabit LAN - SFP ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A ¦ 2 x network stack device |
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Power Device | Internal power supply - hot-plug |
Installed Qty | 1 (installed) / 2 (max) |
Power Redundancy | Optional |
Power Provided | 200 Watt |
Power Consumption Operational | 74.8 Watt |
Width | 43.4 cm |
Depth | 40.7 cm |
Height | 4.35 cm |
Weight | 6.3 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 0 - 95% |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 65 °C |
Humidity Range Storage | 0 - 85% |
