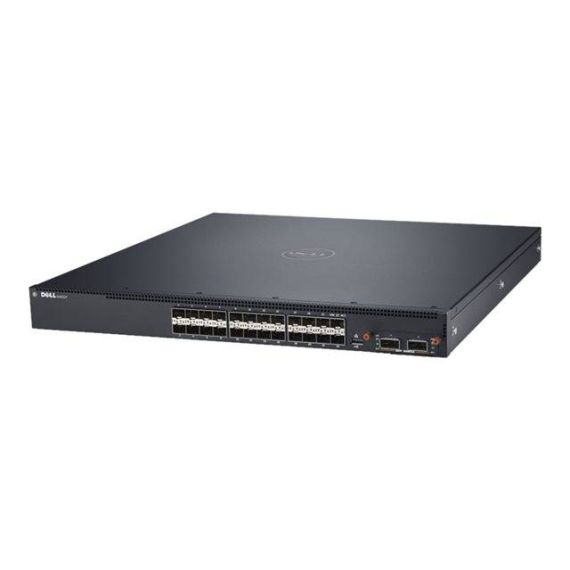

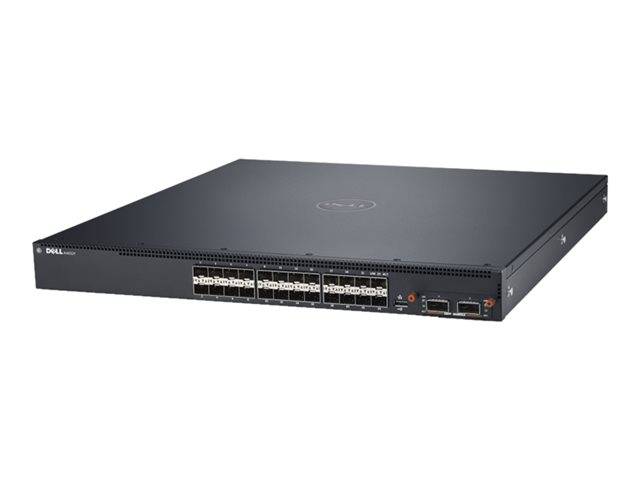

Dell Networking N4032F / Switch / L3 / Managed / 24 x 10 Gigabit SFP+ / rack-mountable | 210-ABVT
Dell Networking N4032F / Switch / L3 / Managed / 24 x 10 Gigabit SFP+ / rack-mountable | 210-ABVT
Description N-Series is a family of energy-efficient and cost-effective 1GbE and 10GbE switches designed for modernizing and scaling network infrastructure. The N4000 Series allows you to apply 10/40GbE wire-speed flexibility to your existing campus network with high-performance, non-blocking switches. Special Features
Product features
|
Product Specification
Device Type | Switch - 24 ports - L3 - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | 10 Gigabit Ethernet |
Ports | 24 x 10 Gigabit SFP+ |
Performance | Switching fabric bandwidth: 640 Gbps ¦ Forwarding performance: 476 Mpps |
Capacity | MAC addresses: 131072 ¦ IPv4 routes (static): 1024 ¦ IPv6 routes (static): 1024 ¦ IPv4 routes (dynamic): 8160 ¦ IPv6 routes (dynamic): 4096 ¦ Maximum member ports per LAG: 8 ¦ Maximum dynamic ports per switch stack: 144 ¦ LAG groups: 128 ¦ Priority queues per port: 8 ¦ OSPF routes: 8160 ¦ RIP routes: 512 ¦ ECMP next hops per route: 4 ¦ ECMP groups: 1024 ¦ VLAN routing interfaces: 128 ¦ VLANs supported: 4094 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 256 ¦ ARP entries: 6144 ¦ NDP entries: 400 ¦ ACL: 100 ¦ Maximum rules per ACL: 1023 ¦ Max ACL rules system-wide: 3072 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 2047 ¦ Maximum ACL rules per interface (IPv6) egress rules: 512 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum VLAN interfaces with ACLs applied: 24 |
MAC Address Table Size | 131072 entries |
Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MLDv2, MLD |
Remote Management Protocol | SNMP 2, SNMP, RMON, HTTP, SSH |
Encryption Algorithm | AES, SSL, TLS 1.0 |
Authentication Method | RADIUS, TACACS+, LDAP |
Features | Layer 3 switching, Layer 2 switching, MDI/MDI-X switch, auto-negotiation, port mirroring, stackable, Broadcast Storm Control, IP address filtering, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dual firmware images, redundant fans, MAC and IP-based ACLs support, Time-controlled ACLs support, Protocol-based VLANs support |
Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz |
RAM | 2 GB |
Flash Memory | 256 MB |
Interfaces | 24 x 10Gbit LAN - SFP+ ¦ 1 x Gigabit LAN - RJ-45 - management ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A |
Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
Power Device | Internal power supply - hot-plug |
Installed Qty | 2 (installed) / 2 (max) |
Power Redundancy | Yes |
Power Provided | 460 Watt |
Power Consumption Operational | 176 Watt |
Compliant Standards | FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, EAC, CCC Class A |
Width | 43.4 cm |
Depth | 46 cm |
Height | 43.4 cm |
Weight | 9.59 kg |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
