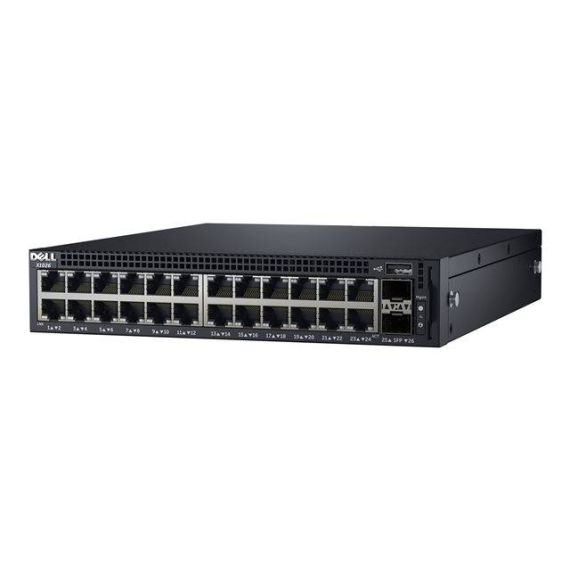

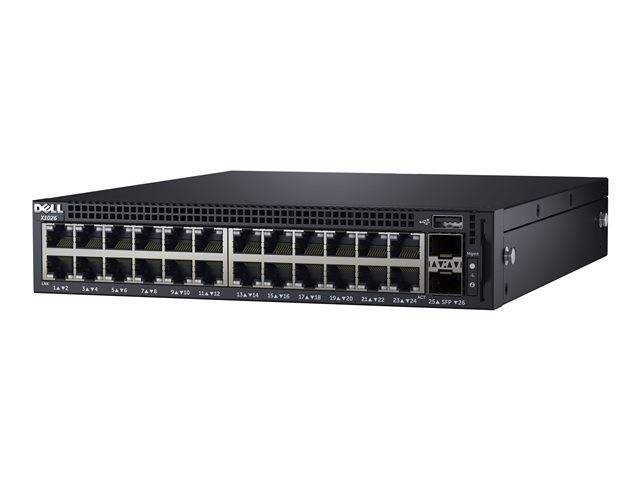

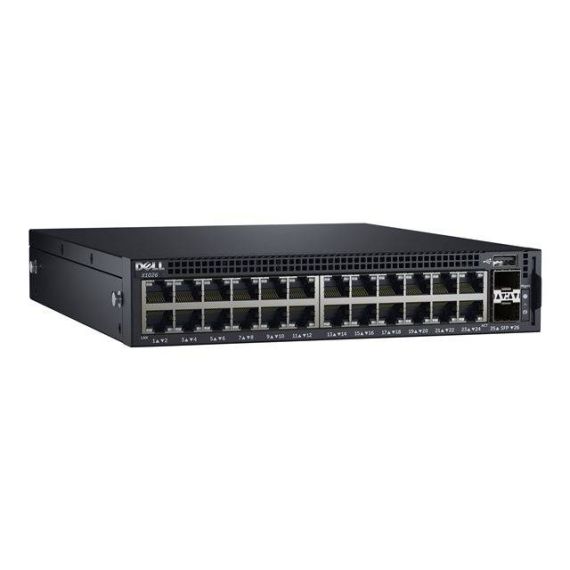

Dell Networking X1026 / Switch / L2+ / Managed / 24 x 10/100/1000 + 2 x Gigabit SFP | 210-AEIM
Dell Networking X1026 / Switch / L2+ / Managed / 24 x 10/100/1000 + 2 x Gigabit SFP | 210-AEIM
Description The intuitive graphical user interface (GUI) of Dell Networking X-series switches makes setup and management simple for network administrators. Based on extensive usability testing, the design of everything from navigation to menu structures and help tips is inspired by the way IT professionals think and work, making the interface a pleasure to use regularly or occasionally.Pick the right switch for your network. Choose from a broad selection of models with rich feature sets and a variety of port counts. Power over Ethernet (PoE) and PoE+ models provide additional deployment flexibility, allowing you to connect, auto-configure and power phones, cameras, compact switches and other network devices. Special Features
Product features
|
Product Specification
Device Type | Switch - 24 ports - L2+ - Managed |
Enclosure Type | 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 + 2 x Gigabit SFP |
Performance | Switching fabric bandwidth: 52 Gbps ¦ Forwarding performance: 38.7 Mpps |
Capacity | MAC addresses: 16000 ¦ LAG groups: 12 ¦ Priority queues per port: 4 ¦ Virtual interfaces (VLANs): 4096 ¦ Maximum member ports per LAG: 8 |
MAC Address Table Size | 16K entries |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI |
Authentication Method | RADIUS, TACACS+ |
Features | Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) |
Interfaces | 24 x 1000Base-T ¦ 2 x Gigabit LAN - SFP ¦ 1 x USB - Type A - management ¦ 1 x micro-USB - management |
Power Device | Internal power supply |
Power Provided | 40 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 21.5 Watt |
Width | 20.9 cm |
Depth | 25 cm |
Height | 41.25 cm |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
