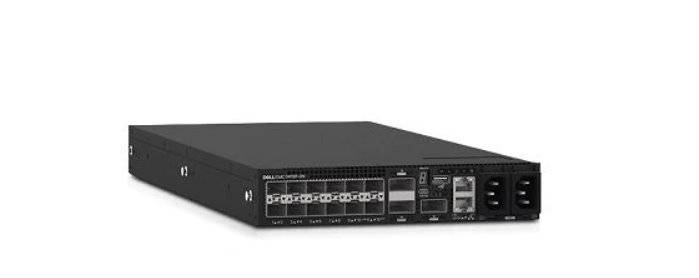

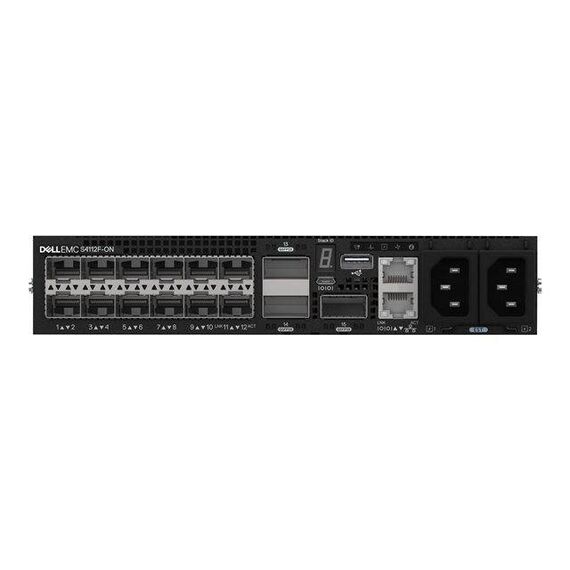

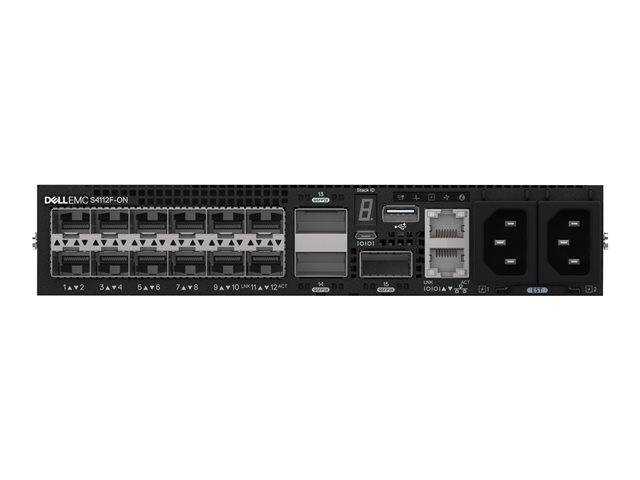

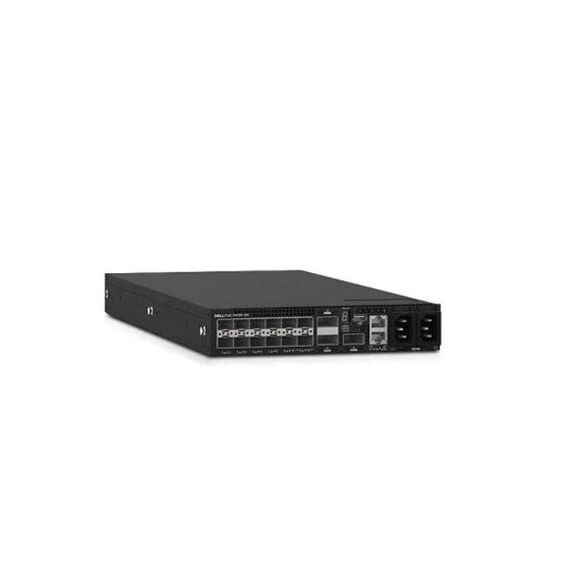

Dell EMC Networking S4112F / Switch / L3 / Managed / 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 / front to back airflow / rack-mountable / Dell Smart Value Flexi / with 1 Year Basic Onsite | 210-AOYR
210-AOYR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Dell EMC Networking S4112F / Switch / L3 / Managed / 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 / front to back airflow / rack-mountable / Dell Smart Value Flexi / with 1 Year Basic Onsite | 210-AOYR
Description
The S4100 switches comprise Dell EMC's disaggregated hardware and software data center networking solutions, providing superior uplinks, fiber channel connectivity and a broad range of functionality to meet the growing demands of today's data center environment. These innovative top-of-rack open networking switches offer optimal flexibility and cost-effectiveness for the enterprise and storage traffic environments.
Dell EMC Networking S4112F / Switch | 210-AOYR
Special Features
- Supports dynamic reconfiguration of unified ports
- High-density ToR switches
Product features
- Innovative data center architectural agility
Gain the flexibility to transform your data centers with high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center. - Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select open-standards-based switches. - Ready for software-defined networking
Deploy modern workloads and applications while providing an easy on-ramp to software-defined networking.
Product Specification
| Device Type | Switch - 12 ports - L3 - Managed |
| Bundled Services | 1 Year Basic Onsite |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 840 Gbps ¦ Throughput: 640 Mpps ¦ Latency: 800 ns |
| Capacity | ARP entries: 200000 ¦ IPv4 routes: 200000 ¦ IPv6 routes: 64000 ¦ IPv6 hosts: 130000 ¦ Multicast hosts: 8000 ¦ Links per group: 32 ¦ Link aggregation groups: 128 ¦ Layer 2 VLANs: 4000 ¦ MSTP instances: 32 ¦ ACL entries (ingress): 6000 ¦ ACL entries (egress): 1000 |
| MAC Address Table Size | 272000 entries |
| Routing Protocol | OSPF, BGP-4, OSPFv2, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2 |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, TACACS |
| Features | Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Dynamic VLAN Support (GVRP), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj |
| RAM | 4 GB |
| Interfaces | 12 x 10Gbit LAN SFP+ ¦ 3 x 100Gbit LAN QSFP28 ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x 10/100/1000 Base-T RJ-45 management |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 180 Watt |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, EN 55032:2015+A1:2007, FCC CFR47 Part 15 B 2009 Class A, EN 55024:1998+A1:2001+A2:2003 |
| Manufacturer Selling Program | Dell Smart Value Flexi |
| Width | 20.9 cm |
| Depth | 45 cm |
| Height | 4.125 cm |
| Weight | 3.76 kg |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Dell - 210-AOYR
More Details
Product Code
03:106616
EAN Code
5397184124581
Manufacturer
Dell
