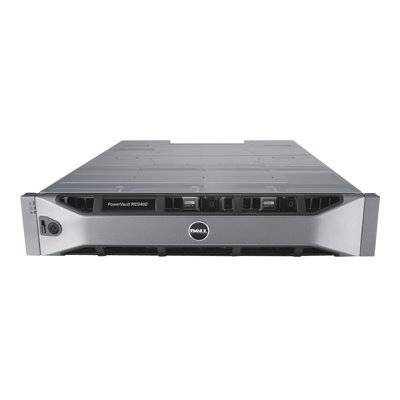

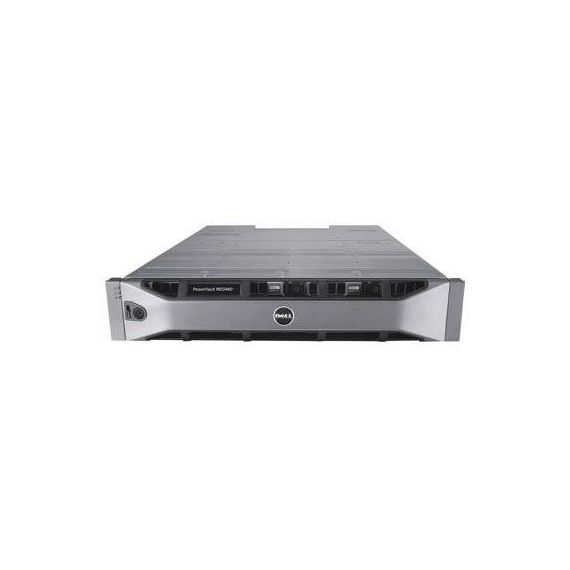

Dell PowerVault MD3420 / Hard drive array / 24 bays ( SAS-2 ) / SAS 12Gb/s (external) / rack-mountable / 2U / BTO | 3420-9018
3420-9018
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Dell PowerVault MD3420 / Hard drive array / 24 bays ( SAS-2 ) / SAS 12Gb/s (external) / rack-mountable / 2U / BTO | 3420-9018
|
Description Affordable PowerVault MD3 array series designed for maximum performance and capacity. Simplify storage affordably with Dell PowerVault MD3 serial-attached SCSI (SAS) arrays, ideal for entry-level storage consolidation. Learn more at Dell.com. The PowerVault MD3 SAS series has been designed with the entry-level to medium business customer in mind. The MD3 dense SAS array has a 4U form factor that supports more drives than ever before within the MD3 product line, allowing you to save space, power and cooling while maintaining its ease-of-management. |
Product Specification
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Enclosure Colour | Black |
| Built-in Devices | Led panel |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-2 |
| HDD Array External Interface | SAS 12Gb/s |
| Type | 2 x RAID |
| Interface Type | SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Cache / Buffer Size (Max) | 4 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type | No HDD |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Interfaces | 4 x SAS 12Gb/s ¦ 1 x SAS 6Gb/s ¦ 1 x USB ( management ) - mini-USB Type B ¦ 1 x USB - 4 pin USB Type A ¦ 1 x Ethernet 1000Base-T ( management ) - RJ-45 ¦ 1 x Ethernet - RJ-45 |
| Pricing Type | BTO |
| Included Accessories | Bezel |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 600 Watt |
| Width | 44.63 cm |
| Depth | 54.9 cm |
| Height | 8.68 cm |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Dell - 3420-9018
More Details
Product Code
091F779
EAN Code
5397063839018
Manufacturer
Dell
