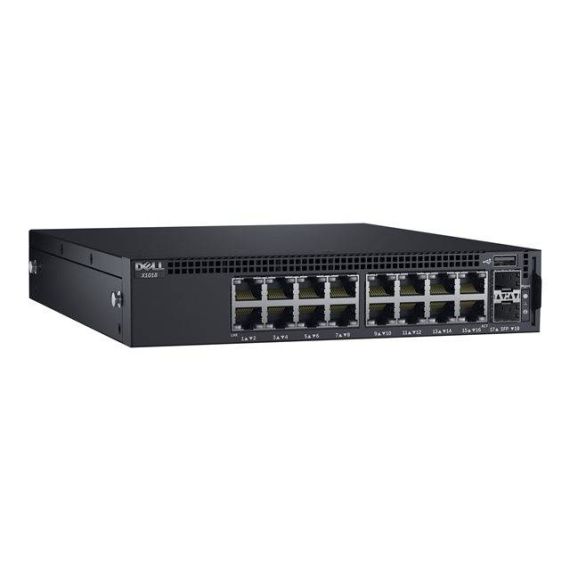

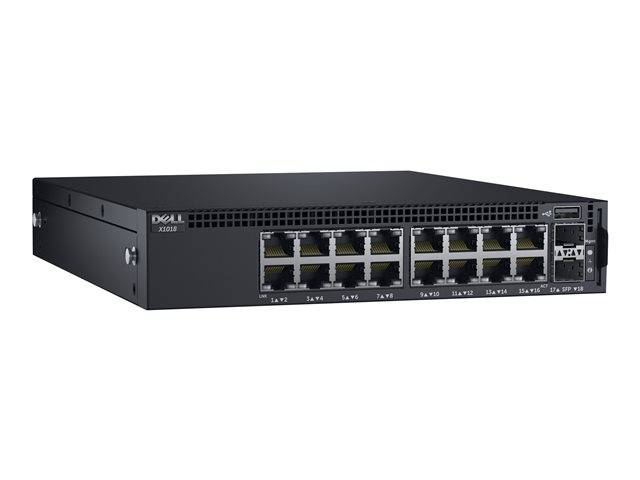

Dell Networking X1018 / Switch / L2+ / Managed / 16 x 10/100/1000 + 2 x Gigabit SFP | 210-AEIK
Dell Networking X1018 / Switch / L2+ / Managed / 16 x 10/100/1000 + 2 x Gigabit SFP | 210-AEIK
Description
Easily manage your office network with 1GbE and 10GbE switches that offer enterprise-class features and intuitive, GUI-based management.
Dell Networking X1018 / Switch | 210-AEIK
Special Features
- Elegant interface, effortless management
- Easy integration with your network
- Rapidly configure and tune network performance
- Optimize traffic with automation
- Gain visibility with a detailed dashboard
- Skip the learning curve
- Monitor and resolve issues with "actionable monitoring"
- Reduce configuration errors and eliminate extra steps with help from multi-port batch routines and port profiles for common devices
- Optimize cloud services and onsite network applications with security and traffic-priority features
Product features
- Elegant interface, effortless management
The intuitive graphical user interface (GUI) of Dell Networking X-Series switches makes setup and management simple for network administrators. Based on extensive usability testing, the design of everything from navigation to menu structures and help tips is inspired by the way IT professionals think and work, making the interface a pleasure to use regularly or occasionally. - Easy integration with your network
Pick the right switch for your network. Choose from a broad selection of models with rich feature sets and a variety of port counts. Power over Ethernet (PoE) and PoE+ models provide additional deployment flexibility, allowing you to connect, auto-configure and power phones, cameras, compact switches and other network devices.
Product Specification
Device Type | Switch - 16 ports - L2+ - Managed |
Enclosure Type | 1U |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 + 2 x Gigabit SFP |
Performance | Switching fabric bandwidth: 36 Gbps ¦ Forwarding performance: 26.8 Mpps |
Capacity | MAC addresses: 16000 ¦ LAG groups: 12 ¦ Priority queues per port: 4 ¦ Virtual interfaces (VLANs): 4096 ¦ Maximum member ports per LAG: 8 |
MAC Address Table Size | 16K entries |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI |
Authentication Method | RADIUS, TACACS+ |
Features | Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), SNMP trap, static routing, GARP VLAN Registration Protocol (GVRP), SNMP support, ARP inspection, Head of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP) |
Interfaces | 16 x 1000Base-T ¦ 2 x Gigabit LAN SFP ¦ 1 x USB Type A management ¦ 1 x micro-USB output management |
Power Device | Internal power supply |
Power Provided | 40 Watt |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 21.5 Watt |
Width | 20.9 cm |
Depth | 25 cm |
Height | 41.25 cm |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
