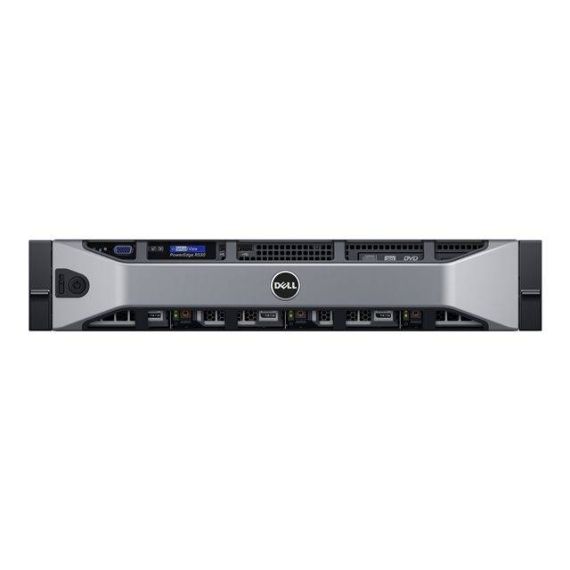

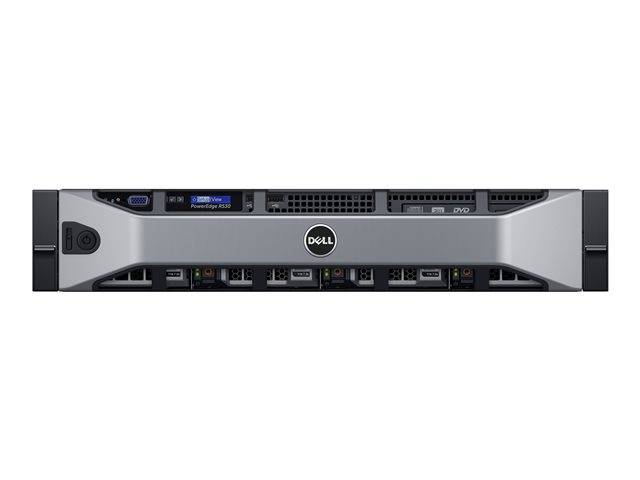

Dell PowerEdge R530 / Server / rack-mountable / Xeon E5-2603V4 / 1.7GHz / RAM 8GB / SAS / hot-swap 3.5" / HDD 1TB / DVD-Writer / Matrox G200 / GigE / no OS | R530-0671
Dell PowerEdge R530 / Server / rack-mountable / Xeon E5-2603V4 / 1.7GHz / RAM 8GB / SAS / hot-swap 3.5" / HDD 1TB / DVD-Writer / Matrox G200 / GigE / no OS | R530-0671
Description Deliver balanced performance and midrange scalability with a powerful 2S/2U rack server.Designed for data centers needing an affordable, virtualization-ready, 2-socket rack server, the R530 is an excellent platform for a wide range of common business applications, including: Mail and messaging; File and print; Workgroup collaboration; Web serving, Video streaming.The R530 is also highly attractive as a dedicated development or backup server.Adapt to changing workload conditions with an expandable platform ready for virtualization and high-availability clustering. The R530 easily accommodates data growth with support for up to eight 3.5" hard drives and a range of RAID options for data protection and optimized performance. In addition, Dell's innovative Failsafe Hypervisor provides hypervisor redundancy, giving the R530 additional resiliency compared to single-point-of-failure implementations.Save time and reduce potential for error with simplified, intuitive systems management.Speed time to production and drive better ROI by automating deployment, management and updating with the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller.Control data center availability more effectively by monitoring and managing the health and availability of Dell PowerEdge servers anytime, anywhere through OpenManage Mobile and a handheld device.Harness your energy budget with energy-efficient processors, memory and power supplies. Fresh Air 2.0 configurations allow you to operate confidently at extended temperatures without the need for chilled air. Special Features
Product features
|
Product Specification
Type | Server |
Product Form Factor | Rack-mountable - 2U |
Built-in Devices | Status LCD |
Server Scalability | 2-way |
Front Accessible Bays Qty | 1 |
Hot-Swap Bays Qty | 8 |
CPU | Intel Xeon E5-2603V4 / 1.7 GHz |
Number of Cores | 6-core |
CPU Qty | 1 |
Max CPU Qty | 2 |
CPU Upgradability | Upgradable |
Chipset Type | Intel C610 |
Installed Size | L3 Cache - 15 MB |
Cache Per Processor | 15 MB |
Installed Size | 8 GB / 384 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 2400 MHz |
Form Factor | DIMM 288-pin |
Features | Registered, dual rank |
Configuration Features | 1 x 8 GB |
Type | HDD - hot-swap |
Capacity | 1 x 1 TB |
Interface Type | SATA |
Spindle Speed | 7200 rpm |
Type | 1 x RAID |
Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name | Dell PERC H330 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
Type | DVD-Writer |
Monitor Type | None. |
Graphics Processor | Matrox G200 |
Video Memory | 16 MB |
Video Interfaces | VGA |
Ethernet Ports | 4 x Gigabit Ethernet |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | IPMI 2.0 |
Remote Management Controller | Integrated Dell Remote Access Controller 8 Express (iDRAC8) |
Bays | 1 (total) / 0 (free) x external 5.25" ¦ 8 (total) / 7 (free) x hot-swap 3.5" |
Slots | 2 (total) / 1 (free) x CPU ¦ 12 (total) / 11 (free) x DIMM 288-pin ¦ 1 PCIe x8 - half-length, low-profile ¦ 2 PCIe x16 - half-length, low-profile ¦ 1 PCIe x1 - half-length, low-profile ¦ 1 PCIe x4 - half-length, low-profile |
Interfaces | 4 x LAN (Gigabit Ethernet) ¦ 2 x VGA ( 1 front, 1 rear ) ¦ 3 x USB 2.0 ( 2 front, 1 rear ) ¦ 1 x serial ¦ 1 x management (NIC) ¦ 1 x USB 3.0 |
Pricing Type | BTO |
Device Type | Power supply |
Power Provided | 495 Watt |
OS Provided | No operating system |
Service & Support | Limited warranty - 3 years - response time: next business day |
Width | 48.24 cm |
Depth | 64.6 cm |
Height | 8.68 cm |
Weight | 14.2 kg |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 10 - 80% (non-condensing) |
