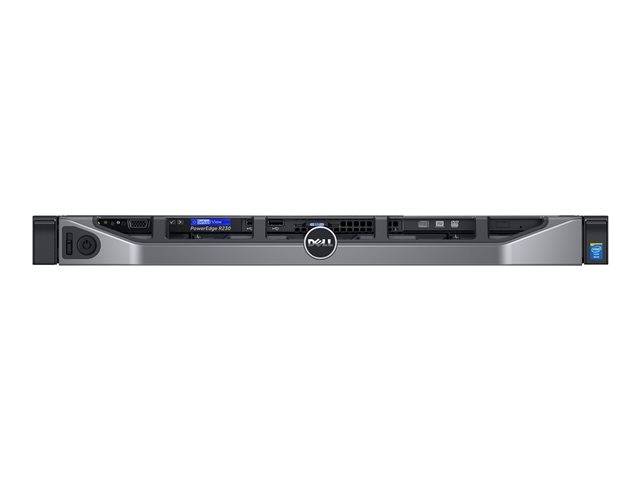

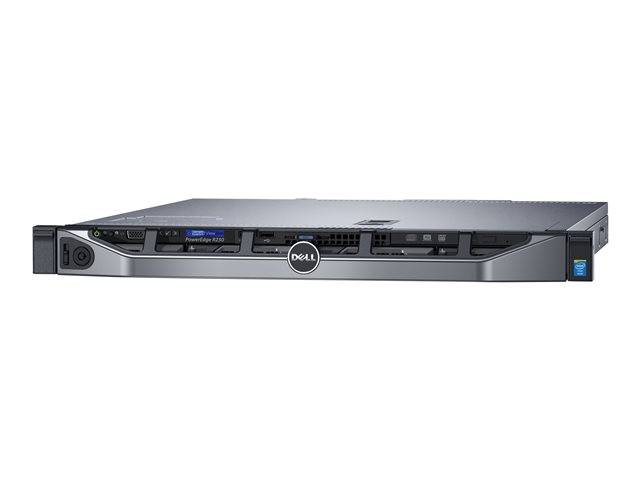

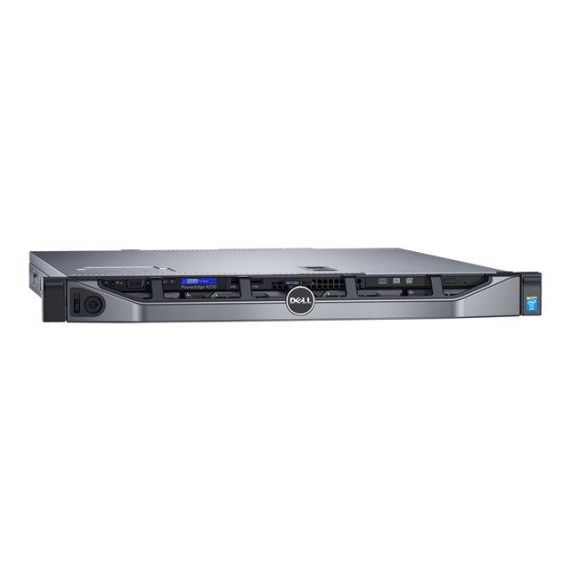

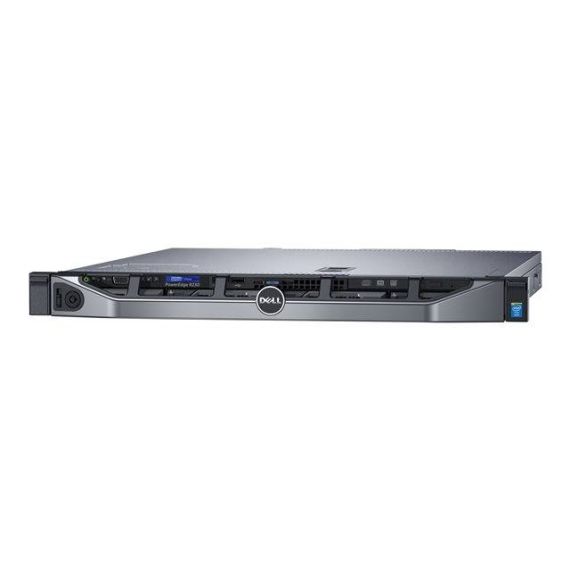

Dell PowerEdge R230 / Server / rack-mountable / Xeon E3-1220V6 / 3 GHz / RAM 8 GB / HDD 1 TB / DVD-Writer / Matrox G200 / GigE / no OS  | RNF7F

RNF7F
1,592.50
1,895.08 inc. VAT
Out of stock
Product Code03:177468 EAN Code5397064013257 ManufacturerDell
Find similar
Delivery
Payment options

Dell PowerEdge R230 / Server / rack-mountable / Xeon E3-1220V6 / 3 GHz / RAM 8 GB / HDD 1 TB / DVD-Writer / Matrox G200 / GigE / no OS  | RNF7F

Description

Consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server.Consolidate data from multiple laptops or desktops onto a single server with up to 4 x internal 3.5" cabled or hot-plug HDD. Ensure fast response times with the latest quad core Intel Xeon E3-1200 v6 product family, as well as flexible dual core processor options including Intel Pentium, Intel Core i3, or Intel Celeron. Adapt to changing workload conditions with a virtualization-ready server supporting Citrix XenServer, Microsoft Windows Server with Hyper-V, VMware vSphere ESXi, and Red Hat Enterprise Virtualization.Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and enhanced DDR4 memory, offering 50% faster clock speed than previous-generation DDR3 which is 12.5% faster than the initial 2133 MT/s implementation of DDR4.2 Boost data throughput with 2 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0. Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller compared to the previous-generation PowerEdge R220 equipped with PERC8.Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions. Easily monitor system health and behavior with a simple, intuitive Dell OpenManage Essentials console. Save IT administrator time by automating firmware updates - up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.

Special Features

  • More processing power
  • High-capacity, low-power memory
  • Scalable, efficient local storage
  • Simplified, intelligent management
  • Energy efficiency

Product features

  • More processing power
    Powerful processors boost virtualized environments and performance-hungry business applications.
  • High-capacity, low-power memory
    Improved memory accelerates workloads, like enterprise resource planning and database applications.
  • Scalable, efficient local storage
    Wide range of in-server storage possibilities enables all-flash configurations, in-box hybrid tiered solutions, low-cost dense capacity platforms, and matching server-based storage with application requirements for optimal performance and value.
  • Simplified, intelligent management
    Dell tools accelerate time to production with enhanced local access, mobile devices for secure monitoring of the data center from your handheld device and automated processes to save time and costs, spent on daily tasks.
  • Energy efficiency
    Innovative power and cooling technologies such as Dell Fresh Air 2.0 allow data centers to run at constant temperatures, reducing cooling demands and enabling significant operational cost savings.

Product Specification

Type Server
Product Form Factor Rack-mountable - 1U
Server Scalability 1-way
Internal Bays Qty 4
Colour Black
CPU Intel Xeon E3-1220V6 / 3 GHz
Max Turbo Speed 3.5 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
Processor Main Features Intel Turbo Boost Technology 2
Chipset Type Intel C236
Installed Size 8 MB
Cache Per Processor 8 MB
Installed Size 8 GB / 64 GB (max)
Technology DDR4 SDRAM
Effective Memory Speed 2400 MHz
Rated Memory Speed 2400 MHz
Form Factor DIMM 288-pin
Features Registered, single rank
Configuration Features 1 x 8 GB
Type HDD
Capacity 1 x 1 TB
Interface Type SATA
Spindle Speed 7200 rpm
Type 1 x RAID
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name Dell PERC H330
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Type DVD-Writer
Monitor Type None.
Graphics Processor Matrox G200
Video Memory 16 MB
Video Interfaces VGA
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Broadcom BCM5720
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Dell Remote Access Controller 8 (iDRAC8)
Bays 4 (total) / 3 (free) x internal 3.5" ¦ 1 (total) / 0 (free) x 5.25" Slim Line
Slots 1 (total) / 0 (free) x CPU ¦ 2 PCIe 3.0 ¦ 4 (total) / 3 (free) x DIMM 288-pin
Interfaces 2 x VGA (1 front, 1 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 2 x USB 2.0 (2 in front) ¦ 2 x USB 3.0 ¦ 1 x management (NIC)
Included Accessories PCI Express riser card, bezel
Pricing Type Build To Plan (BTP)
Manufacturer Selling Program Dell Smart Value
Device Type Power supply
Installed Qty 2
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 250 Watt
80 PLUS Certification 80 PLUS Bronze
OS Provided No operating system
Service & Support Limited warranty - 1 year - response time: next business day
Width 43.415 cm
Depth 48.238 cm
Height 4.28 cm
Weight 6.06 kg
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Humidity Range Operating 10 - 80%

Features - Dell - RNF7F

More Details
Product Code
03:177468
EAN Code
5397064013257
Manufacturer
Dell
