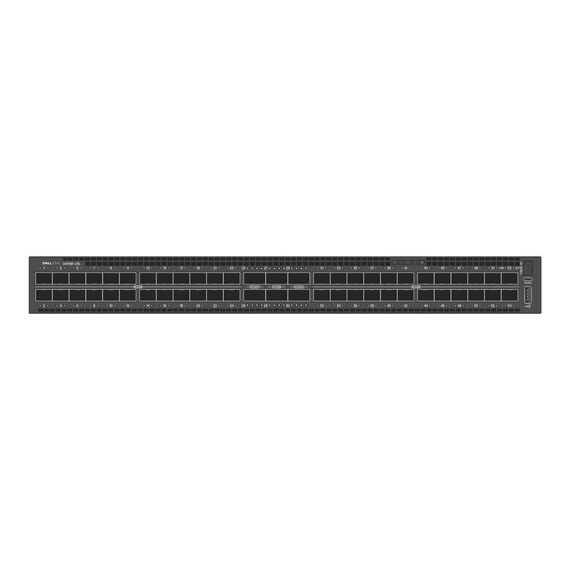

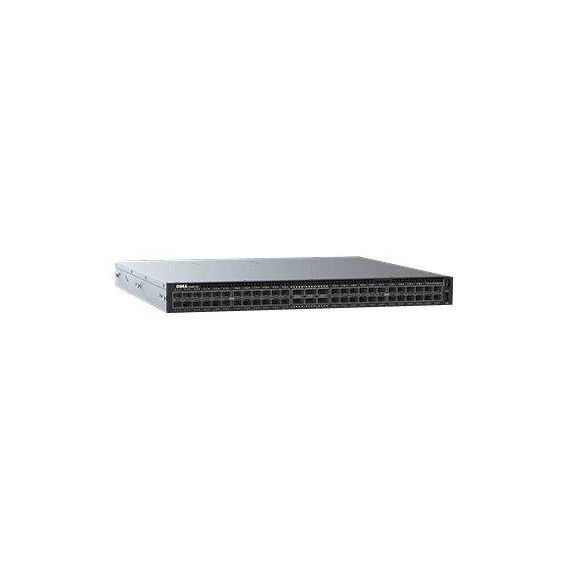

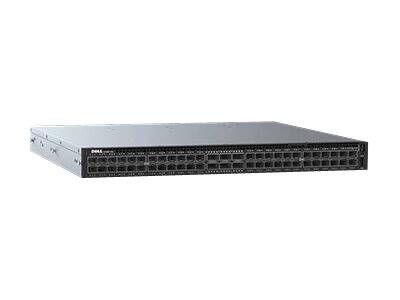

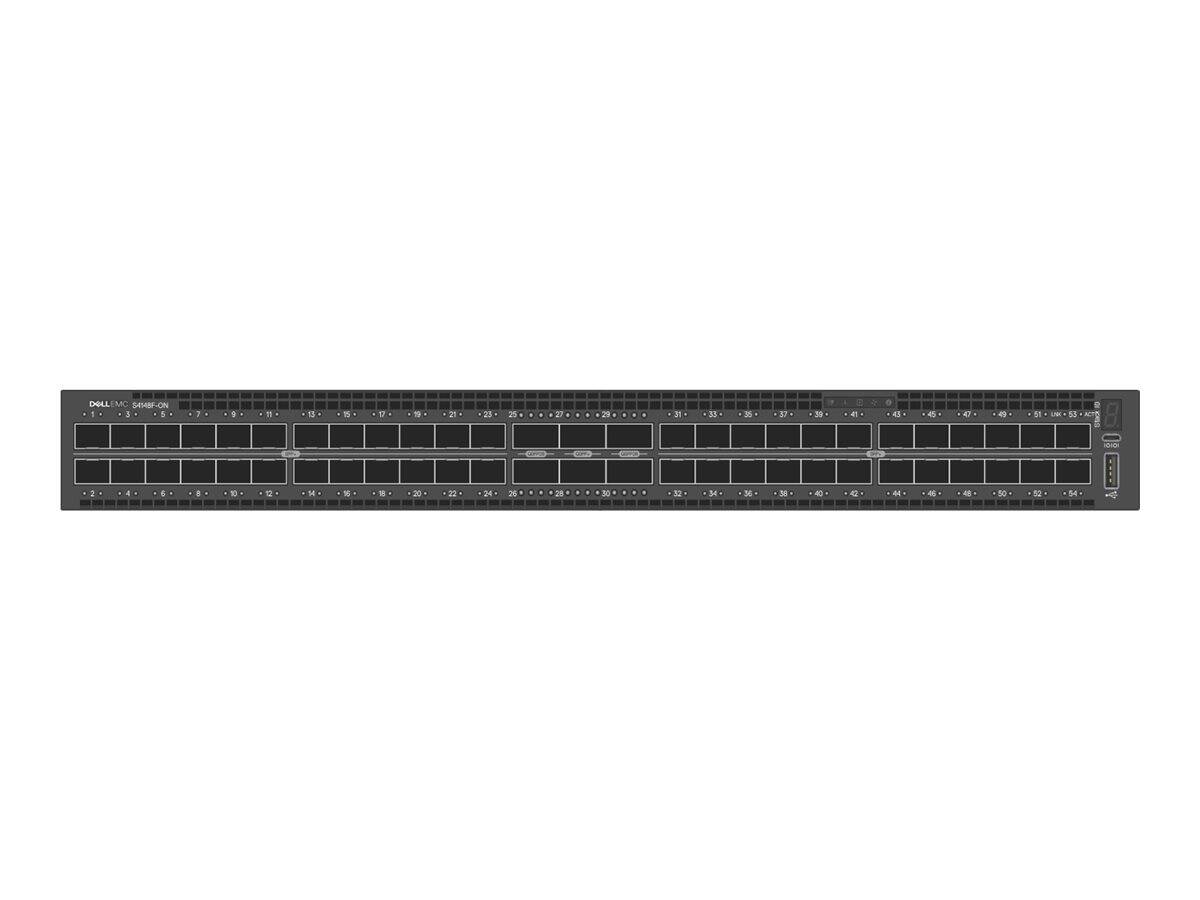

Dell EMC Networking S4148F-ON - Switch - L3 - Managed - 48 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 + 2 x 40 Gigabit QSFP+ - front to back airflow - rack-mountable - with 1 year Return to Depot | 210-ALSI
210-ALSI
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- 960 Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4128F-ON
- VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
- Converged Network support with DCB

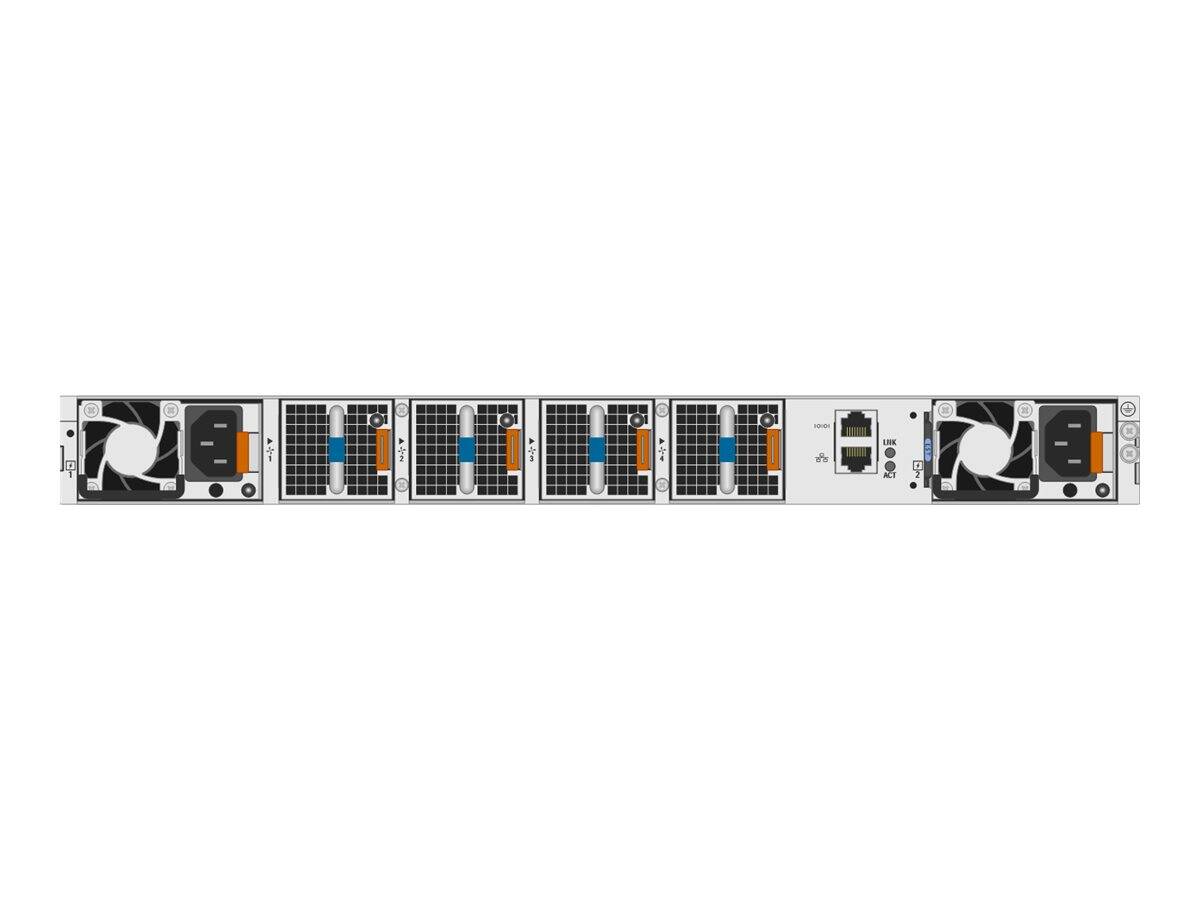

- IO panel to PSU airflow or PSU to IO panel airflow
- Redundant, hot-swappable power supplies and fans
Product Specification
| Device Type | Switch - 48 ports - L3 - Managed |
| Bundled Services | 1 year Return to Depot |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 + 2 x 40 Gigabit QSFP+ |
| Performance | Switching capacity: 1.76 Tbps ¦ Throughput: 1320 Mpps |
| Capacity | MAC addresses: 160000 ¦ ARP entries: 128000 ¦ IPv4 routes: 128000 ¦ IPv6 routes: 64000 ¦ IPv6 hosts: 64000 ¦ Multicast hosts: 8000 ¦ Links per group: 16 ¦ Link aggregation groups: 128 ¦ Layer 2 VLANs: 4000 ¦ MSTP instances: 64 |
| MAC Address Table Size | 160000 entries |
| Routing Protocol | OSPF, BGP-4, OSPFv2, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2 |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, TACACS |
| Features | Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Dynamic VLAN Support (GVRP), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj |
| RAM | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10Gbit LAN SFP+ ¦ 2 x 40Gbit LAN QSFP+ ¦ 4 x 100Gbit LAN QSFP28 ¦ 1 x serial (RS-232) RJ-45 management |
| Power | |
| Power Device | External power adapter - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Provided | 370 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 370 Watt |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, EN 55032:2015+A1:2007, FCC CFR47 Part 15 B 2009 Class A, EN 55024:1998+A1:2001+A2:2003 |
| Dimensions & Weight | |
| Weight | 9.14 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
