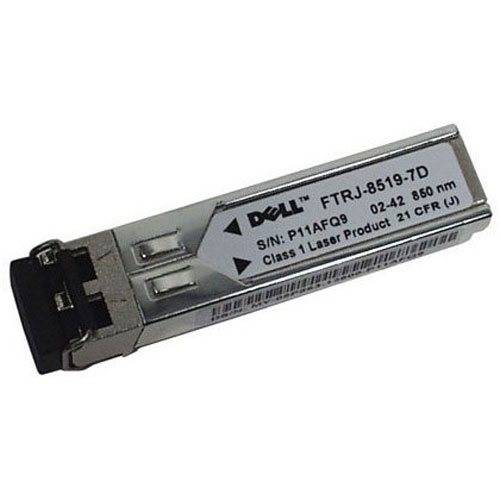

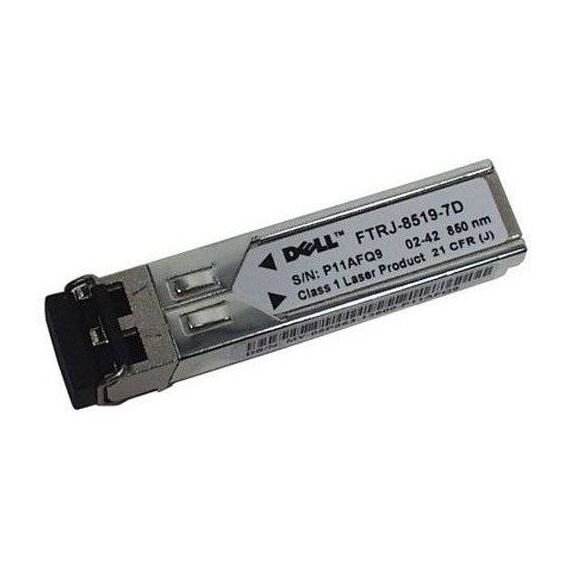

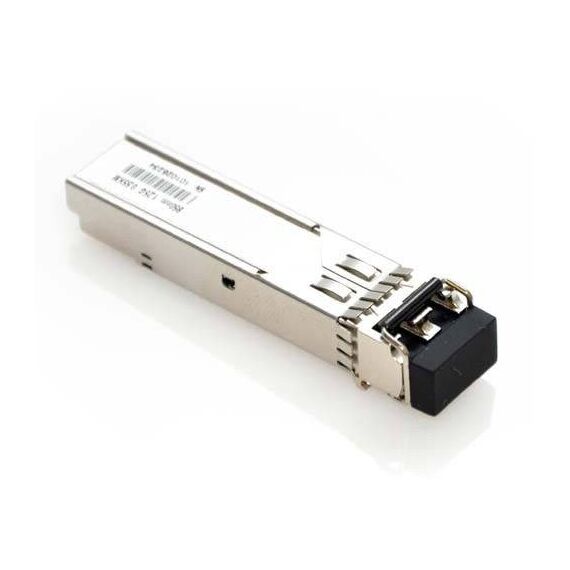

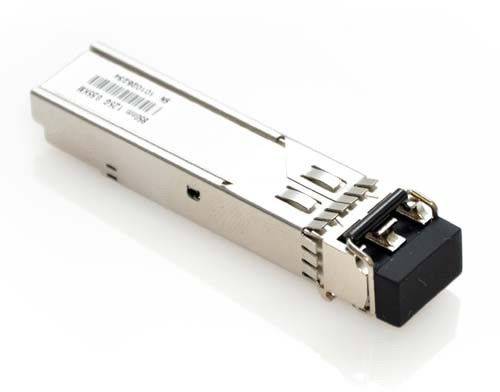

Dell / SFP (mini-GBIC) transceiver module / GigE / 1000Base-SX / LC multi-mode / up to 550 m / 850 nm / for Force10 / Networking C7004, C7008, S5000 / PowerConnect 70XX, 81XX / PowerEdge VRTX | 407-10933
Dell / SFP (mini-GBIC) transceiver module / GigE / 1000Base-SX / LC multi-mode / up to 550 m / 850 nm / for Force10 / Networking C7004, C7008, S5000 / PowerConnect 70XX, 81XX / PowerEdge VRTX | 407-10933
Description
The Dell SFP transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP footprint features a duplex LC connector. The Dell networking 1000Base-SX SFP transceiver provides 1GbE connectivity up to 550 m. Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Product Specification
Device Type | SFP (mini-GBIC) transceiver module |
Form Factor | Plug-in module |
Connectivity Technology | Wired |
Cabling Type | 1000Base-SX |
Data Link Protocol | GigE |
Data Transfer Rate | 1 Gbps |
Optical Wave Length | 850 nm |
Max Transfer Distance | 550 m |
Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
Designed For | Dell Force10 MXL blade, S2410 Data Center Switch, S25N Data Center Switch, S4810 High-Performance, S4820T, S50 High Performance Data Center Switch, S55, S60, Z9000 ¦ Dell Force10 ExaScale E-Series E1200i, E600i ¦ Dell Force10 TeraScale E-Series E1200i, E300, E600i ¦ Dell Networking C7004, C7008, S5000 ¦ Dell PowerConnect 2824, 2848, 5524, 5524P, 5548, 5548P, 6224, 6224F, 6224P, 6248, 6248P, 7024, 7024F, 7024P, 7048, 7048P, 7048R, 7048RA, 8132, 8164 ¦ Dell PowerEdge M1000E, VRTX |
