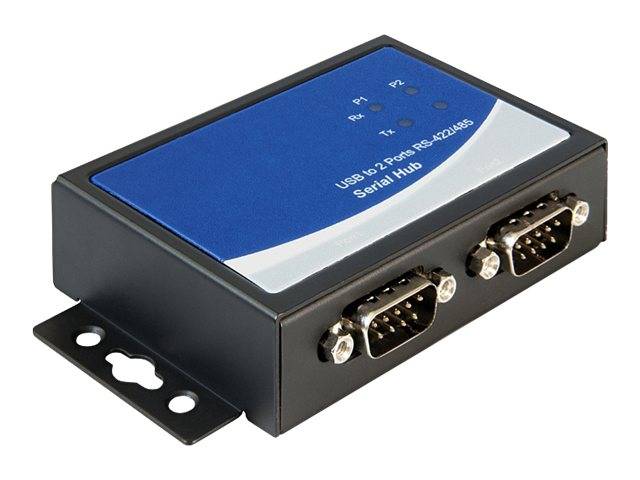

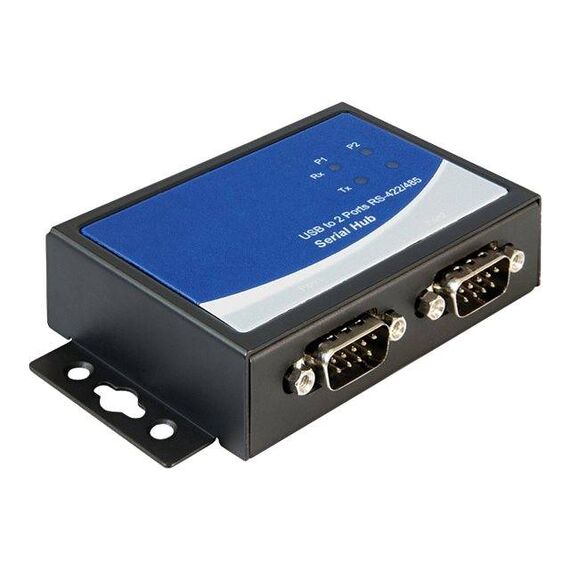

DeLock Adapter USB 2.0 to 2 x serial RS-422/485 / Serial adapter / USB 2.0 / RS-422/485 x 2 | 87586
Please sign in so that we can notify you about a reply
Special Features
- USB 2.0-B female to 4 x 9 pin serial RS-422/485 male
- 4 x DIP switch: RS-422/485 operation setting
- Internal pin header: jumper switch terminator on/off
- Serial male connector with screw nuts
- Data transfer rate up to 1 Mbps
- LED for indication of TxD/RxD activity
- Automatical recognition and switching between RS-422 and RS-485
- ±15 KV ESD protection on all signal pins
- Wall mounting integrated in the housing
Product Specification
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Networking | Networking |
| Ports | RS-422/485 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 1 Mbps |
| Status Indicators | Link/activity |
| Features | Wall mountable, built-in DIP switch |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x RS-422/485 - 9 pin D-Sub (DB-9) |
| Connections | 1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 x jumpers |
| Cables Included | 1 x USB cable |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows XP, Linux 2.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.5 cm |
| Depth | 10.7 cm |
| Height | 2.3 cm |
Features - DeLOCK - 87586
More Details
Product Code
04:116840
EAN Code
4043619875863
Manufacturer
DeLOCK
