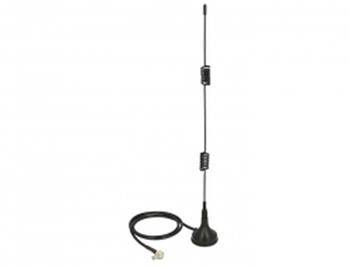

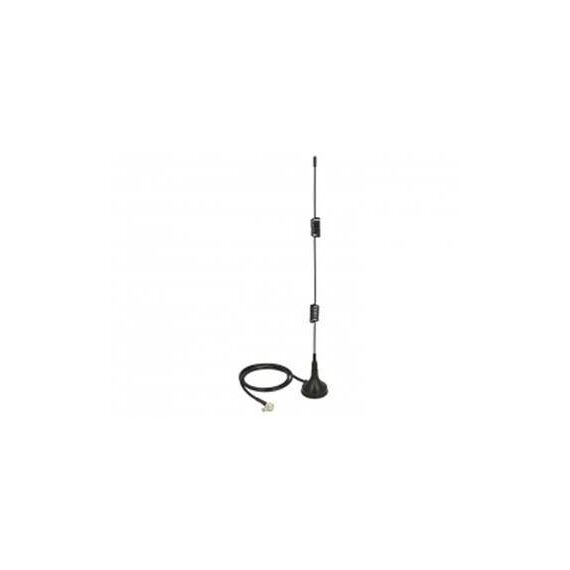

DeLOCK LTE Antenna / Antenna / 3 dBi / omni-directional / indoor / black | 12480
Please sign in so that we can notify you about a reply
DeLOCK LTE Antenna / Antenna / 3 dBi / omni-directional / indoor / black | 12480
|
Description This Delock LTE antenna allows the use of different LTE bands indoors. It is completely Bluetooth, GSM, UMTS, WLAN 2.4 GHz, Z-Wave and ZigBee compatible. |
Product Specification
| Product Type | Antenna |
| Width | 1 cm |
| Depth | 1 cm |
| Height | 26.1 cm |
| Cable Length | 50 cm |
| Enclosure Colour | Black |
| Intended For | Cellular, Wi-Fi, Bluetooth, Smart Home |
| Aerial Placing / Mounting | Indoor |
| Compatibility | UMTS, GSM, LTE, Bluetooth, WLAN 2.4 GHz, ZigBee, Z-Wave |
| Frequency Range | 698 - 2700 MHz |
| Gain | 3 dBi |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 3.5:1 |
| Horizontal Beamwidth | 360° |
| Impedance | 50 Ohm |
| Connector Provided | 1 x TS-9 plug |
| Features | Magnetic base, vertical polarisation |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
Features - DeLOCK - 12480
More Details
Product Code
04:210374
EAN Code
4043619124800
Manufacturer
DeLOCK
